Amphenol RF 031-336 BNC Connector Plug Equivalent & Substitute Parts

Part Overview

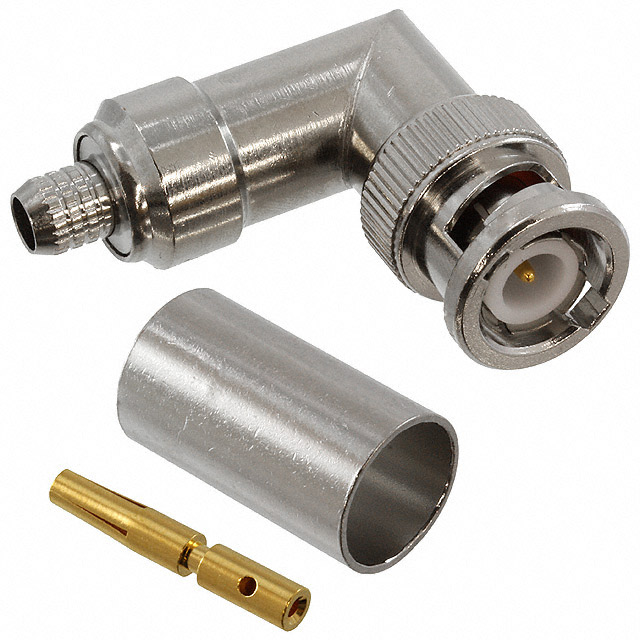

The Amphenol RF 031-336 is a BNC connector plug designed for 50-ohm coaxial cable applications. This right-angle crimp connector features a male pin configuration with bayonet lock fastening and operates across a frequency range up to 4 GHz. The part is classified as "Not For New Designs," indicating it has been superseded in the manufacturer's product line. Identification of equivalent and substitute parts is necessary for applications requiring continued support, legacy system maintenance, or component sourcing when the primary part becomes unavailable.

Substiute Parts

031-336

Amphenol RFIn Stock: 677031-336 Datasheet

Current PartRFQ

031-336-RFX

Amphenol RFIn Stock: 934031-336-RFX Datasheet

DirectRFQ

5225974-5

TE Connectivity AMP ConnectorsIn Stock: 9235225974-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Amphenol RF 031-336 BNC connector plug is determined by strict alignment of the following core parameters:

Primary Substitution Criteria:

• Connector style (BNC)
• Connector type (Plug, Male Pin)
• Impedance (50 Ohms)
• Mounting type (Free Hanging, Right Angle)
• Contact termination method (Crimp)
• Shield termination method (Crimp)
• Fastening type (Bayonet Lock)
• Maximum frequency (4 GHz minimum)
• Voltage rating (500 V minimum)
• Mating cycles (500 minimum)
• Insertion loss (0.2 dB maximum)

Secondary Compatibility Factors:

• Cable group compatibility
• Operating temperature range
• Body material and finish specifications
• Center contact material and plating
• Dielectric material composition
• Regulatory compliance status (RoHS, REACH)

Two substitute parts meet the primary substitution criteria for the 031-336: the Amphenol RF 031-336-RFX and the TE Connectivity AMP Connectors 5225974-5. Both parts maintain identical electrical specifications, mechanical configuration, and performance characteristics within the defined parameters.

Parameter Comparison

Engineering Selection Recommendations

Amphenol RF 031-336-RFX

The 031-336-RFX is the primary recommended substitute for the 031-336. This part maintains active product status with the manufacturer, ensuring continued availability and support. Both parts are manufactured by Amphenol RF and share identical electrical and mechanical specifications. The 031-336-RFX carries ROHS3 compliance and REACH affected status, matching the regulatory profile of the original part. The primary material difference is the dielectric composition (POM Acetal versus PTFE), which does not affect the core electrical performance within the specified parameters. Operating temperature range, voltage rating, frequency response, and impedance characteristics are identical. This part is suitable for direct substitution in applications currently using the 031-336.

TE Connectivity AMP Connectors 5225974-5

The 5225974-5 meets all primary substitution criteria but carries an "Obsolete" product status designation. This part is no longer actively manufactured or supported by TE Connectivity. While electrical and mechanical specifications align with the 031-336 across all critical parameters, the operating temperature range is narrower (-55°C ~ 85°C versus -65°C ~ 165°C). This temperature limitation may restrict applicability in systems requiring the full thermal operating envelope of the original part. The 5225974-5 is suitable for substitution only in applications where the reduced temperature range does not present a constraint. Cable group compatibility is broader than the 031-336, supporting RG-59, 59A, 59B, 62, 62A, and 62B variants.

Selection Priority

For new component sourcing and ongoing system support, the Amphenol RF 031-336-RFX is the preferred substitute due to active product status and manufacturer support. The TE Connectivity 5225974-5 should be considered only when the 031-336-RFX is unavailable and application thermal requirements fall within the -55°C ~ 85°C operating range.
