LINE FILTER 250VAC 2A CHASSIS - 02EB11 Equivalent & Substitute Parts

Part Overview

The Curtis Industries 02EB11 is a single phase EMC/EMI line filter rated for 250VAC at 2A with 50/60Hz operation and chassis mount configuration using quick connect termination. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The filter is designed for general purpose applications requiring electromagnetic compatibility and electromagnetic interference suppression in single phase power distribution systems.

Substiute Parts

02EB11

Curtis IndustriesIn Stock: 99102EB11 Datasheet

Current PartRFQ

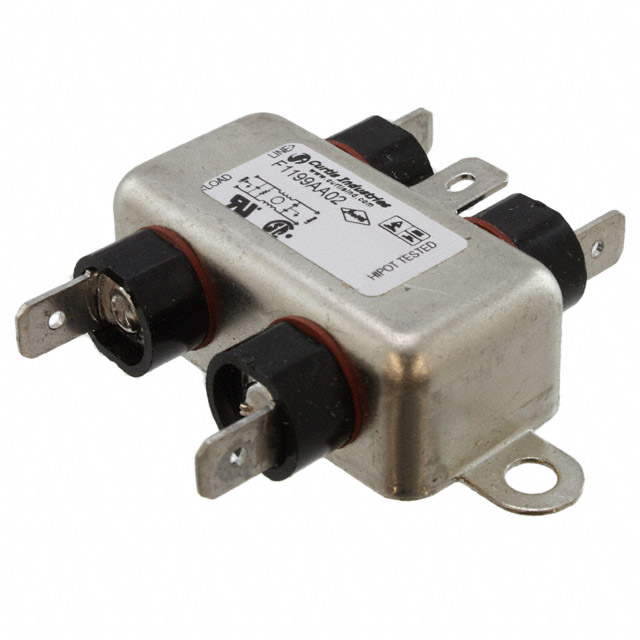

F1199AA02

Curtis IndustriesIn Stock: 1195F1199AA02 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 02EB11 is determined by strict equivalence across the following critical parameters:

• Filter Type & Configuration: Single phase, single stage topology
• Electrical Ratings: 250VAC, 2A continuous current capacity
• Operating Frequency: 50/60Hz compatibility
• Mechanical Interface: Chassis mount form factor with quick connect termination
• Application Class: General purpose EMC/EMI filtering

The Curtis Industries F1199AA02 meets all these criteria as a direct substitute. Both components share identical electrical specifications, mounting methodology, and termination interface, enabling direct replacement in existing designs and systems.

Parameter Comparison

Engineering Selection Recommendations

The F1199AA02 is the appropriate substitute for the obsolete 02EB11 based on the following factors:

• Product Status: The F1199AA02 maintains active production status, ensuring long-term availability and supply chain continuity compared to the obsolete 02EB11.
• Regulatory Compliance: The F1199AA02 carries expanded approval certifications (CE, CSA, TUV, UR) and achieves ROHS3 compliance, meeting current regulatory requirements for new system designs and updated installations.
• Electrical & Mechanical Equivalence: Both components maintain identical electrical ratings (250VAC, 2A, 50/60Hz) and mechanical interfaces (chassis mount, quick connect termination), enabling direct substitution without circuit redesign.
• Inventory Availability: The F1199AA02 is available in higher stock quantities (1119 pcs) compared to the 02EB11 (974 pcs), supporting both immediate replacement needs and future procurement.

Frequently Asked Questions (FAQ)

Q: Can the F1199AA02 directly replace the 02EB11 in existing installations?

A: Yes. Both components share identical electrical specifications (250VAC, 2A, 50/60Hz), mounting type (chassis mount), and termination interface (quick connect). Direct substitution is supported without modification to the host system.

Q: What is the difference in regulatory compliance between these parts?

A: The 02EB11 carries CSA, UR, and VDE certifications and is RoHS non-compliant. The F1199AA02 carries CE, CSA, TUV, and UR certifications and achieves ROHS3 compliance. For new designs or systems requiring current regulatory alignment, the F1199AA02 is the appropriate selection.

Q: Are there packaging differences between the 02EB11 and F1199AA02?

A: The 02EB11 is supplied with standard packaging, while the F1199AA02 is supplied in box packaging. Both maintain the same physical form factor and mounting interface.

Q: Why is the 02EB11 classified as obsolete?

A: The 02EB11 has been superseded by the F1199AA02 within the Curtis Industries product line. The F1199AA02 provides equivalent functionality with enhanced regulatory compliance and active production support.

Q: What applications are these filters suitable for?

A: Both the 02EB11 and F1199AA02 are classified for general purpose applications requiring single phase EMC/EMI line filtering at 250VAC, 2A in 50/60Hz power systems.
