LINE FILTER 02DRCG5 - Equivalent & Substitute Parts Reference

Part Overview

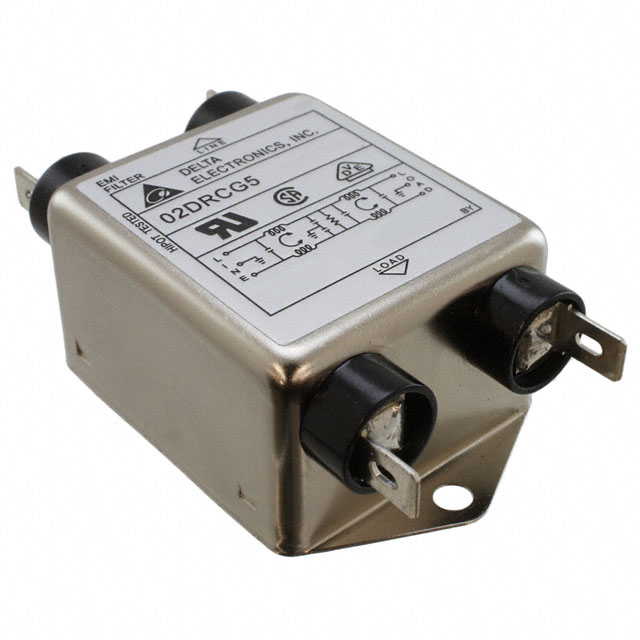

The Delta Electronics 02DRCG5 is a single-phase EMC/EMI line filter rated for 115V/250VAC at 2A, designed for general-purpose applications requiring electromagnetic compatibility filtering. This chassis-mount filter features two-stage configuration with quick-connect termination and operates across 50/60Hz frequency ranges. The part maintains active status with 1046 units in current inventory stock. Alternative equivalent parts are identified to support procurement flexibility, supply chain continuity, and application-specific requirements where substitute filters meet or exceed the electrical and mechanical specifications of the original component.

Substiute Parts

02DRCG5

Delta ElectronicsIn Stock: 115202DRCG5 Datasheet

Current PartRFQ

FN2060-3-06

Schaffner EMC Inc.In Stock: 3286FN2060-3-06 Datasheet

SimilarRFQ

6609031-3

TE Connectivity Corcom FiltersIn Stock: 7956609031-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 02DRCG5 are identified based on strict electrical and mechanical compatibility criteria. The primary substitution parameters are:

Critical Matching Parameters:

• Filter Type: Single Phase (all substitutes must be single-phase)
• Configuration: Two Stage (all substitutes must maintain two-stage design)
• Mounting Type: Chassis Mount (all substitutes must support chassis mounting)
• Termination Style: Quick Connect (all substitutes must use quick-connect terminals)
• Voltage Rating: Must support 250VAC minimum (covers the 02DRCG5 upper voltage rating)
• Current Rating: Must support 2A minimum (covers the 02DRCG5 rated current)
• Frequency: Must support 50/60Hz operation

Identified Substitutes:

1. FN2060-3-06 (Schaffner EMC Inc.) - Meets all critical parameters with enhanced current rating (3A) and extended frequency range (DC ~ 400Hz). Supports 250VAC operation with two-stage quick-connect configuration.

2. 6609031-3 (TE Connectivity Corcom Filters) - Meets all critical parameters with exact 2A current rating and 250VAC voltage specification. Maintains two-stage quick-connect chassis-mount design for 50/60Hz operation.

Parameter Comparison

Engineering Selection Recommendations

6609031-3 (TE Connectivity Corcom Filters) is the primary equivalent substitute for the 02DRCG5. This part maintains identical current rating (2A), voltage specification (250VAC), frequency operation (50/60Hz), and approval certifications (CSA, UR, VDE). The two-stage quick-connect chassis-mount configuration ensures direct mechanical and electrical compatibility. Operating temperature range (-10°C ~ 40°C) is narrower than the original but suitable for standard industrial environments. ROHS3 compliance and REACH unaffected status align with regulatory requirements.

FN2060-3-06 (Schaffner EMC Inc.) serves as an alternative substitute with enhanced specifications. The 3A current rating provides operational margin above the 2A requirement. Extended frequency range (DC ~ 400Hz) supports broader application scenarios beyond standard 50/60Hz operation. Two-stage quick-connect chassis-mount design maintains mechanical compatibility. Operating temperature range (-25°C ~ 100°C) matches the original specification. Approval certifications (CE, CSA, ENEC, UR) exceed the original requirement set. ROHS3 compliance and REACH unaffected status satisfy regulatory obligations.

Both substitutes maintain active product status, ensuring continued availability and manufacturer support.

Frequently Asked Questions (FAQ)

Q: Can the 6609031-3 directly replace the 02DRCG5 in existing applications?

A: Yes. The 6609031-3 maintains identical electrical ratings (2A, 250VAC, 50/60Hz), two-stage configuration, quick-connect termination, and chassis-mount design. Approval certifications (CSA, UR, VDE) match the original. The narrower operating temperature range (-10°C ~ 40°C) is suitable for standard industrial environments but should be verified for applications requiring the full -25°C ~ 100°C range of the original.

Q: What are the advantages of using FN2060-3-06 as a substitute?

A: The FN2060-3-06 provides enhanced current capacity (3A versus 2A), extended frequency range (DC ~ 400Hz versus 50/60Hz), and broader operating temperature coverage (-25°C ~ 100°C). These specifications support applications with higher current demands or non-standard frequency requirements. Approval certifications include CE and ENEC in addition to CSA and UR, providing broader geographic compliance.

Q: Are there packaging differences between the main part and substitutes?

A: Yes. The 02DRCG5 is supplied in Box packaging, FN2060-3-06 in Tray packaging, and 6609031-3 in Bulk packaging. Packaging format does not affect electrical or mechanical compatibility but may influence inventory management and handling procedures.

Q: Do all three parts have identical inductance values?

A: No. The 02DRCG5 has 2.4mH inductance, FN2060-3-06 has 2.5mH, and 6609031-3 has 1.078mH. Inductance differences are within acceptable ranges for EMC/EMI filtering applications and do not prevent substitution. Applications with specific inductance requirements should verify compatibility with the substitute part's inductance specification.

Q: Are all parts RoHS and REACH compliant?

A: Yes. All three parts (02DRCG5, FN2060-3-06, and 6609031-3) are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards.

Q: What is the inventory status for each part?

A: The 02DRCG5 has 1046 units in stock, FN2060-3-06 has 3220 units, and 6609031-3 has 713 units. All parts maintain active status with current availability.
