LINE FILTER 02DBAW5 Equivalent & Substitute Parts

Part Overview

The Delta Electronics 02DBAW5 is a single-phase EMC/EMI line filter rated for 115V/250VAC at 2A with 50/60Hz operation. This chassis-mount filter is designed for general-purpose applications requiring electromagnetic compatibility filtering. The part is currently active in production with 865 units in stock. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained within the specified parameter ranges for single-phase line filter applications.

Key Parameters

Parameter	Value
Manufacturer Part Number	02DBAW5
Manufacturer	Delta Electronics
Filter Type	Single Phase
Configuration	Single Stage
Voltage - Rated AC	115V, 250V
Current Rating	2 A
Frequency - Operating	50/60Hz
Mounting Type	Chassis Mount
Termination Style	Wire Leads
Operating Temperature	-25°C ~ 100°C
Inductance	1.1mH
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the 02DBAW5 are identified based on the following critical parameters that determine functional equivalence:

Filter Type: Single Phase (all substitutes must be single-phase filters)
Configuration: Single Stage (all substitutes must maintain single-stage design)
Current Rating: 2 A (primary electrical requirement)
Voltage Rating: 250VAC minimum (all substitutes rated for 250VAC or higher)
Frequency: 50/60Hz operation (all substitutes support this frequency range)
Mounting: Chassis Mount with Wire Leads (mechanical compatibility requirement)
Compliance: RoHS3 Compliant (environmental standard requirement)

The 02DBAW5 operates at 115V/250VAC with 2A capacity. Substitute parts meeting these electrical specifications with compatible mechanical interfaces are classified as direct equivalents for general-purpose applications.

Parameter Comparison

Parameter	02DBAW5 (Delta)	FN2010-1-07 (Schaffner)	2EB3 (TE Connectivity)	F1199BB02 (Curtis)
Filter Type	Single Phase	Single Phase	Single Phase	Single Phase
Configuration	Single Stage	Single Stage	Single Stage	Single Stage
Voltage - Rated AC	115V, 250V	250V	250V	250V
Current Rating	2 A	1 A	2 A	2 A
Frequency - Operating	50/60Hz	DC ~ 400Hz	50/60Hz	50/60Hz
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Termination Style	Wire Leads	Wire Leads	Wire Leads	Wire Leads
Operating Temperature	-25°C ~ 100°C	-25°C ~ 100°C	-10°C ~ 40°C	Not Specified
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

Primary Equivalent (2EB3 - TE Connectivity Corcom Filters)

The 2EB3 matches the 02DBAW5 across all critical electrical parameters: 2A current rating, 250VAC voltage, 50/60Hz frequency operation, single-phase single-stage configuration, and chassis-mount wire-lead termination. Both parts are ROHS3 compliant and active in production. Operating temperature range for 2EB3 is -10°C ~ 40°C, which is narrower than the 02DBAW5 (-25°C ~ 100°C). This part is suitable for applications within the specified temperature limits.

Secondary Equivalent (F1199BB02 - Curtis Industries)

The F1199BB02 provides electrical equivalence with 2A rating, 250VAC voltage, and 50/60Hz operation. Mechanical compatibility is maintained through chassis-mount wire-lead configuration. ROHS3 compliance is confirmed. Operating temperature is not specified in available data. This part is suitable for general-purpose applications where temperature specifications are not critical.

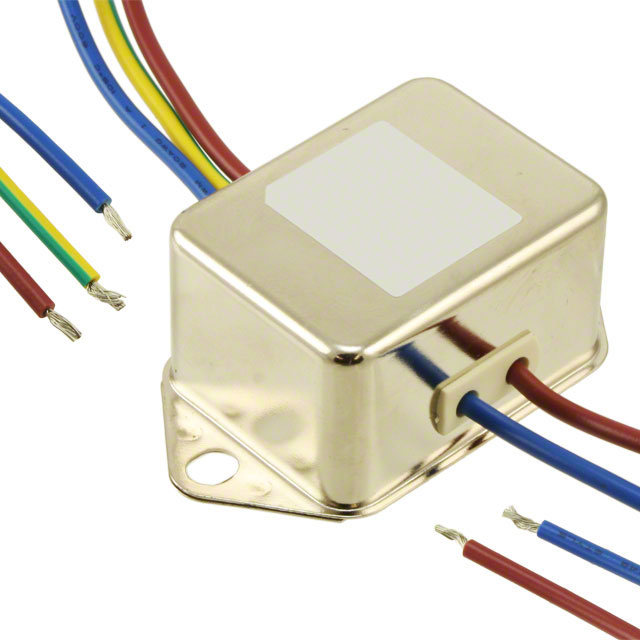

Limited Equivalent (FN2010-1-07 - Schaffner EMC Inc.)

The FN2010-1-07 differs in current rating (1A versus 2A). This part is not a direct electrical equivalent for 2A applications. It is listed as a substitute only for applications requiring reduced current capacity. Frequency range extends to 400Hz, exceeding the 50/60Hz requirement. Operating temperature matches the 02DBAW5 (-25°C ~ 100°C). This part is suitable only for 1A maximum current applications.

Frequently Asked Questions (FAQ)

Q: Can the FN2010-1-07 replace the 02DBAW5 in all applications?

A: No. The FN2010-1-07 is rated for 1A maximum current, while the 02DBAW5 is rated for 2A. Use FN2010-1-07 only in applications requiring 1A or less. For 2A applications, use 2EB3 or F1199BB02.

Q: What is the primary difference between 2EB3 and F1199BB02?

A: Both parts match the 02DBAW5 electrical specifications (2A, 250VAC, 50/60Hz). The 2EB3 specifies operating temperature range (-10°C ~ 40°C), while F1199BB02 does not provide temperature data. Select based on application temperature requirements.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts (FN2010-1-07, 2EB3, F1199BB02) are ROHS3 compliant, matching the 02DBAW5 environmental standard.

Q: Do all substitutes use the same packaging?

A: No. The 02DBAW5 is supplied in Bulk packaging. FN2010-1-07 uses Tray packaging, 2EB3 uses Bulk packaging, and F1199BB02 uses Box packaging. Packaging does not affect electrical or mechanical compatibility.

Q: Can these filters be used interchangeably in 115V applications?

A: The 02DBAW5 is rated for 115V/250VAC operation. Substitute parts 2EB3 and F1199BB02 are rated for 250VAC only. FN2010-1-07 is rated for 250VAC only. For 115V applications, the 02DBAW5 is the specified part. Substitutes are suitable for 250VAC applications only.

Q: What approval agencies certify these parts?

A: The 02DBAW5 holds CSA, UR, and VDE approvals. FN2010-1-07 holds CSA, ENEC, and UR approvals. The 2EB3 holds CSA, UR, and VDE approvals. F1199BB02 holds CE, CSA, TUV, and UR approvals. Verify specific application requirements against required certifications.
