Equivalent & Substitute Parts for 02BEEG3H

Part Overview

The 02BEEG3H is an IEC 320-C14 power entry connector receptacle manufactured by Delta Electronics. This panel-mount, filtered power entry module is designed for AC power applications requiring EMI/RFI filtering in commercial environments. The connector accommodates a fuse and features quick connect termination, making it suitable for equipment requiring both power distribution and electromagnetic interference suppression. As an active product with established inventory, substitute parts may be required due to supply chain considerations, packaging preferences, or specific application requirements.

Substiute Parts

02BEEG3H

Delta ElectronicsIn Stock: 122302BEEG3H Datasheet

Current PartRFQ

860-02/001

QualtekIn Stock: 1118860-02/001 Datasheet

DirectRFQ

3EGG1-1

TE Connectivity Corcom FiltersIn Stock: 11743EGG1-1 Datasheet

SimilarRFQ

FN261-2-06

Schaffner EMC Inc.In Stock: 1275FN261-2-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 02BEEG3H is determined by the following critical parameters:

• Connector Style and Type: All substitute parts must maintain IEC 320-C14 receptacle configuration with male blades in module form
• Mounting Configuration: Panel mount with flange mounting is required for mechanical compatibility
• Electrical Ratings: Current and voltage ratings must meet or exceed the 2A / 115-250VAC specification
• Filtering Capability: EMI/RFI commercial-grade filtering must be present
• Termination Method: Quick connect termination is required for circuit integration
• Fuse Accommodation: Fuse holder drawer functionality must be maintained
• Panel Cutout Compatibility: Rectangular cutout dimensions must accommodate the connector flange

The substitute parts listed below satisfy these core substitution criteria while maintaining functional equivalence for IEC 320-C14 power entry applications.

Parameter Comparison

Engineering Selection Recommendations

860-02/001 (Qualtek): This part provides direct electrical and mechanical equivalence to the 02BEEG3H. Both maintain identical current and voltage ratings (2A / 115-250VAC) and panel cutout dimensions within tolerance. Qualtek certification includes CSA, UL, and VDE approval. Selection of this substitute is appropriate when tray packaging is preferred over bulk packaging.

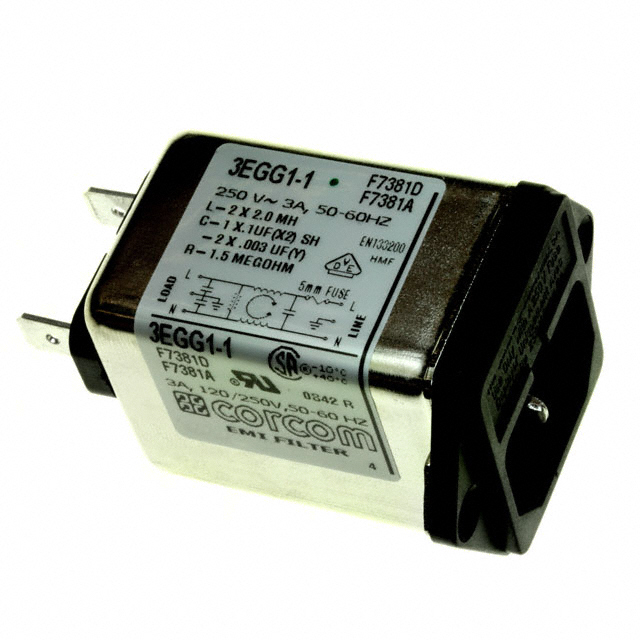

3EGG1-1 (TE Connectivity Corcom Filters): This part exceeds the electrical specifications of the 02BEEG3H with a 3A current rating and 120/250VAC voltage rating. Panel cutout dimensions are within tolerance of the primary part. TE Connectivity maintains CSA, UL, and VDE certifications. This substitute is suitable for applications where higher current capacity provides design margin. Note that REACH status is affected for this part.

FN261-2-06 (Schaffner EMC Inc.): This part maintains IEC 320-C14 configuration and panel mount flange design with identical panel cutout dimensions to the 02BEEG3H. Schaffner certification includes CQC, CSA, ENEC, and UL approval, providing broader international compliance. The 10A filter current rating exceeds the primary part specification. Material flammability rating (UL94 V-2) and ingress protection (IP40) are specified for this part. Selection is appropriate for applications requiring enhanced environmental protection and international certifications.

Frequently Asked Questions (FAQ)

Q: Can 860-02/001 be used as a direct replacement for 02BEEG3H?

A: Yes. Both parts maintain identical IEC 320-C14 connector configuration, 2A current rating, 115-250VAC voltage rating, and panel cutout dimensions within tolerance. Electrical and mechanical compatibility is established.

Q: What is the difference between 3EGG1-1 and the primary part?

A: The 3EGG1-1 provides higher current capacity (3A versus 2A) and slightly different voltage specification (120/250VAC versus 115-250VAC). Panel cutout dimensions are within tolerance. This part is suitable for applications requiring additional current margin.

Q: Is FN261-2-06 compatible with the same panel cutout as 02BEEG3H?

A: Yes. Both parts specify identical rectangular panel cutout dimensions of 29.00mm x 33.00mm, ensuring mechanical compatibility with existing panel designs.

Q: What are the packaging differences among these parts?

A: The 02BEEG3H and 3EGG1-1 are supplied in bulk packaging. The 860-02/001 and FN261-2-06 are supplied in tray packaging. Packaging selection depends on inventory management and handling requirements.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All listed substitute parts maintain ROHS3 compliance status, consistent with the primary part specification.

Q: Which substitute part has the broadest international certification?

A: The FN261-2-06 includes CQC, CSA, ENEC, and UL certifications, providing broader international compliance coverage compared to the primary part and other substitutes, which are limited to CSA, UL, and VDE.

Q: Can FN261-2-06 be used in applications requiring IP40 ingress protection?

A: Yes. The FN261-2-06 specifies IP40 ingress protection rating and UL94 V-2 material flammability rating, making it suitable for applications with environmental protection requirements.
