Molex 0191951007 Ring Terminal Connector - Equivalent & Substitute Parts
Part Overview
The Molex 0191951007 is a ring terminal connector designed for 1/4 stud circular applications with crimp and piercing termination capabilities. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing maintenance, repair, and new design implementations. The part belongs to the MagKrimp series and is RoHS3 compliant with unlimited moisture sensitivity rating.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 0191951007 |
| Manufacturer | Molex |
| Category | Terminals |
| Terminal Type | Circular |
| Stud/Tab Size | 1/4 Stud |
| Termination Type | Crimp, Piercing |
| Wire Gauge | 10380-52480 CMA |
| Mounting Type | Free Hanging (In-Line) |
| Contact Material | Copper Alloy |
| Contact Finish | Electro-Tin |
| Insulation | Non-Insulated |
| Product Status | Obsolete |
| RoHS Status | RoHS3 Compliant |
Substitute Part Grouping Explanation
Substitution eligibility for the Molex 0191951007 is determined by the following critical parameters:
- Terminal Type: Must be Circular
- Stud/Tab Size: Must be 1/4 Stud
- Mounting Type: Must be Free Hanging (In-Line)
- Termination Capability: Must support Crimp termination at minimum
- Wire Gauge Compatibility: Must accommodate the specified wire gauge range
- Contact Material & Finish: Should maintain electrical performance characteristics
- Regulatory Compliance: Must meet RoHS requirements for current applications

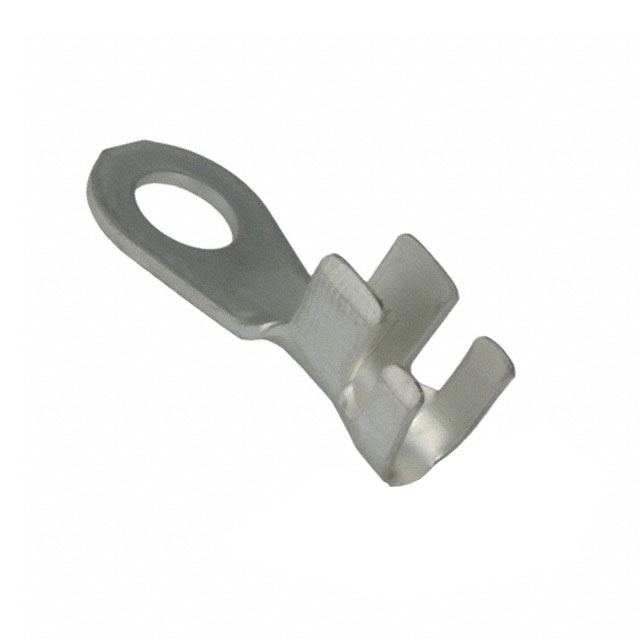

The TE Connectivity AMP Connectors part number 61868-1 meets these substitution criteria as an active, in-stock alternative with compatible mechanical and electrical specifications.
Parameter Comparison
| Parameter | Molex 0191951007 | TE Connectivity 61868-1 |
|---|---|---|
| Manufacturer | Molex | TE Connectivity AMP Connectors |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 1/4 Stud |
| Thickness | 0.062" (1.57mm) | 0.040" (1.02mm) |
| Width - Outer Edges | Not specified | 0.490" (12.45mm) |
| Length - Overall | Not specified | 1.110" (28.19mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp, Piercing | Crimp |
| Wire Gauge | 10380-52480 CMA | 6-10 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Contact Material | Copper Alloy | Brass |
| Contact Finish | Electro-Tin | Tin |
| Insulation Diameter | Not specified | 0.145" ~ 0.290" (3.68mm ~ 7.37mm) |
| Product Status | Obsolete | Active |
| RoHS Status | RoHS3 Compliant | RoHS Compliant |
| MSL Rating | 1 (Unlimited) | 1 (Unlimited) |
Engineering Selection Recommendations
The TE Connectivity 61868-1 is the manufacturer-recommended substitute for the obsolete Molex 0191951007. Both components share identical stud size (1/4), mounting configuration (Free Hanging In-Line), and non-insulated design. Both maintain RoHS compliance and unlimited moisture sensitivity ratings, ensuring regulatory compatibility in current applications.
The primary difference lies in termination capability: the Molex part supports both crimp and piercing termination, while the TE Connectivity substitute provides crimp termination with serrated termination features. Wire gauge specifications differ in notation (10380-52480 CMA versus 6-10 AWG), but both accommodate similar conductor sizes within standard industrial ranges.
The TE Connectivity 61868-1 is currently in active production with substantial inventory availability (12,698 pieces), providing supply chain reliability for replacement and new applications.
Frequently Asked Questions (FAQ)
Q: Can the TE Connectivity 61868-1 directly replace the Molex 0191951007 in existing assemblies?
A: Yes, for applications requiring crimp termination. Both parts share identical 1/4 stud size and Free Hanging mounting configuration. If piercing termination is required, compatibility must be verified against specific application requirements.
Q: What is the significance of the wire gauge difference between 10380-52480 CMA and 6-10 AWG?
A: Both specifications define the conductor size range the terminal accommodates. The 6-10 AWG rating of the TE Connectivity part covers standard wire gauges used in industrial and automotive applications. Verify your specific wire gauge falls within this range before substitution.
Q: Are there compliance differences between the two parts?
A: Both parts are RoHS compliant and carry MSL 1 (Unlimited) ratings. The Molex part is RoHS3 compliant, while the TE Connectivity part is RoHS compliant. Both meet current regulatory requirements for new designs and replacements.
Q: What is the impact of the thickness difference (0.062" versus 0.040")?
A: The TE Connectivity part is thinner. This difference may affect mechanical fit in space-constrained applications. Verify clearance and mounting compatibility in your specific assembly before implementation.
Q: Does the serrated termination feature on the TE Connectivity part affect compatibility?
A: Serrated termination improves mechanical grip and electrical contact consistency. This is a performance enhancement that does not negatively impact compatibility with standard 1/4 stud applications.
Q: What packaging format is the TE Connectivity substitute available in?
A: The TE Connectivity 61868-1 is supplied in Cut Tape (CT) packaging, suitable for both manual and automated assembly processes.
