Molex 0190170035 Quick Connect Female Crimp Connector - Equivalent & Substitute Parts

Part Overview

The Molex 0190170035 is a 0.187" (4.75mm) Quick Connect Female Crimp Connector designed for 14-16 AWG wire termination with non-mating end insulation. This connector is part of the InsulKrimp series and is classified as Active product status. Equivalent and substitute parts are identified when design requirements necessitate alternative sourcing due to inventory constraints, supply chain considerations, or application-specific packaging needs while maintaining electrical and mechanical compatibility.

Substiute Parts

0190170035

MolexIn Stock: 12070190170035 Datasheet

Current PartRFQ

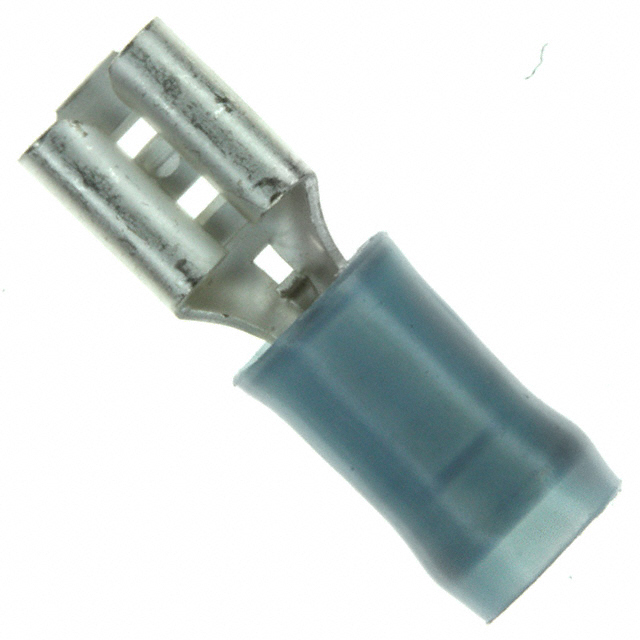

640919-2

TE Connectivity AMP ConnectorsIn Stock: 12660640919-2 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0190170035 is determined by strict equivalence across the following critical parameters:

• Tab Width: 0.187" (4.75mm)
• Tab Thickness: 0.020" (0.51mm)
• Tab Length: 0.250" (6.35mm)
• Wire Gauge: 14-16 AWG
• Gender: Female
• Termination: Crimp
• Insulation: Non-Mating End Insulated
• Contact Material: Brass
• Contact Finish: Tin
• RoHS Compliance: ROHS3 Compliant

The TE Connectivity AMP Connectors part number 640919-2 meets all critical electrical and mechanical parameters required for direct substitution. Both connectors maintain identical tab dimensions, wire gauge compatibility, termination method, and contact specifications. Packaging format differs (Tape & Reel versus Cut Tape), which does not affect functional compatibility in the application.

Parameter Comparison

Engineering Selection Recommendations

Both the Molex 0190170035 and TE Connectivity 640919-2 connectors are Active product status components with ROHS3 compliance certification. Selection between these parts should be based on:

• Packaging requirements: Molex 0190170035 is supplied in Tape & Reel format; TE Connectivity 640919-2 is supplied in Cut Tape format
• Inventory availability: TE Connectivity 640919-2 has higher stock levels (12,602 pcs versus 1,111 pcs)
• Series compatibility: Molex InsulKrimp series versus TE Connectivity Faston/PIDG series
• Insulation diameter variation: TE Connectivity part has larger insulation diameter (0.170" versus 0.140"), which may affect fit in specific connector housings

Both parts satisfy identical electrical specifications and mechanical tab dimensions required for Quick Connect receptacle applications in 14-16 AWG circuits.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 640919-2 be used as a direct replacement for Molex 0190170035?

A: Yes. Both connectors meet identical specifications for tab width, thickness, length, wire gauge, gender, termination method, contact material, and finish. The connectors are electrically and mechanically compatible for Quick Connect receptacle applications.

Q: What is the difference in insulation diameter between these parts?

A: Molex 0190170035 has an insulation diameter of 0.140" (4.66mm), while TE Connectivity 640919-2 has 0.170" (4.32mm). This variation may affect fit tolerance in connector housings designed with specific insulation diameter clearances. Verify housing compatibility before substitution.

Q: Does packaging format affect compatibility?

A: No. Molex 0190170035 is supplied in Tape & Reel format, and TE Connectivity 640919-2 is supplied in Cut Tape format. Packaging affects handling and assembly processes but does not impact electrical or mechanical performance.

Q: Are both parts RoHS compliant?

A: Yes. Both Molex 0190170035 and TE Connectivity 640919-2 are ROHS3 compliant and suitable for applications requiring RoHS certification.

Q: What is the overall length difference?

A: Molex 0190170035 has an overall length of 0.789" (20.04mm), while TE Connectivity 640919-2 is 0.800" (20.32mm). This 0.011" (0.28mm) difference is within typical mechanical tolerance ranges for Quick Connect connectors.
