Molex 0050841015 Rectangular Connector Plug Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0050841015 is a 1-position rectangular connector plug housing from the MLX 42021 series. This component is designed for free-hanging, in-line applications requiring crimp contact termination with latch lock fastening. The part is actively manufactured and maintains full RoHS3 compliance with REACH unaffected status. Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity for applications requiring compatible 1-position plug housings with matching electrical and mechanical specifications.

Substiute Parts

0050841015

MolexIn Stock: 7220050841015 Datasheet

Current PartRFQ

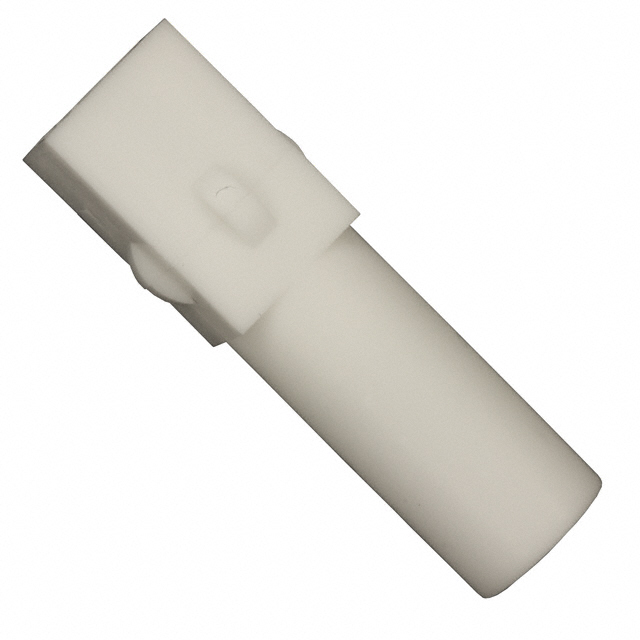

350865-1

TE Connectivity AMP ConnectorsIn Stock: 7925350865-1 Datasheet

MFR RecommendedRFQ

0050841010

MolexIn Stock: 296160050841010 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0050841015 are qualified based on the following critical parameters that determine functional interchangeability:

Primary Substitution Criteria:

• Connector type (Plug)
• Number of positions (1)
• Number of rows (1)
• Mounting type (Free Hanging, In-Line)
• Contact termination method (Crimp)
• Operating temperature range (-55°C to 105°C)
• Moisture sensitivity level (1 - Unlimited)

Identified Substitutes:

1. TE Connectivity 350865-1 (MFR Recommended): Meets all primary substitution criteria. Operates within identical temperature range. Maintains MSL 1 rating. Fastening type differs (Locking Ramp vs. Latch Lock) but both provide secure mechanical retention for 1-position housings. RoHS compliant with vendor-undefined REACH status.

2. Molex 0050841010 (Parametric Equivalent): Identical series (MLX 42021), same manufacturer, matching all electrical and mechanical parameters. Functionally equivalent with no performance differentiation.

Parameter Comparison

Engineering Selection Recommendations

Molex 0050841010 is the primary parametric equivalent, offering identical specifications within the MLX 42021 series with no performance differentiation from the Molex 0050841015. Both parts maintain ROHS3 compliance and REACH unaffected status, supporting equivalent regulatory requirements.

TE Connectivity 350865-1 provides cross-manufacturer substitution with full functional compatibility across all critical parameters. This part maintains RoHS compliance and operates within the identical temperature and moisture sensitivity envelope. The fastening mechanism differs (Locking Ramp vs. Latch Lock), but both provide equivalent mechanical retention for 1-position housings. Selection of this substitute is appropriate when Molex parts are unavailable and cross-manufacturer compatibility is acceptable.

All three parts are actively manufactured with confirmed inventory availability, supporting immediate procurement without obsolescence risk.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 350865-1 directly replace Molex 0050841015 in existing designs?

A: Yes. Both parts meet identical electrical and mechanical specifications for 1-position plug housings with crimp termination and free-hanging mounting. The fastening mechanism differs (Locking Ramp vs. Latch Lock), but both provide secure retention. Mating connector compatibility should be verified based on your specific application requirements.

Q: What is the difference between Molex 0050841015 and Molex 0050841010?

A: Both parts are from the MLX 42021 series with identical specifications. They are parametric equivalents with no functional differentiation. Selection between them is based on inventory availability and procurement lead times.

Q: Are there color differences between substitutes?

A: Yes. Molex 0050841015 and 0050841010 are natural color, while TE Connectivity 350865-1 is white. If color coding is functionally significant to your application, this distinction must be evaluated during design review.

Q: Do all substitutes maintain the same compliance certifications?

A: Molex 0050841015 and 0050841010 are both ROHS3 compliant with REACH unaffected status. TE Connectivity 350865-1 is RoHS compliant with vendor-undefined REACH status. Verify compliance requirements for your specific regulatory jurisdiction before final part selection.

Q: Are contacts included with these connector housings?

A: No. All three parts are housings only. Contacts must be procured separately and are not included with the housing.

Q: What is the moisture sensitivity level, and why does it matter?

A: All three parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions. These parts can be stored and handled without special moisture control measures, simplifying supply chain management and reducing storage costs.
