Molex 0040062003 Terminal Ground Clip Connector - Equivalent & Substitute Parts

Part Overview

The Molex 0040062003 is a terminal ground clip connector designed for crimp termination of 16-18 AWG wire gauges. This component functions as a grounding terminal in electrical assemblies and is classified as an active product with full RoHS3 compliance. Ground clip terminals are essential components in applications requiring reliable grounding connections with secure mechanical retention and electrical conductivity. Substitute parts may be required due to inventory availability, supply chain considerations, or design flexibility within compatible electrical specifications.

Substiute Parts

0040062003

MolexIn Stock: 11370040062003 Datasheet

Current PartRFQ

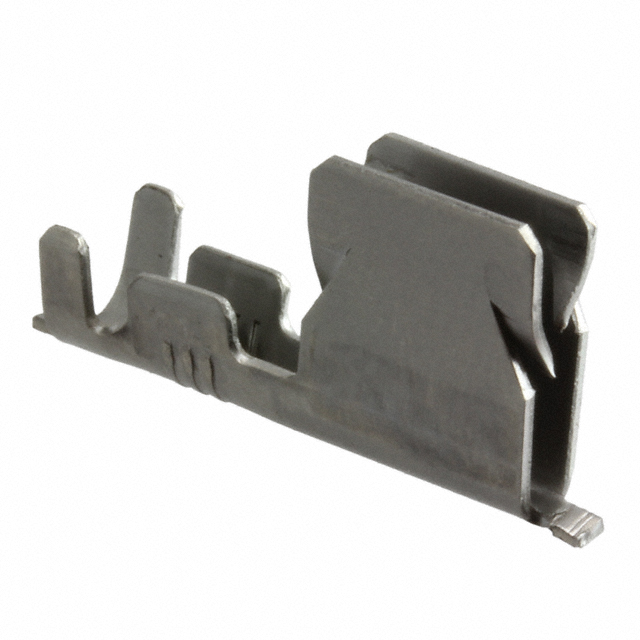

63895-1

TE Connectivity AMP ConnectorsIn Stock: 5038763895-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0040062003 is determined by the following critical parameters:

• Terminal Type: Must be Ground Clip to maintain functional equivalence
• Termination Method: Must be Crimp to ensure compatibility with assembly processes
• Wire Gauge Range: Must accommodate 16-18 AWG; acceptable substitutes may have overlapping or extended wire gauge ranges that include 16-18 AWG
• Product Status: Active status indicates ongoing manufacturer support and availability
• Compliance Standards: RoHS and REACH compliance ensure regulatory alignment

The TE Connectivity AMP Connectors part 63895-1 qualifies as a substitute based on matching terminal type (Ground Clip), termination method (Crimp), and wire gauge compatibility (14-18 AWG range encompasses the required 16-18 AWG specification). Both parts maintain equivalent electrical and mechanical function within their specified operating parameters.

Parameter Comparison

Engineering Selection Recommendations

Selection between the Molex 0040062003 and TE Connectivity 63895-1 should be based on the following engineering criteria:

Molex 0040062003 is the primary specification for applications requiring 16-18 AWG wire gauge termination within the 42172 series. This part maintains active product status with RoHS3 compliance and established supply availability.

TE Connectivity 63895-1 serves as a functional equivalent for applications where wire gauge flexibility permits use of the 14-18 AWG range. This substitute offers extended wire gauge capability and higher current inventory levels. Both parts maintain identical moisture sensitivity ratings and equivalent compliance certifications, ensuring interchangeability within the specified electrical and mechanical parameters.

Selection should prioritize part availability, supply chain lead times, and design flexibility regarding wire gauge accommodation. Both parts are active products with unlimited moisture sensitivity ratings and full regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Can TE Connectivity 63895-1 be used in place of Molex 0040062003?

A: Yes, within the specified wire gauge range. The TE Connectivity part accommodates 14-18 AWG, which includes the Molex specification of 16-18 AWG. Both parts are ground clip terminals with crimp termination and equivalent compliance ratings.

Q: What is the primary difference between these two parts?

A: The wire gauge range differs. Molex 0040062003 is specified for 16-18 AWG, while TE Connectivity 63895-1 accommodates 14-18 AWG. The TE Connectivity part provides extended capability for smaller gauge wires (14-16 AWG) while maintaining full compatibility with the Molex specification range.

Q: Are both parts RoHS compliant?

A: Yes. Molex 0040062003 is RoHS3 Compliant, and TE Connectivity 63895-1 is RoHS Compliant. Both meet regulatory requirements for restricted substance limitations.

Q: What is the moisture sensitivity level for these terminals?

A: Both parts have Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.

Q: Are these parts available in different packaging formats?

A: Both parts are supplied in Cut Tape (CT) packaging. No alternative packaging formats are specified for these components.

Q: Which part should be selected for new designs?

A: Selection depends on wire gauge requirements and supply chain considerations. For applications requiring only 16-18 AWG termination, either part is acceptable. The TE Connectivity 63895-1 offers additional flexibility if future designs may require 14-16 AWG termination capability.
