SCHURTER 0033.6022 Selector Switch 6 Position 10A 250V Panel Mount

Part Overview

The SCHURTER 0033.6022 is a line voltage selector switch featuring 6 positions with series and parallel connection capability, rated for 10A AC at 250V. This component is designed for panel mount applications with a circular 30mm diameter cutout and solder lug termination. The part is currently obsolete, with 1093 units available in new original stock. Due to its obsolete status, identifying compatible active alternatives is essential for ongoing system support and new design implementations.

Substiute Parts

0033.6022

SCHURTER Inc.In Stock: 11440033.6022 Datasheet

Current PartRFQ

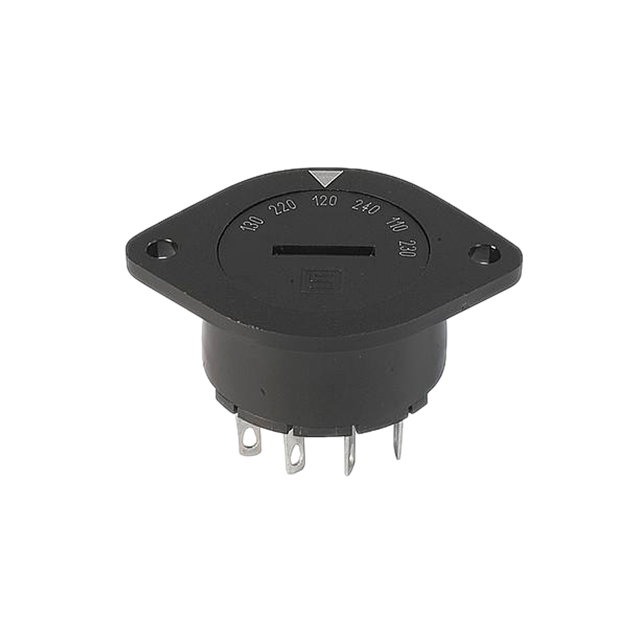

0033.3527

SCHURTER Inc.In Stock: 11190033.3527 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The SCHURTER 0033.3527 qualifies as a direct substitute based on the following critical parameters:

Matching Electrical Specifications:

• Current Rating: 10A (AC)
• Voltage Rating: 250V (AC)
• Number of Positions: 6
• Switch Function: On-On-On-On-On-On
• Circuit Configuration: Series, Parallel Connections

Matching Mechanical Specifications:

• Mounting Type: Panel Mount
• Panel Cutout Diameter: 30.00mm (Circular)
• Type: Line Voltage Selector

Compliance Alignment:

• RoHS3 Compliant
• REACH Unaffected
• Regulatory Approvals: CSA and UR (common to both)

The 0033.3527 is an active product in the SWZ series, providing continuity for applications currently using the obsolete 0033.6022. Differences in termination style, depth behind flange, and operating temperature range do not affect functional substitution when electrical and mechanical interface requirements are met.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement Applications:

The SCHURTER 0033.3527 is suitable for direct substitution in applications currently using the 0033.6022. Both components meet identical electrical load requirements (10A AC, 250V) and mechanical interface specifications (30mm panel cutout, panel mount configuration).

Active Product Status Advantage:

The 0033.3527 holds active product status with SCHURTER Inc., ensuring ongoing availability and manufacturing support. This contrasts with the 0033.6022, which is obsolete and subject to stock depletion.

Compliance Certification:

Both parts maintain ROHS3 compliance and REACH unaffected status. The 0033.3527 carries CSA, UR, and VDE approvals, providing expanded regulatory coverage compared to the 0033.6022 (CSA, SEMKO, UR).

Termination and Packaging Considerations:

The 0033.3527 offers dual termination options (Solder and Quick Connect 0.110" terminals) versus the 0033.6022 solder lug only configuration. The substitute part features a reduced depth behind flange (21.50mm versus 31.00mm), which may provide installation advantages in space-constrained panel designs. Packaging is supplied in bulk format for the 0033.3527.

Frequently Asked Questions (FAQ)

Q: Can the 0033.3527 directly replace the 0033.6022 in existing designs?

A: Yes. Both components share identical electrical ratings (10A AC, 250V), circuit configuration (series/parallel), position count (6), and mechanical mounting interface (30mm circular panel cutout). The electrical and mechanical compatibility is complete.

Q: What is the impact of the different termination styles?

A: The 0033.6022 uses solder lug termination exclusively. The 0033.3527 provides both solder and quick connect 0.110" (2.8mm) terminal options. If your application requires solder lug connection only, the solder termination option of the 0033.3527 maintains compatibility. Quick connect terminals are an additional feature not present on the original part.

Q: Does the reduced depth behind flange (21.50mm vs. 31.00mm) affect compatibility?

A: The shallower depth of the 0033.3527 (21.50mm) is mechanically compatible with panel cutouts designed for the 0033.6022 (31.00mm depth). The reduced depth may provide installation benefits in applications with limited rear panel space. Verify that your panel mounting bracket and rear clearance accommodate the substitute part's dimensions.

Q: Are there temperature range differences to consider?

A: The 0033.3527 operates across -40°C to 85°C, compared to the 0033.6022 range of -40°C to 70°C. The extended upper temperature limit of the substitute part provides additional thermal margin and is suitable for applications within the original part's temperature specification.

Q: What certifications does the 0033.3527 carry?

A: The 0033.3527 holds CSA, UR, and VDE approvals. The original 0033.6022 carries CSA, SEMKO, and UR certifications. Both parts maintain ROHS3 compliance and REACH unaffected status. The substitute part's VDE certification provides additional European regulatory coverage.

Q: Is the 0033.3527 available for new designs?

A: Yes. The 0033.3527 is an active product with 1026 units in new original stock. The 0033.6022 is obsolete. For new designs and ongoing production, the 0033.3527 is the recommended component selection.
