SCHURTER 0033.1513 Selector Switch 6 Position SP6T 6.3A 250V

Part Overview

The SCHURTER 0033.1513 is a line voltage selector switch with 6 positions and SP6T circuit configuration, rated for 6.3A AC at 250V. This component is classified as obsolete, making identification of compatible alternatives necessary for ongoing system maintenance and new design implementations. The switch features panel mount installation with solder lug termination and is marked for voltage selection across 200-208-220-230-240V ranges.

Substiute Parts

0033.1513

SCHURTER Inc.In Stock: 9440033.1513 Datasheet

Current PartRFQ

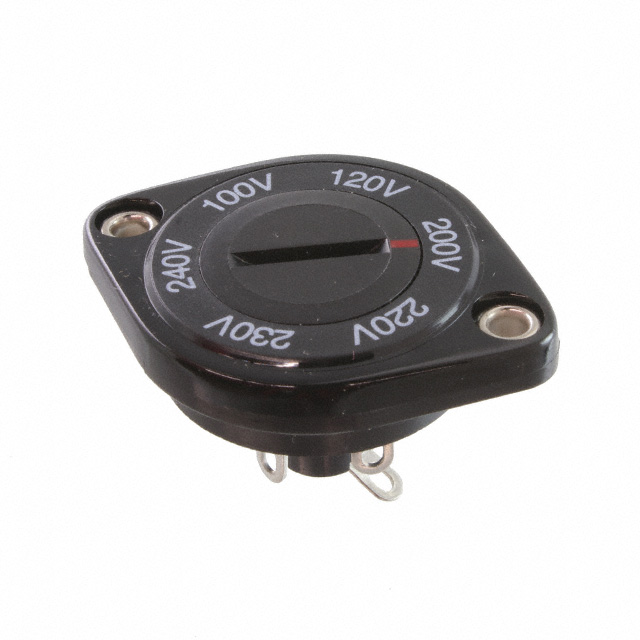

0033.1127

SCHURTER Inc.In Stock: 10620033.1127 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SCHURTER 0033.1513 is determined by the following critical parameters:

• Circuit Configuration: Must remain SP6T (6 poles, 6 throws)
• Number of Positions: Must remain 6
• Voltage Rating (AC): Must be rated for minimum 250V AC
• Current Rating (AC): Must be rated for minimum 6.3A AC
• Mounting Type: Must be Panel Mount
• Termination Style: Must be Solder Lug
• Panel Cutout Dimensions: Must accommodate 30.00mm circular cutout
• Ingress Protection: Must maintain IP40 or higher

The SCHURTER 0033.1127 meets all substitution criteria with enhanced electrical specifications and active product status.

Parameter Comparison

Engineering Selection Recommendations

The SCHURTER 0033.1127 is a direct functional substitute for the obsolete 0033.1513. Both components share identical circuit topology (SP6T), position count (6), voltage rating (250V AC), mounting configuration (panel mount with 30mm cutout), and termination method (solder lug).

The 0033.1127 provides enhanced current capacity (10A versus 6.3A), extended operating temperature range (-40°C to 85°C versus -40°C to 70°C), and maintains active product status with current manufacturing support. Both parts are ROHS3 compliant and carry appropriate regulatory approvals. The substitute part's higher current rating ensures compatibility with applications designed for the original component while providing additional design margin.

Frequently Asked Questions (FAQ)

Q: Can the 0033.1127 directly replace the 0033.1513 in existing designs?

A: Yes. Both components share identical SP6T circuit configuration, 6-position switching, 250V AC voltage rating, panel mount installation, solder lug termination, and 30mm panel cutout dimensions. The substitute part's higher current rating (10A versus 6.3A) and extended temperature range provide enhanced performance margins.

Q: What are the key compatibility factors for this substitution?

A: The critical parameters are circuit configuration (SP6T), number of positions (6), voltage rating (250V AC minimum), current rating (minimum 6.3A AC), mounting type (panel mount), termination style (solder lug), and panel cutout diameter (30mm). The 0033.1127 meets or exceeds all these requirements.

Q: Does the substitute part require any PCB or mechanical modifications?

A: No. The 0033.1127 maintains identical panel cutout dimensions (30.00mm circular) and solder lug termination, eliminating the need for mechanical or electrical redesign.

Q: What is the difference in operating temperature ranges?

A: The 0033.1513 operates from -40°C to 70°C, while the 0033.1127 extends to -40°C to 85°C. This expanded upper temperature limit provides additional thermal margin for applications in elevated ambient conditions.

Q: Are both parts RoHS compliant?

A: Yes. Both the 0033.1513 and 0033.1127 are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards.
