SCHURTER 0031.8231.15 OGD Fuseholder Equivalent & Substitute Parts

Part Overview

The SCHURTER 0031.8231.15 is a fuse block cartridge holder designed for 16 A, 600V applications with single-circuit configuration. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing system maintenance and new design implementations. The substitute part maintains identical electrical and mechanical specifications while offering current product availability and active manufacturer support.

Substiute Parts

0031.8231.15

SCHURTER Inc.In Stock: 10680031.8231.15 Datasheet

Current PartRFQ

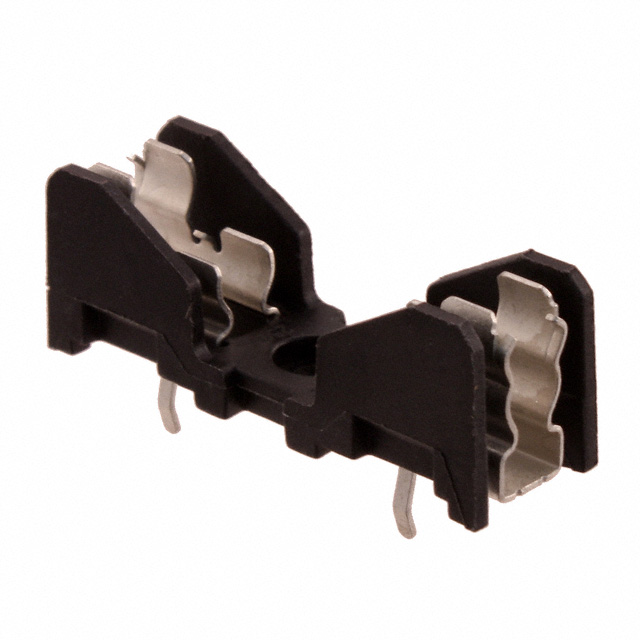

0031.8231

SCHURTER Inc.In Stock: 431180031.8231 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of SCHURTER 0031.8231.15 with SCHURTER 0031.8231 is based on strict equivalence across all critical electrical and mechanical parameters:

Matching Parameters:

• Current Rating: 16 A (identical)
• Voltage Rating: 600V (identical)
• Fuse Size: 5mm x 20mm / 6.35mm x 32mm (identical)
• Fuse Type: Cartridge (identical)
• Number of Circuits: 1 (identical)
• Mounting Type: Through Hole (identical)
• Termination Style: PC Pin (identical)
• Orientation: Horizontal (identical)
• Contact Material: Copper Alloy (identical)
• Contact Finish: Tin (identical)
• Series: OGD (identical)

The substitute part 0031.8231 differs only in product status (Active vs. Obsolete) and packaging configuration (Bulk vs. standard), with no functional or electrical deviations.

Parameter Comparison

Engineering Selection Recommendations

SCHURTER 0031.8231 is the direct active equivalent for obsolete part 0031.8231.15. Both components maintain identical electrical performance specifications (16 A, 600V) and mechanical form factors (Through Hole, PC Pin termination, Horizontal orientation). Both parts satisfy ROHS3 compliance and REACH unaffected status, ensuring regulatory alignment for current applications.

Selection of the active part 0031.8231 is appropriate for new designs, system upgrades, and replacement scenarios where component availability is a requirement. The obsolete designation of 0031.8231.15 indicates discontinued manufacturing, making the active equivalent the standard choice for procurement.

Frequently Asked Questions (FAQ)

Q: Can SCHURTER 0031.8231 directly replace SCHURTER 0031.8231.15 in existing applications?

A: Yes. Both parts are electrically and mechanically identical across all specified parameters: 16 A current rating, 600V voltage rating, 5mm x 20mm fuse size, single-circuit cartridge configuration, Through Hole mounting, and PC Pin termination. No circuit modifications are required.

Q: What is the difference between these two part numbers?

A: The primary difference is product status. Part 0031.8231.15 is obsolete and no longer manufactured. Part 0031.8231 is the active equivalent with current production and inventory availability. Packaging differs (standard vs. Bulk), but electrical and mechanical specifications are identical.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both SCHURTER 0031.8231.15 and SCHURTER 0031.8231 are ROHS3 Compliant and REACH Unaffected, meeting current environmental and regulatory requirements.

Q: What fuse types are compatible with these fuseholders?

A: Both parts accept 3AG cartridge fuses in 5mm x 20mm (0.25" Dia x 1.26" L) or 6.35mm x 32mm dimensions, rated for 16 A operation at 600V.

Q: Is the Through Hole mounting orientation fixed?

A: Yes. Both parts feature Horizontal orientation with PC Pin termination for Through Hole PCB mounting. Orientation and mounting type are identical between the two parts.
