Molex 0022552363 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0022552363 is a 36-position receptacle housing connector with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This component belongs to the SL 70450 series and features crimp-type female socket contacts with polyester glass-filled insulation. The part is active in production and ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct replacement in applications where connector housing compatibility is required.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	36
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-40°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the Molex 0022552363 are qualified based on the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (36), pitch (0.100"/2.54mm), number of rows (2), row spacing (0.100"/2.54mm), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitutes maintain these core electrical and mechanical specifications, ensuring functional compatibility in equivalent applications. Variations in insulation material, operating temperature range, color, and series designation do not preclude substitution when the primary parameters align.

Parameter Comparison

Parameter	0022552363 (Molex SL 70450)	0022552361 (Molex SL 70450)	0901430036 (Molex C-Grid III 90143)	65043-019LF (Amphenol ICC Mini-PV)	65239-018LF (Amphenol ICC DUBOX)
Manufacturer	Molex	Molex	Molex	Amphenol ICC (FCI)	Amphenol ICC (FCI)
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	36	36	36	36	36
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Color	Black	Black	Black	Black	Blue
Operating Temperature Range	-40°C ~ 105°C	-40°C ~ 105°C	-55°C ~ 105°C	-40°C ~ 105°C	-65°C ~ 125°C
Insulation Material	Polyester, Glass Filled	Polyester, Glass Filled	Polyphenylene Oxide (PPO)	Polyphenylene, Modified	Thermoplastic, Glass Filled
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Affected	REACH Unaffected

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with RoHS regulations. The Molex parts (0022552363, 0022552361, and 0901430036) are ROHS3 compliant with REACH unaffected status. The Amphenol ICC parts (65043-019LF and 65239-018LF) are RoHS compliant; 65043-019LF carries REACH affected status while 65239-018LF is REACH unaffected.

For applications requiring the original operating temperature range of -40°C to 105°C, the Molex 0022552361 provides direct equivalence within the same series. The Molex 0901430036 extends the lower temperature limit to -55°C, suitable for expanded thermal environments. The Amphenol ICC 65239-018LF offers the widest operating range (-65°C to 125°C) and should be selected when extended thermal performance is required, noting the blue color variant.

Selection between Molex and Amphenol ICC manufacturers depends on supply chain requirements and regulatory compliance needs specific to the application region.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0022552361 directly replace the 0022552363?

A: Yes. Both parts share identical electrical and mechanical specifications: 36-position receptacle housing, 0.100" pitch, 2-row configuration, crimp termination, and operating range of -40°C to 105°C. Both are ROHS3 compliant and REACH unaffected.

Q: What is the primary difference between the Molex 0901430036 and the main part?

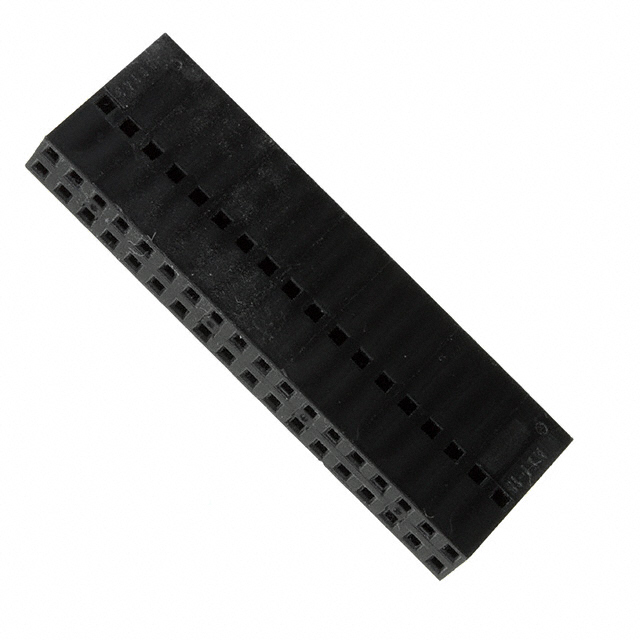

A: The 0901430036 belongs to the C-Grid III 90143 series and uses polyphenylene oxide (PPO) insulation instead of polyester glass-filled material. It extends the lower operating temperature to -55°C. All other electrical and mechanical parameters remain equivalent.

Q: Why does the Amphenol ICC 65239-018LF have a blue color instead of black?

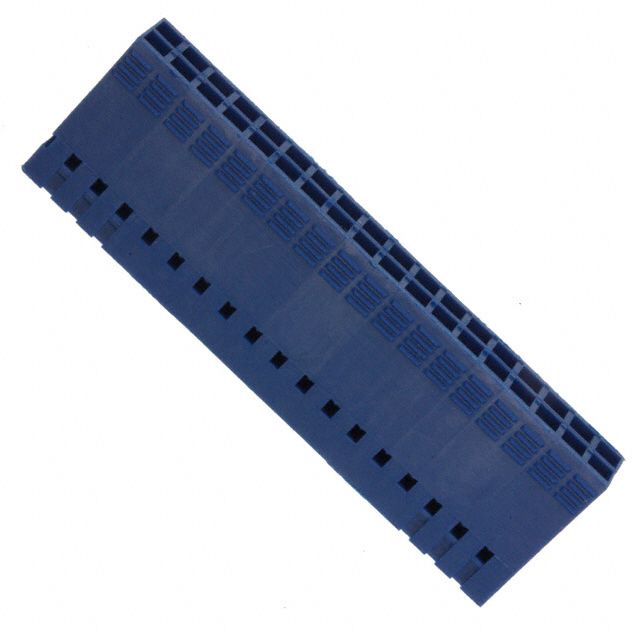

A: Color is a cosmetic parameter that does not affect electrical or mechanical function. The blue housing is a design variant of the Amphenol ICC DUBOX series. Selection should be based on application requirements and visual identification needs.

Q: Are the Amphenol ICC parts suitable for REACH-regulated applications?

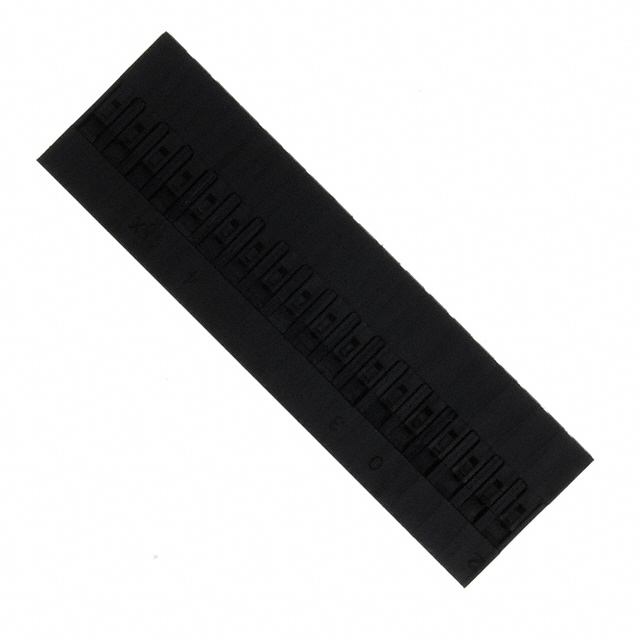

A: The 65043-019LF carries REACH affected status and requires compliance verification for specific applications. The 65239-018LF is REACH unaffected. Regulatory requirements vary by application region and should be confirmed during design phase.

Q: What is the significance of the operating temperature range differences?

A: The main part and most substitutes operate from -40°C to 105°C. The Molex 0901430036 extends to -55°C, and the Amphenol ICC 65239-018LF extends to -65°C to 125°C. Selection depends on the thermal environment of the application.

Q: Do all substitute parts require the same contact specifications?

A: Yes. All parts are 36-position receptacle housings with female socket contacts and crimp termination. Contacts are not included with any housing and must be sourced separately according to application requirements.
