Molex 0022012035 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

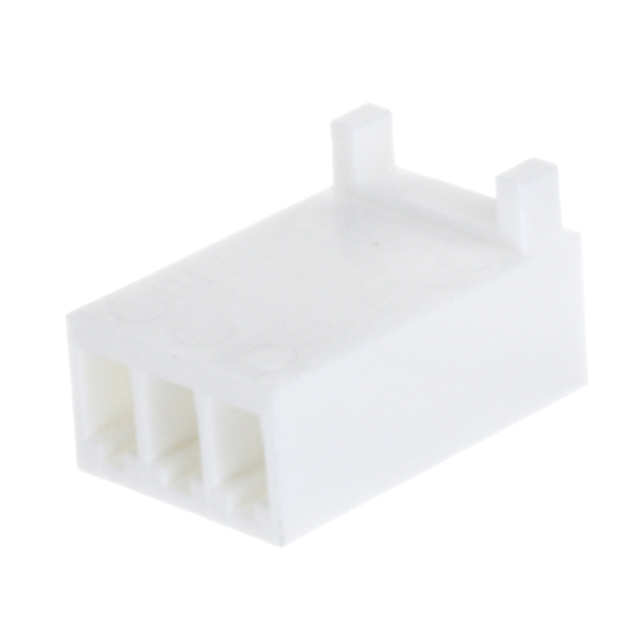

The Molex 0022012035 is a 3-position rectangular connector housing with 0.100" (2.54mm) pitch, designed for free-hanging in-line applications. This component is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance requirements. The housing features a polarizing key and locking ramp fastening mechanism, with crimp-type contact termination. Substitute parts must maintain electrical and mechanical compatibility while meeting current availability and compliance requirements.

Substiute Parts

0022012035

MolexIn Stock: 8830022012035 Datasheet

Current PartRFQ

0022013037

MolexIn Stock: 2329070022013037 Datasheet

DirectRFQ

1375820-3

TE Connectivity AMP ConnectorsIn Stock: 103121375820-3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Molex 0022012035 are qualified based on the following critical parameters that determine functional and mechanical compatibility:

Primary Compatibility Criteria:

• Connector type: Receptacle
• Number of positions: 3
• Pitch: 0.100" (2.54mm)
• Number of rows: 1
• Mounting type: Free Hanging (In-Line)
• Contact termination: Crimp
• Fastening type: Locking Ramp
• Polarizing key feature: Present

Identified Substitutes:

1. Molex 0022013037 - Direct manufacturer equivalent with identical electrical and mechanical specifications. Differs only in color (white vs. natural) and series designation. Active product status with high inventory availability.

2. TE Connectivity AMP Connectors 1375820-3 - Cross-manufacturer substitute from TE Connectivity. Maintains all critical compatibility parameters including pitch, position count, mounting type, and fastening mechanism. Operates across an extended temperature range (-55°C to 105°C vs. -40°C to 105°C).

Parameter Comparison

Engineering Selection Recommendations

Molex 0022013037 is the primary substitute for the obsolete Molex 0022012035. Both parts are manufactured by Molex, share identical electrical and mechanical specifications, and maintain ROHS3 compliance. The transition from natural to white color does not affect functional performance. This part is currently in active production with substantial inventory availability (232,814 pcs), ensuring supply chain continuity.

TE Connectivity AMP Connectors 1375820-3 serves as a secondary cross-manufacturer substitute. This part maintains all critical compatibility parameters and is also in active production status. The extended operating temperature range (-55°C to 105°C) provides additional thermal margin compared to the Molex alternative. Glass-filled nylon insulation material offers enhanced mechanical properties. This option is suitable for applications requiring cross-manufacturer qualification or extended environmental performance specifications.

Both substitutes comply with RoHS regulations and maintain MSL 1 rating, ensuring compatibility with standard manufacturing and storage conditions.

Frequently Asked Questions (FAQ)

Q: Can Molex 0022013037 be used as a direct replacement for Molex 0022012035?

A: Yes. Both parts share identical electrical and mechanical specifications including connector type, position count, pitch, mounting configuration, and fastening mechanism. The color difference (white vs. natural) does not affect electrical performance or mechanical compatibility.

Q: What are the key differences between the Molex and TE Connectivity substitutes?

A: The primary differences are manufacturer origin and operating temperature range. TE Connectivity 1375820-3 operates from -55°C to 105°C compared to Molex 0022013037 at -40°C to 105°C. The TE Connectivity housing uses glass-filled nylon insulation versus standard nylon in the Molex part. Both maintain identical pitch, position count, and fastening specifications.

Q: Are there packaging considerations when selecting a substitute?

A: Molex 0022013037 is supplied in bulk packaging. TE Connectivity 1375820-3 is also supplied in bulk packaging. Verify packaging requirements against your procurement specifications before final selection.

Q: Do these substitutes require contact compatibility verification?

A: Yes. All three housings are specified as "Contacts Not Included." Ensure that selected crimp contacts are compatible with the chosen housing and meet your application requirements independently.

Q: Which substitute should be selected for new designs?

A: For new designs, Molex 0022013037 is recommended due to identical specifications and established supply availability. TE Connectivity 1375820-3 is suitable if extended temperature range or glass-filled insulation properties are required by application specifications.
