Molex 0022011064 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0022011064 is a 6-position receptacle housing for rectangular connectors with a 0.098" (2.50mm) pitch, designed for free-hanging in-line applications. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and procurement planning. The housing accommodates crimp-terminated female socket contacts and features a locking ramp fastening mechanism. Substitute parts must maintain mechanical compatibility and electrical performance within the specified parameter tolerances.

Substiute Parts

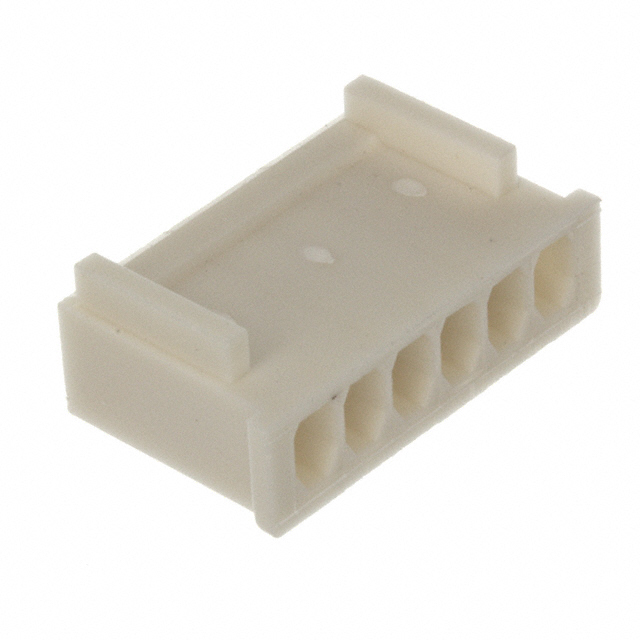

0022011064

MolexIn Stock: 11860022011064 Datasheet

Current PartRFQ

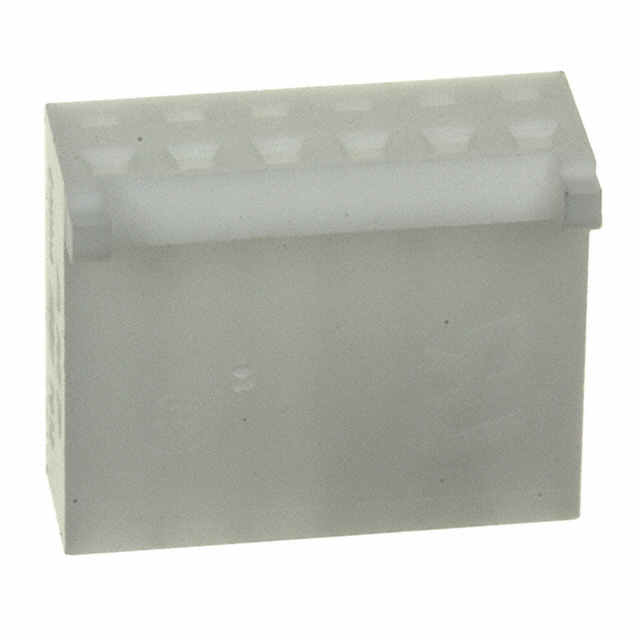

1375820-6

TE Connectivity AMP ConnectorsIn Stock: 150561375820-6 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0022011064 is determined by the following critical parameters:

• Connector Type & Contact Type: Must be receptacle with female socket contacts
• Number of Positions: Must accommodate 6 positions
• Number of Rows: Must be single-row configuration
• Mounting Type: Must support free-hanging in-line installation
• Contact Termination: Must use crimp termination method
• Fastening Type: Must feature locking ramp mechanism
• Regulatory Compliance: Must maintain ROHS3 compliance and MSL 1 rating

The TE Connectivity AMP Connectors part 1375820-6 qualifies as a substitute based on these parameters. While the pitch specification differs (0.100" vs. 0.098"), this represents a standard industry tolerance variation within the rectangular connector category and does not preclude functional substitution in applications where mechanical envelope and contact spacing allow for this tolerance.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1375820-6 is the designated manufacturer-recommended substitute for the obsolete Molex 0022011064. Both components maintain ROHS3 compliance and MSL 1 rating, ensuring regulatory continuity. The substitute part carries active product status with documented inventory availability, supporting long-term supply chain reliability.

The pitch differential (0.098" to 0.100") represents a 0.002" tolerance variation. Component selection should account for PCB layout constraints and mating connector specifications to confirm mechanical compatibility within the application's design envelope.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 1375820-6 directly replace the Molex 0022011064 in existing assemblies?

A: Direct replacement depends on PCB layout and mating connector pitch specifications. The 0.002" pitch difference must be evaluated against the application's mechanical tolerances and contact alignment requirements.

Q: Are there differences in contact compatibility between these housings?

A: Both housings accommodate crimp-terminated female socket contacts. Contact compatibility must be verified against the specific contact part numbers used in the original assembly, as housing and contact specifications are independent parameters.

Q: What is the significance of the product status change from Obsolete to Active?

A: The substitute part's active status indicates ongoing manufacturer support, documented specifications, and reliable supply chain availability. This addresses the procurement challenges associated with obsolete components.

Q: Do both parts meet the same environmental and compliance standards?

A: Both components are ROHS3 compliant with MSL 1 rating. The substitute provides an additional operating temperature specification (-55°C ~ 105°C), which may be relevant for temperature-sensitive applications.

Q: Are there packaging or inventory considerations for procurement?

A: The substitute part is available in bulk packaging with documented inventory levels, supporting both prototype and production-volume procurement requirements.
