Molex 0010897220 Equivalent & Substitute Parts

Part Overview

The Molex 0010897220 is an active rectangular connector header designed for through-hole mounting applications. This vertical 22-position connector operates at 0.100" (2.54mm) pitch and is widely used in automotive, medical, telecommunications, and general-purpose applications. The part is RoHS3 compliant and carries UL94 V-0 flammability rating. Substitute parts are identified based on matching core electrical and mechanical parameters: connector type, contact configuration, pitch, number of positions, row spacing, mounting method, and termination type.

Key Parameters

Parameter	Value
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the Molex 0010897220 are qualified based on strict equivalence across the following parameters:

Connector type (Header, Breakaway)
Contact type (Male Pin)
Pitch specification (0.100" / 2.54mm)
Position count (22 positions)
Row configuration (2 rows)
Row spacing (0.100" / 2.54mm)
Mounting method (Through Hole)
Termination method (Solder)
Fastening mechanism (Push-Pull)
Shrouding (Unshrouded)
Contact shape (Square)
Insulation color (Black)
Flammability rating (UL94 V-0)

All identified substitutes maintain these core parameters. Variations in contact length, insulation height, contact material composition, contact finish specifications, and operating temperature ranges are secondary parameters that may differ between substitutes based on application requirements.

Parameter Comparison

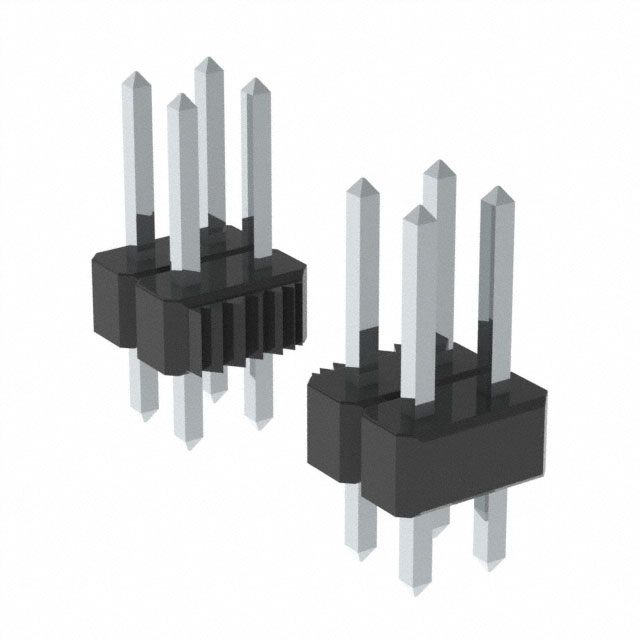

Parameter	Molex 0010897220	Amphenol ICC 77313-118-22LF	Sullins PBC11DAAN	Sullins PBC11DABN	Sullins PBC11DAEN	Sullins PEC11DAAN	Sullins PEC11DAGN
Connector Type	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	22	22	22	22	22	22	22
Number of Rows	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.240" (6.10mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)	0.230" (5.84mm)
Contact Length - Post	0.107" (2.71mm)	0.120" (3.05mm)	0.120" (3.05mm)	0.230" (5.84mm)	0.520" (13.21mm)	0.120" (3.05mm)	0.720" (18.29mm)
Overall Contact Length	0.437" (11.10mm)	0.450" (11.43mm)	0.450" (11.43mm)	0.560" (14.22mm)	0.850" (21.59mm)	0.450" (11.43mm)	1.050" (26.67mm)
Insulation Height	0.090" (2.29mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold	Gold or Gold, GXT™	Gold	Gold	Gold	Tin	Tin
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Thermoplastic	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Operating Temperature	Not specified	-65°C ~ 130°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
Current Rating (Amps)	Not specified	3A per Contact	3A	3A	3A	3A	3A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Not Applicable	Not Applicable	Not Applicable	Not Applicable	Not Applicable

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with RoHS requirements. The Molex 0010897220 is ROHS3 compliant, while Amphenol ICC 77313-118-22LF carries RoHS compliance and all Sullins parts are ROHS3 compliant. All substitutes carry UL94 V-0 flammability certification.

Selection between substitutes depends on specific application requirements related to contact post length and operating temperature range. The Amphenol ICC 77313-118-22LF supports the widest operating temperature range (-65°C to 130°C) compared to Sullins parts (-65°C to 125°C). Contact post length varies significantly across substitutes, ranging from 0.120" (3.05mm) in PBC11DAAN and PEC11DAAN to 0.720" (18.29mm) in PEC11DAGN, accommodating different PCB thickness and application geometries.

Contact finish on the mating surface differs between options: the original Molex part and most Sullins PBC and PBC variants feature gold finish, while Sullins PEC variants feature tin finish. This distinction may affect corrosion resistance and contact reliability in specific environmental conditions.

Frequently Asked Questions (FAQ)

Q: Can I substitute the Molex 0010897220 with any of the listed parts?

A: Yes. All listed parts share identical core specifications: 22-position, 2-row header configuration with 0.100" (2.54mm) pitch, through-hole solder termination, push-pull fastening, and unshrouded design. They are electrically and mechanically compatible for board-to-board or cable applications.

Q: What is the primary difference between substitute options?

A: The main differences are contact post length, operating temperature range, and contact finish material. Contact post length ranges from 0.120" to 0.720", affecting PCB mounting depth. Operating temperature ranges from -65°C to 125°C (Sullins) or -65°C to 130°C (Amphenol ICC). Contact finish varies between gold and tin on the mating surface.

Q: Which substitute should I select for high-temperature applications?

A: The Amphenol ICC 77313-118-22LF supports -65°C to 130°C, providing the highest upper temperature limit. Sullins parts support -65°C to 125°C. The original Molex part does not specify an operating temperature range.

Q: Does contact post length affect compatibility?

A: Contact post length determines the effective insertion depth into the PCB. Longer posts (PBC11DAEN at 0.520", PEC11DAGN at 0.720") are suitable for thicker PCBs or applications requiring deeper solder joints. Shorter posts (PBC11DAAN, PEC11DAAN at 0.120") are appropriate for standard PCB thicknesses. Selection depends on your specific PCB design and assembly requirements.

Q: Are all substitutes RoHS compliant?

A: Yes. The original Molex 0010897220 is ROHS3 compliant. Amphenol ICC 77313-118-22LF is RoHS compliant. All Sullins substitutes (PBC11DAAN, PBC11DABN, PBC11DAEN, PEC11DAAN, PEC11DAGN) are ROHS3 compliant.

Q: What is the difference between gold and tin contact finishes?

A: The original Molex part and Sullins PBC variants feature gold mating contact finish. Sullins PEC variants feature tin mating contact finish. Gold provides superior corrosion resistance and lower contact resistance in low-signal applications. Tin is cost-effective and suitable for general-purpose applications. Selection depends on environmental exposure and signal integrity requirements.

Q: Can I mix different substitute parts in the same assembly?

A: All parts are mechanically and electrically compatible for interconnection. However, mixing parts with different contact post lengths in the same PCB assembly may create assembly challenges. Standardizing on a single part number per design is recommended for manufacturing consistency.
