Molex 0010883061 Equivalent & Substitute Parts

Part Overview

The Molex 0010883061 is a rectangular connector header designed for through-hole, right-angle board-to-board or cable applications. This 6-position, 2-row connector with 0.100" (2.54mm) pitch operates in the C-Grid 70216 series and is classified as Active product status. The connector features unshrouded male pins with solder termination and push-pull fastening, suitable for automotive, general purpose, lighting, medical, and telecommunications applications. Equivalent and substitute parts are identified based on matching core electrical and mechanical parameters to ensure functional compatibility in circuit designs.

Key Parameters

Parameter	Value
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Shrouding	Unshrouded
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the Molex 0010883061 are qualified based on the following core parameters that determine functional interchangeability:

Critical Matching Parameters:

Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 6
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Type: Male Pin
Shrouding: Unshrouded

All three substitute parts (79257-206HLF, 826634-3, and 929667-04-03-I) meet these critical parameters. Variations in contact length, insulation height, contact material, contact finish, and current rating are secondary parameters that do not prevent substitution but may affect performance characteristics in specific applications.

Parameter Comparison

Parameter	Molex 0010883061	Amphenol ICC 79257-206HLF	TE Connectivity 826634-3	3M 929667-04-03-I
Manufacturer	Molex	Amphenol ICC (FCI)	TE Connectivity AMP Connectors	3M
Series	C-Grid 70216	BERGSTIK® II	AMPMODU Mod II	929
Connector Type	Header, Breakaway	Header	Header, Breakaway	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	6	6	6	6
Number of Rows	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Termination	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Shrouding	Unshrouded	Unshrouded	Unshrouded	Unshrouded
Contact Length - Mating	0.240" (6.10mm)	0.230" (5.84mm)	0.264" (6.70mm)	0.235" (5.97mm)
Contact Length - Post	0.110" (2.79mm)	0.120" (3.05mm)	0.126" (3.20mm)	0.145" (3.68mm)
Insulation Height	0.220" (5.60mm)	0.190" (4.83mm)	0.219" (5.56mm)	0.215" (5.45mm)
Contact Material	Copper Alloy	Phosphor Bronze	Brass	Copper Alloy
Contact Finish - Mating	Tin	Gold or Gold, GXT™	Gold	Gold
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Material	Polyester, Glass Filled	Not specified	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Insulation Color	Black	Black	Green	Black
Operating Temperature	Not specified	-65°C ~ 130°C	-65°C ~ 105°C	-40°C ~ 105°C
Current Rating (Amps)	Not specified	3A	5A	2.5A
RoHS Status	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable
Product Status	Active	Active	Active	Active

Engineering Selection Recommendations

All three substitute parts maintain Active product status and comply with RoHS regulations, ensuring long-term availability and environmental compliance. The Molex 0010883061 does not specify operating temperature or current rating parameters; therefore, substitute selection should prioritize parts with defined thermal and electrical specifications.

Amphenol ICC 79257-206HLF offers the widest operating temperature range (-65°C to 130°C) and is suitable for applications requiring extended thermal performance. The BERGSTIK® II series provides gold contact finish for enhanced corrosion resistance.

TE Connectivity 826634-3 delivers the highest current rating (5A) and is appropriate for higher-power applications. The AMPMODU Mod II series uses PBT insulation material with defined mechanical properties.

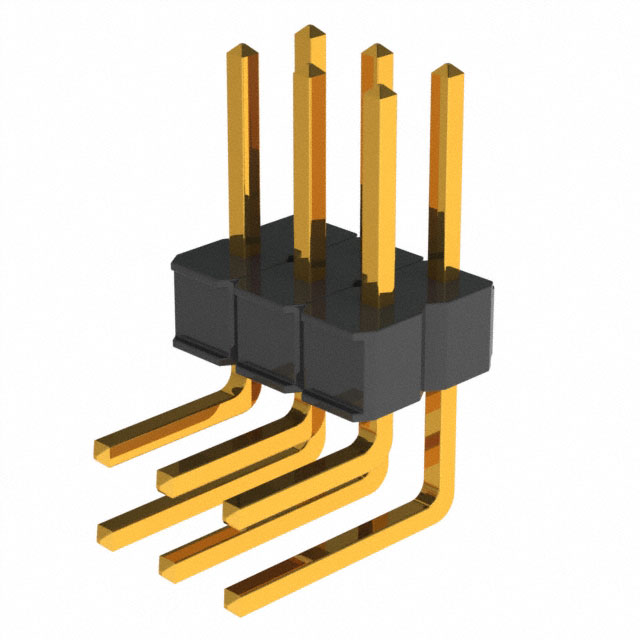

3M 929667-04-03-I provides a balanced thermal range (-40°C to 105°C) with gold-plated contacts on both mating and post surfaces, offering comprehensive corrosion protection.

All substitute parts share identical pitch, position count, row configuration, mounting orientation, and fastening mechanism with the original Molex part, ensuring mechanical and electrical compatibility in board-level applications.

Frequently Asked Questions (FAQ)

Q: Can I substitute the Molex 0010883061 with any of these three parts?

A: Yes. All three substitute parts match the critical parameters: 0.100" (2.54mm) pitch, 6 positions in 2 rows, through-hole right-angle mounting, solder termination, and push-pull fastening. Mechanical and electrical compatibility is maintained across all substitutes.

Q: What are the differences in contact length between the main part and substitutes?

A: Contact length variations range from 0.230" to 0.264" for mating contacts and 0.110" to 0.145" for post contacts. These differences are within acceptable tolerances for standard 2.54mm pitch connectors and do not affect interchangeability in typical board-to-board applications.

Q: Which substitute offers the best thermal performance?

A: The Amphenol ICC 79257-206HLF operates from -65°C to 130°C, providing the widest temperature range. The TE Connectivity 826634-3 and 3M 929667-04-03-I both support -65°C to 105°C and -40°C to 105°C respectively, suitable for standard industrial and consumer applications.

Q: Are there differences in contact finish between the main part and substitutes?

A: The Molex 0010883061 uses tin finish on mating contacts. Substitutes employ gold or gold-plated finishes, which provide superior corrosion resistance and lower contact resistance. This represents an upgrade in contact durability without affecting mechanical compatibility.

Q: What is the difference between the packaging types?

A: The Molex part ships in Tube packaging, while substitutes are supplied in Bag (Amphenol ICC) or Bulk (TE Connectivity, 3M) packaging. Packaging type does not affect connector performance or interchangeability; it only impacts handling and storage logistics.

Q: Which substitute has the highest current rating?

A: The TE Connectivity 826634-3 is rated for 5A, compared to 3A for Amphenol ICC and 2.5A for 3M. Select this part for applications requiring higher current capacity.

Q: Are all substitutes RoHS compliant?

A: Yes. All three substitute parts are RoHS Compliant, meeting environmental and regulatory requirements equivalent to the ROHS3 Compliant status of the original Molex part.

Q: What insulation materials are used in the substitute parts?

A: Amphenol ICC does not specify insulation material. TE Connectivity uses PBT (Polybutylene Terephthalate), and 3M uses PBT combined with Polyester and Glass Filled materials. The Molex original uses Polyester with Glass Filling. All materials meet UL94 V-0 flammability requirements.
