Molex 0009506185 Card Edge Connector Housing – Equivalent & Substitute Parts

Part Overview

The Molex 0009506185 is a 36-position card edge connector housing designed for 0.156" (3.96mm) pitch applications with panel mount configuration. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and procurement planning. The housing accommodates dual-edge card designs with 0.062" (1.57mm) card thickness and features a top-mount flange with unthreaded mounting holes.

Key Parameters

Parameter	Value
Manufacturer Part Number	0009506185
Manufacturer	Molex
Category	Card Edge Connectors
Number of Positions	36
Pitch	0.156" (3.96mm)
Card Type	Non Specified – Dual Edge
Card Thickness	0.062" (1.57mm)
Mounting Type	Panel Mount
Color	Black
Material – Insulation	Polyester Thermoplastic, Glass Filled
Flammability Rating	UL94 V-0
Operating Temperature Range	0°C ~ 75°C
RoHS Status	ROHS3 Compliant
Product Status	Obsolete

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0009506185 is determined by the following critical parameters:

Position Count: Must be 36 positions
Pitch: Must be 0.156" (3.96mm)
Card Type: Dual-edge configuration
Mounting Configuration: Panel mount with flange
Color: Black insulation
Insulation Material: Polyester thermoplastic, glass-filled
Flammability Rating: UL94 V-0 minimum
Card Thickness Compatibility: Substitute must accommodate the 0.062" (1.57mm) card thickness within its specified range

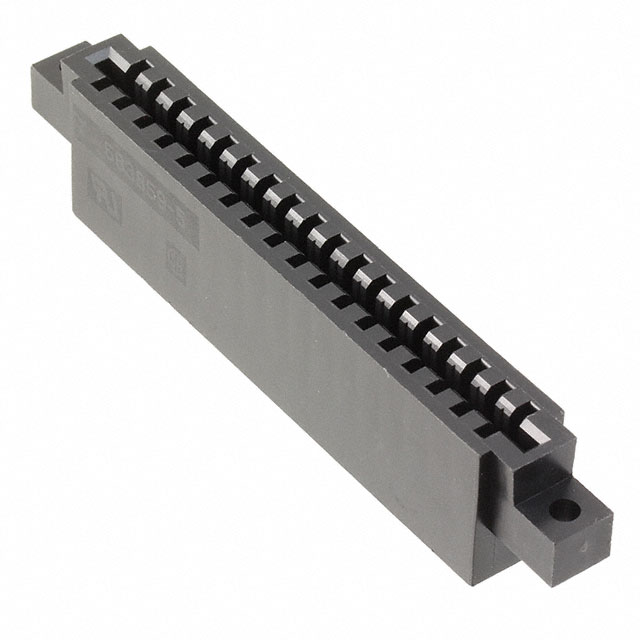

The TE Connectivity AMP Connectors part 583859-5 meets these substitution criteria. While the substitute accommodates a broader card thickness range (0.055" ~ 0.070"), this range includes the original specification of 0.062" (1.57mm), ensuring mechanical compatibility. Both parts maintain identical pitch, position count, mounting type, and flammability certification.

Parameter Comparison

Parameter	Molex 0009506185	TE Connectivity 583859-5	Compatibility
Number of Positions	36	36	Match
Pitch	0.156" (3.96mm)	0.156" (3.96mm)	Match
Card Type	Non Specified – Dual Edge	Non Specified – Dual Edge	Match
Card Thickness	0.062" (1.57mm)	0.055" ~ 0.070" (1.40mm ~ 1.78mm)	Compatible
Mounting Type	Panel Mount	Panel Mount	Match
Color	Black	Black	Match
Material – Insulation	Polyester Thermoplastic, Glass Filled	Polyester Thermoplastic, Glass Filled	Match
Flammability Rating	UL94 V-0	UL94 V-0	Match
Operating Temperature Range	0°C ~ 75°C	-40°C ~ 85°C	Substitute exceeds original
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Match
Product Status	Obsolete	Active	Substitute is active

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 583859-5 is the designated manufacturer-recommended substitute for the obsolete Molex 0009506185. Selection of this substitute is supported by the following factors:

Functional Equivalence: All critical electrical and mechanical parameters align with the original specification, including position count, pitch, card type, and mounting configuration.
Compliance Certification: Both parts maintain UL94 V-0 flammability rating and ROHS3 compliance, ensuring regulatory continuity.
Active Product Status: The substitute is an active product with confirmed inventory availability (1314 pcs), eliminating future obsolescence risk associated with the original part.
Enhanced Operating Range: The substitute supports an extended operating temperature range (-40°C ~ 85°C) compared to the original (0°C ~ 75°C), providing additional thermal margin for demanding applications.
Card Thickness Accommodation: The substitute's card thickness tolerance (0.055" ~ 0.070") encompasses the original specification (0.062"), ensuring direct mechanical compatibility without design modification.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 583859-5 be used as a direct replacement for the Molex 0009506185 in existing designs?

A: Yes. The substitute meets all critical substitution parameters: identical position count (36), pitch (0.156"), card type (dual-edge), mounting configuration (panel mount), and flammability rating (UL94 V-0). The card thickness tolerance of the substitute includes the original specification, confirming mechanical compatibility.

Q: What is the significance of the card thickness tolerance difference?

A: The original Molex part specifies a fixed card thickness of 0.062" (1.57mm). The TE Connectivity substitute accommodates a range of 0.055" ~ 0.070" (1.40mm ~ 1.78mm). This broader tolerance includes the original specification, ensuring the substitute will function correctly with cards designed for the original connector.

Q: Are there compliance or certification differences between the two parts?

A: Both parts are ROHS3 compliant and carry UL94 V-0 flammability certification. No compliance gaps exist between the original and substitute.

Q: Why does the substitute have a wider operating temperature range?

A: The TE Connectivity substitute (-40°C ~ 85°C) supports a broader temperature envelope than the original Molex part (0°C ~ 75°C). This represents an enhancement in thermal capability and does not create compatibility issues for applications within the original temperature range.

Q: Is the substitute available in the same packaging as the original?

A: The substitute is supplied in bulk packaging. Packaging format should be confirmed against procurement requirements for your application.

Q: What is the REACH status difference, and does it affect substitution?

A: The original part lists REACH Status as "REACH Unaffected," while the substitute shows "Vendor Undefined." Both designations indicate no regulatory restriction on use. Confirm final REACH documentation with the supplier if required for your compliance documentation.
