Molex 0003061092 Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The Molex 0003061092 is a 9-position rectangular connector receptacle housing with 0.145" (3.68mm) pitch, designed for free-hanging in-line applications. This component is part of the 1625 series and features a natural polyamide (PA66) insulation material with crimp contact termination and locking ramp fastening. The part is currently active in production with 1111 units in stock. Alternative equivalent parts may be required due to supply constraints, design standardization across manufacturing facilities, or procurement optimization.

Substiute Parts

0003061092

MolexIn Stock: 11280003061092 Datasheet

Current PartRFQ

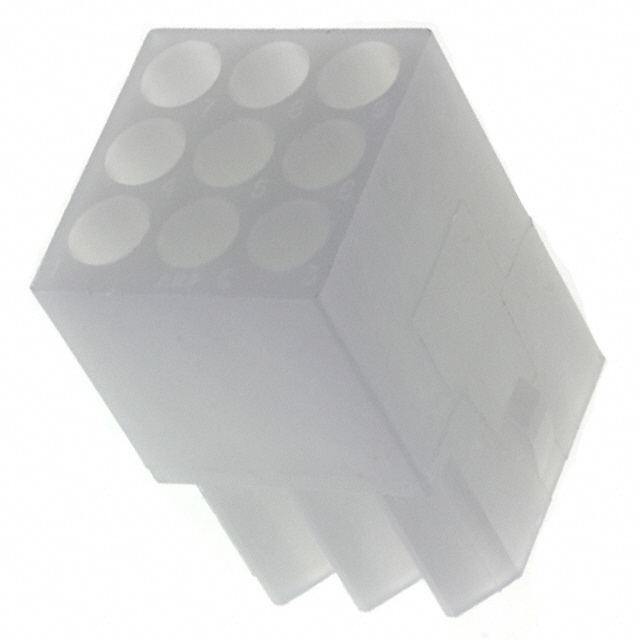

770429-1

TE Connectivity AMP ConnectorsIn Stock: 4830770429-1 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the Molex 0003061092 is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Number of positions (9)
• Pitch specification (0.145" / 3.68mm)
• Row configuration (3 rows with 0.145" spacing)
• Mounting method (Free Hanging In-Line)
• Contact termination method (Crimp)
• Fastening mechanism (Locking Ramp)
• Insulation material compatibility (Polyamide/Nylon)
• Color (Natural)
• Operating temperature range capability
• Regulatory compliance (RoHS, REACH, ECCN classification)

The TE Connectivity AMP Connectors part 770429-1 meets all substitution criteria as a manufacturer-recommended equivalent.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 770429-1 is a direct functional equivalent to the Molex 0003061092 based on identical electrical and mechanical specifications. Both parts are active products with current manufacturing status and full regulatory compliance. The TE Connectivity part offers an extended operating temperature range at the low end (-55°C versus -40°C), providing additional thermal margin for applications requiring lower temperature operation. Both parts carry equivalent RoHS and ECCN classifications, ensuring compliance with export and environmental regulations. Selection between these parts should be based on availability, lead time, and procurement requirements, as all functional parameters are equivalent.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 770429-1 be used as a direct replacement for the Molex 0003061092?

A: Yes. Both parts are 9-position receptacle housings with identical pitch (0.145"), row configuration, mounting method, contact termination, and fastening mechanism. All critical electrical and mechanical parameters are equivalent.

Q: Are there any temperature-related differences between these parts?

A: The TE Connectivity 770429-1 operates from -55°C to 105°C, while the Molex 0003061092 operates from -40°C to 105°C. The TE part provides extended low-temperature capability. Both meet the upper temperature limit of 105°C.

Q: Do both parts require the same contact specifications?

A: Yes. Both housings are designed for crimp termination contacts and are compatible with the same contact pin and socket specifications. Contacts are not included with either housing.

Q: Are there any packaging or inventory differences?

A: Both parts are supplied in bulk packaging. Current inventory shows 1111 units of the Molex part and 4796 units of the TE Connectivity part available.

Q: What regulatory certifications apply to both parts?

A: Both parts are RoHS compliant, classified as EAR99 for export control, and assigned HTSUS code 8538.90.6000. Both carry Moisture Sensitivity Level 1 (Unlimited), indicating no special moisture handling requirements.

Q: Can these parts be intermixed in the same assembly?

A: Yes. Since all functional parameters are equivalent, both parts can be used interchangeably within the same design or assembly without modification to mating connectors or contact specifications.
