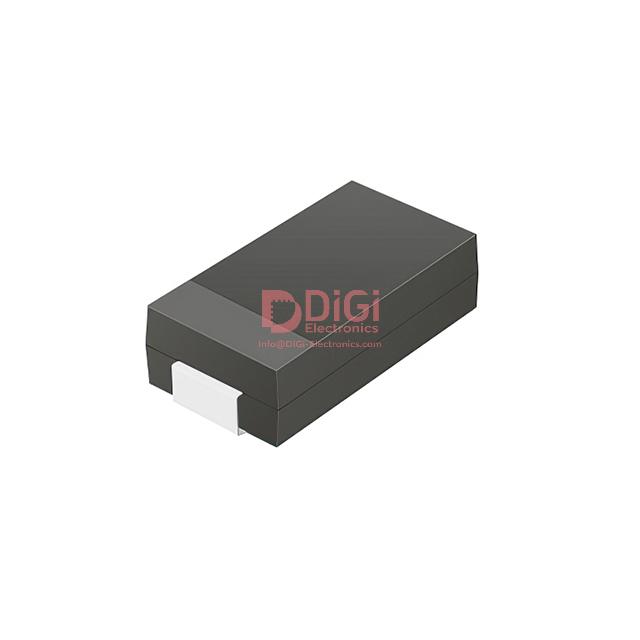

RS3JB-HF
Comchip Technology
DIODE GP 600V 3A SMB/DO-214AA
3300 Pcs New Original In Stock
Diode 600 V 3A Surface Mount SMB/DO-214AA
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (495 Ratings)
RS3JB-HF
Product Overview
12948111
DiGi Electronics Part Number
RS3JB-HF-DGManufacturer
Comchip Technology
RS3JB-HF
Description
DIODE GP 600V 3A SMB/DO-214AAInventory
3300 Pcs New Original In Stock
Diode 600 V 3A Surface Mount SMB/DO-214AA
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
RS3JB-HF Technical Specifications
Category
Diodes, Rectifiers, Single Diodes
Packaging
Tape & Reel (TR)
Series
-
Product Status
Active
Technology
Standard
Voltage - DC Reverse (Vr) (Max)
600 V
Current - Average Rectified (Io)
3A
Voltage - Forward (Vf) (Max) @ If
1.3 V @ 3 A
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)
250 ns
Current - Reverse Leakage @ Vr
5 µA @ 600 V
Capacitance @ Vr, F
40pF @ 4V, 1MHz
Mounting Type
Surface Mount
Package / Case
DO-214AA, SMB
Supplier Device Package
SMB/DO-214AA
Operating Temperature - Junction
-55°C ~ 150°C
Base Product Number
RS3J
Datasheet & Documents
HTML Datasheet
RS3JB-HF-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8541.10.0080
Additional Information
Other Names
-1256-RS3JB-HFTR
641-RS3JB-HFCT
641-RS3JB-HFDKR
-1256-RS3JB-HFCT
-1256-RS3JB-HFDKR
641-RS3JB-HFTR
Standard Package
3,000
