TE Connectivity AMP Connectors

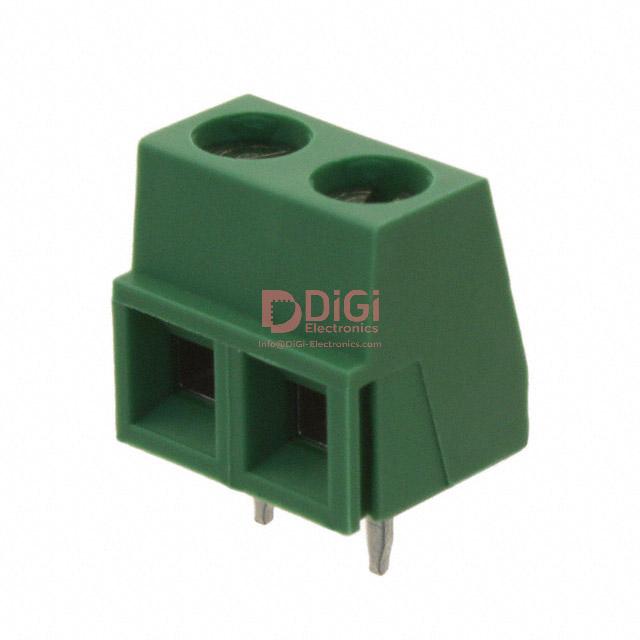

TERM BLK 2POS SIDE ENTRY 5MM PCB
120292 Pcs New Original In Stock
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (443 Ratings)
282836-2
Product Overview
8761736
DiGi Electronics Part Number
282836-2-DGManufacturer
TE Connectivity AMP Connectors
282836-2
Description
TERM BLK 2POS SIDE ENTRY 5MM PCBInventory
120292 Pcs New Original In Stock
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
282836-2 Technical Specifications
Category
Terminal Blocks, Wire to Board
Packaging
Bulk
Series
Buchanan
Product Status
Active
Number of Levels
1
Positions Per Level
2
Pitch
0.197" (5.00mm)
Mating Orientation
Horizontal with Board
Current
13.5 A
Voltage
300 V
Wire Gauge
16-30 AWG
Mounting Type
Through Hole
Wire Termination
Screw - Rising Cage Clamp
Features
Interlocking (Side)
Color
Green
Operating Temperature
-
Housing Material
Polyamide (PA66), Nylon 6/6
Contact Material - Plating
Brass - Tin Plated
Clamp Material - Plating
Brass - Nickel Plated
Screw Material - Plating
Brass - Nickel Plated
Torque - Screw
0.68 Nm (6 Lb-In)
Screw Thread
M3
Base Product Number
282836
Datasheet & Documents
Product Drawings
282836 Drawing
HTML Datasheet
282836-2-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8536.90.4000
Additional Information
Other Names
2266-282836-2
2828362
A98076
-282836-2-SI
-282836-2-LSI
5ULV-02B
Standard Package
300
Alternative Parts
PART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Reviews
5.0/5.0-(Show up to 5 Ratings)
December 02, 2025
不僅產品價格實惠，他們的售後服務也讓我感到非常貼心，值得信賴。
December 02, 2025
Une expérience satisfaisante avec des produits abordables.
December 02, 2025
Extrem zügige Lieferung und professioneller Kundenservice.
December 02, 2025
Die Website ist super übersichtlich, und der Versand ging extrem schnell.
December 02, 2025
商品品質の一貫性と手頃な価格に大変満足しています。
December 02, 2025
I am very satisfied with DiGi Electronics' after-sales service; they are always ready to assist.
December 02, 2025
Their after-sales support ensures minimal disruptions in our operations.
December 02, 2025
Their professional approach reassures me that I’m in good hands.
December 02, 2025
Fast, reliable delivery combined with excellent post-purchase support.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
Can the 282836-2 terminal block safely handle 13.5 A continuous current in a high-density PCB layout with adjacent heat-generating components, and what derating considerations should I apply?
While the 282836-2 is rated for 13.5 A at standard conditions (20°C ambient, free air), real-world PCB integration often involves elevated temperatures and thermal coupling from nearby components like regulators or power FETs. In dense layouts, derate the current by 15–20% to avoid localized overheating of the polyamide housing or contact degradation. Use thermal imaging during prototyping and ensure adequate copper pour around through-hole pins to dissipate heat. Avoid mounting the 282836-2 directly downstream of high-wattage devices without airflow or spacing buffers.
Is the 282836-2 compatible as a drop-in replacement for the Phoenix Contact 1756286 terminal block in a 5 mm pitch, 2-position through-hole application?
The 282836-2 shares the same 5.00 mm pitch, 2-position configuration, and through-hole mounting as the Phoenix Contact 1756286, making it mechanically compatible in most PCB footprints. However, the 282836-2 uses a rising cage clamp with M3 screws (0.68 Nm torque), while the 1756286 employs a screw-cage mechanism with slightly different torque specs (0.5–0.6 Nm). Verify screwdriver access and torque tool calibration to prevent over-tightening. Also, confirm wire entry angle—both are side-entry, but minor housing geometry differences may affect cable routing in tight enclosures. Always validate mating force and vibration resistance in your specific assembly.
What are the long-term reliability risks of using the 282836-2 in high-vibration industrial environments, and how does its interlocking feature mitigate failure modes?
In high-vibration settings (e.g., motor drives, conveyor systems), the 282836-2’s interlocking side feature helps prevent adjacent blocks from shifting or loosening, reducing the risk of misalignment and intermittent connections. However, the screw-based rising cage clamp—while robust—can still loosen over time if not properly torqued or secured. To mitigate this, apply thread-locking adhesive (e.g., Loctite 222) to the M3 screws and perform periodic maintenance checks. Additionally, use strain relief on input wires to minimize mechanical stress on the clamp interface. The nickel-plated brass contacts offer good corrosion resistance, but in humid or chemically aggressive environments, consider conformal coating the PCB around the 282836-2.
How does the 282836-2 perform with solid vs. stranded wire in the 16–30 AWG range, and what are the risks of improper termination?
The 282836-2’s rising cage clamp is optimized for stranded wire (16–30 AWG), which conforms well under screw pressure and maintains reliable contact over thermal cycles. Solid wire can be used but poses a higher risk of cold flow or cracking at the termination point due to rigidity and repeated board flexing. If using solid wire, strip carefully to avoid nicking conductors and torque the M3 screw to exactly 0.68 Nm—over-tightening can fracture solid strands, while under-tightening increases contact resistance. For mission-critical applications, prefer stranded wire with ferrules to enhance grip and reduce fraying, ensuring long-term stability of the 282836-2 connection.
Can the 282836-2 be used in a 240 VAC mains-powered control panel without violating creepage and clearance requirements, given its 300 V rating and nylon 6/6 housing?
The 282836-2’s 300 V rating and polyamide (PA66) housing meet basic insulation requirements for 240 VAC applications under IEC 60664-1, but creepage and clearance depend on your PCB layout and pollution degree. With a 5 mm pitch, the 282836-2 provides ~2.5 mm between adjacent pins—sufficient for Pollution Degree 2 indoors, but marginal for harsh industrial environments. Increase safety by adding slots (mouse bites) in the PCB between pins or using conformal coating to boost surface insulation resistance. Always perform hipot testing (e.g., 1500 VAC for 60 sec) during certification. Do not rely solely on component ratings—system-level insulation coordination is critical when deploying the 282836-2 in mains-connected designs.
