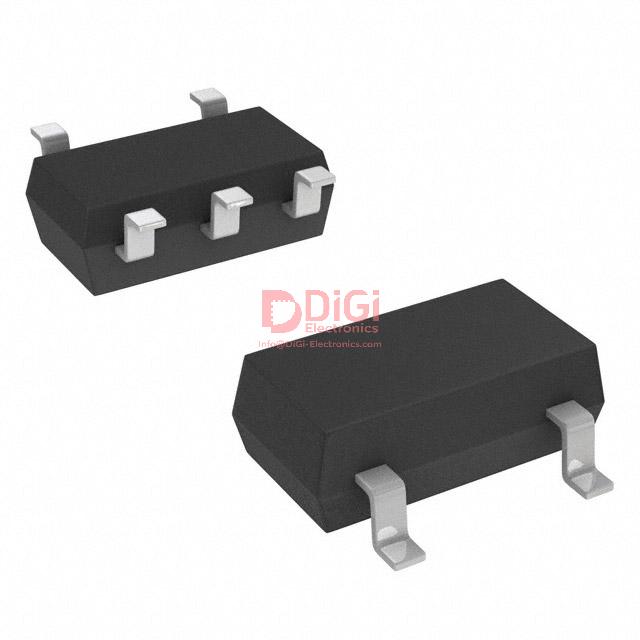

PQ1U321M2ZPH
Sharp Microelectronics
IC REG LINEAR 3.2V 150MA SOT23-5
902 Pcs New Original In Stock
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (356 Ratings)
PQ1U321M2ZPH
Product Overview
7929617
DiGi Electronics Part Number
PQ1U321M2ZPH-DGManufacturer
Sharp Microelectronics
PQ1U321M2ZPH
Description
IC REG LINEAR 3.2V 150MA SOT23-5Inventory
902 Pcs New Original In Stock
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
PQ1U321M2ZPH Technical Specifications
Category
Power Management (PMIC), Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging
-
Series
-
Product Status
Obsolete
Output Configuration
Positive
Output Type
Fixed
Number of Regulators
1
Voltage - Input (Max)
16V
Voltage - Output (Min/Fixed)
3.2V
Voltage - Output (Max)
-
Voltage Dropout (Max)
0.4V @ 150mA
Current - Output
150mA
Current - Quiescent (Iq)
200 µA
PSRR
70dB (400Hz)
Control Features
Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-30°C ~ 80°C
Mounting Type
Surface Mount
Package / Case
SC-74A, SOT-753
Supplier Device Package
SOT-23-5
Base Product Number
PQ1U
Datasheet & Documents
HTML Datasheet
PQ1U321M2ZPH-DG
Environmental & Export Classification
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Standard Package
3,000
