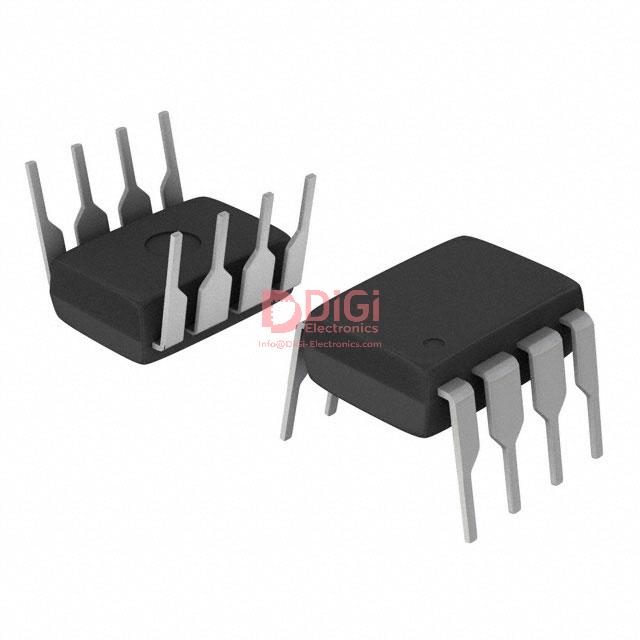

PC827CD
Sharp Microelectronics
OPTOISOLATOR 5KV 2CH TRANS 8DIP
793 Pcs New Original In Stock
Optoisolator Transistor Output 5000Vrms 2 Channel 8-DIP
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (163 Ratings)
PC827CD
Product Overview
7925428
DiGi Electronics Part Number
PC827CD-DGManufacturer
Sharp Microelectronics
PC827CD
Description
OPTOISOLATOR 5KV 2CH TRANS 8DIPInventory
793 Pcs New Original In Stock
Optoisolator Transistor Output 5000Vrms 2 Channel 8-DIP
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
PC827CD Technical Specifications
Category
Optoisolators, Transistor, Photovoltaic Output Optoisolators
Packaging
-
Series
-
Product Status
Obsolete
Number of Channels
2
Voltage - Isolation
5000Vrms
Current Transfer Ratio (Min)
200% @ 5mA
Current Transfer Ratio (Max)
600% @ 5mA
Turn On / Turn Off Time (Typ)
-
Rise / Fall Time (Typ)
4µs, 3µs
Input Type
DC
Output Type
Transistor
Voltage - Output (Max)
35V
Current - Output / Channel
50mA
Voltage - Forward (Vf) (Typ)
1.2V
Current - DC Forward (If) (Max)
50 mA
Vce Saturation (Max)
200mV
Operating Temperature
-30°C ~ 100°C
Mounting Type
Through Hole
Package / Case
8-DIP (0.300", 7.62mm)
Supplier Device Package
8-DIP
Datasheet & Documents
Datasheets
Download PC827CD Product Specification (PDF)
HTML Datasheet
PC827CD-DG
Environmental & Export Classification
RoHS Status
RoHS non-compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8541.49.8000
Additional Information
Other Names
425-1485-5
Standard Package
50
