SC1592IMTRT
Semtech Corporation

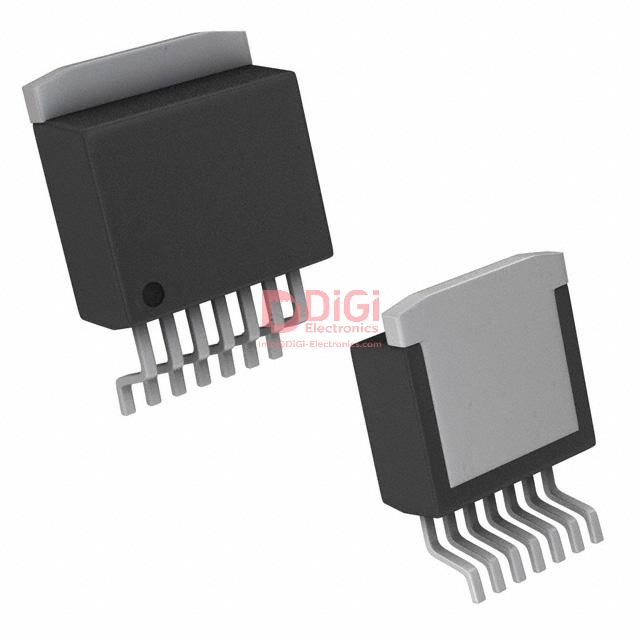

IC REG LINEAR POS ADJ 3A TO263-7
1185 Pcs New Original In Stock
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-7 (DDPAK)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (112 Ratings)
SC1592IMTRT
Product Overview
7214659
DiGi Electronics Part Number
SC1592IMTRT-DGManufacturer
Semtech Corporation
SC1592IMTRT
Description
IC REG LINEAR POS ADJ 3A TO263-7Inventory
1185 Pcs New Original In Stock
Linear Voltage Regulator IC Positive Adjustable 1 Output 3A TO-263-7 (DDPAK)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SC1592IMTRT Technical Specifications
Category
Power Management (PMIC), Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging
-
Series
-
Product Status
Obsolete
Output Configuration
Positive
Output Type
Adjustable
Number of Regulators
1
Voltage - Input (Max)
16V
Voltage - Output (Min/Fixed)
0.8V
Voltage - Output (Max)
15.48V
Voltage Dropout (Max)
0.52V @ 3A
Current - Output
3A
Current - Quiescent (Iq)
8 mA
Current - Supply (Max)
24 mA
PSRR
-
Control Features
Current Limit, Enable
Protection Features
Over Current, Over Temperature
Operating Temperature
-40°C ~ 125°C
Mounting Type
Surface Mount
Package / Case
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Supplier Device Package
TO-263-7 (DDPAK)
Base Product Number
SC1592
Datasheet & Documents
HTML Datasheet
SC1592IMTRT-DG
Environmental & Export Classification
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
SC1592IMCT
SC1592IMTR
SC1592IMDKR
Standard Package
800
