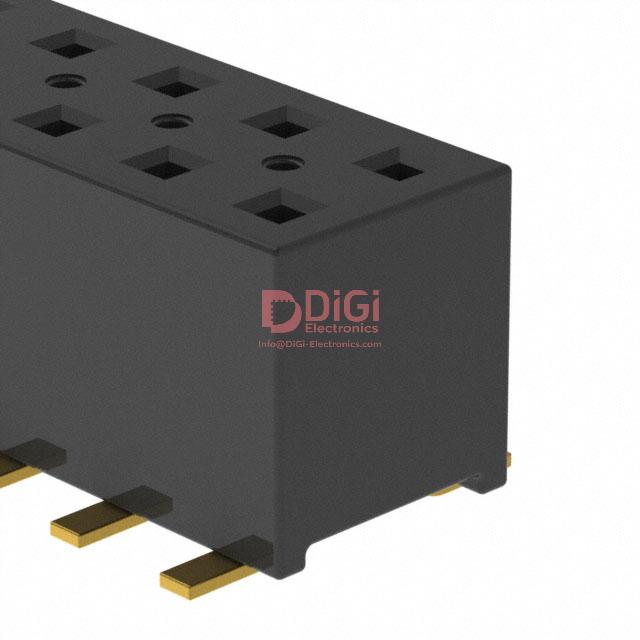

TLE-114-01-G-DV-P
Samtec Inc.
CONN RCPT 28POS 0.079 GOLD SMD
805 Pcs New Original In Stock
28 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (210 Ratings)
TLE-114-01-G-DV-P
Product Overview
5936070
DiGi Electronics Part Number
TLE-114-01-G-DV-P-DGManufacturer
Samtec Inc.
TLE-114-01-G-DV-P
Description
CONN RCPT 28POS 0.079 GOLD SMDInventory
805 Pcs New Original In Stock
28 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
TLE-114-01-G-DV-P Technical Specifications
Category
Rectangular Connectors, Headers, Receptacles, Female Sockets
Packaging
Tube
Series
TLE
Product Status
Active
Connector Type
Receptacle, Pass Through
Contact Type
Female Socket
Style
Board to Board or Cable
Number of Positions
28
Number of Positions Loaded
All
Pitch - Mating
0.079" (2.00mm)
Number of Rows
2
Row Spacing - Mating
0.079" (2.00mm)
Mounting Type
Surface Mount
Termination
Solder
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
10.0µin (0.25µm)
Insulation Color
Black
Insulation Height
0.177" (4.50mm)
Contact Length - Post
-
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
-
Contact Finish - Post
Gold
Mated Stacking Heights
-
Ingress Protection
-
Features
Pick and Place
Current Rating (Amps)
3.2A per Contact
Voltage Rating
-
Applications
-
Insulation Material
Liquid Crystal Polymer (LCP)
Contact Shape
Square
Contact Material
Phosphor Bronze
Contact Finish Thickness - Post
-
Base Product Number
TLE-114
Datasheet & Documents
HTML Datasheet
TLE-114-01-G-DV-P-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.69.4040
Additional Information
Standard Package
20
Alternative Parts
