PBY160808T-601Y-N
Pulse Electronics

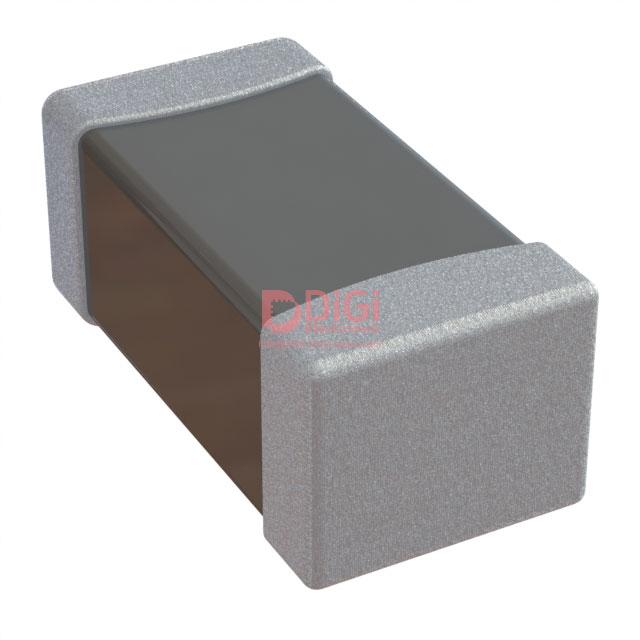

FERRITE BEAD 600 OHM 0603 1LN
17477 Pcs New Original In Stock
600 Ohms @ 100 MHz 1 Ferrite Bead 0603 (1608 Metric) 1A 200mOhm
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (324 Ratings)
PBY160808T-601Y-N
Product Overview
9384351
DiGi Electronics Part Number
PBY160808T-601Y-N-DGManufacturer
Pulse Electronics
PBY160808T-601Y-N
Description
FERRITE BEAD 600 OHM 0603 1LNInventory
17477 Pcs New Original In Stock
600 Ohms @ 100 MHz 1 Ferrite Bead 0603 (1608 Metric) 1A 200mOhm
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
PBY160808T-601Y-N Technical Specifications
Category
Ferrite Beads and Chips
Packaging
Tape & Reel (TR)
Series
PB
Product Status
Active
Filter Type
-
Number of Lines
1
Impedance @ Frequency
600 Ohms @ 100 MHz
Current Rating (Max)
1A
DC Resistance (DCR) (Max)
200mOhm
Ratings
-
Operating Temperature
-55°C ~ 125°C
Package / Case
0603 (1608 Metric)
Mounting Type
Surface Mount
Height (Max)
0.037" (0.95mm)
Size / Dimension
0.063" L x 0.031" W (1.60mm x 0.80mm)
Datasheet & Documents
HTML Datasheet
PBY160808T-601Y-N-DG
Environmental & Export Classification
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8548.00.0000
Additional Information
Other Names
13-PBY160808T-601Y-NTR
553-PBY160808T-601Y-NDKR
13-PBY160808T-601Y-NCT-DG
13-PBY160808T-601Y-NCT
553-PBY160808T-601Y-NCT
553-PBY160808T-601Y-NTR
13-PBY160808T-601Y-NDKR
13-PBY160808T-601Y-DGKR-DG
13-PBY160808T-601Y-NTR-DG
Standard Package
4,000
Alternative Parts
PART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Reviews
5.0/5.0-(Show up to 5 Ratings)
December 02, 2025
Die Unterstützung nach dem Kauf war erstklassig. Fragen wurden sofort und professionell beantwortet.
December 02, 2025
DiGi Electronicsの価格はとてもリーズナブルで、財布に優しいです。
December 02, 2025
Support staff went above and beyond to ensure my issue was resolved to my satisfaction.
December 02, 2025
The consistent quality of packaging demonstrates their dedication to customer satisfaction.
December 02, 2025
Their inventory updates are timely, reflecting real-time stock status.
December 02, 2025
The price transparency is excellent—no surprises at checkout.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the risks of using the PBY160808T-601Y-N ferrite bead in a high-current power rail near its 1A rating in a compact 0603 footprint?
Operating the PBY160808T-601Y-N close to its 1A maximum current rating in space-constrained designs increases thermal stress due to its 200mOhm DCR. At full load, resistive losses can generate significant heat in the 0603 (1608 metric) package, risking derating of impedance performance or long-term reliability degradation. To mitigate, ensure adequate PCB copper pour for heat dissipation, avoid enclosed environments, and verify actual current ripple in transient conditions—especially in DC-DC converters. Consider parallel routing or a higher current-rated alternative like the BLM18AG600SN1D if sustained current exceeds 700mA.
How does the PBY160808T-601Y-N performance degrade under DC bias in a low-noise analog power supply, and how should I account for this in design?
The PBY160808T-601Y-N's 600 Ohm impedance at 100 MHz is specified at minimal DC bias, but impedance drops significantly as DC current approaches 500–800mA due to core saturation. In sensitive analog rails (e.g., for ADCs or RF amplifiers), this reduces high-frequency noise filtering effectiveness. Designers should simulate or measure impedance under actual operating current using manufacturer DC bias curves (if available) and consider using a lower impedance bead like the PBY160808T-121Y-N (120 Ohm) if DC current exceeds 300mA, or place the bead post-LDO where current demand is lower.
Can the PBY160808T-601Y-N be used as a direct replacement for the Murata BLM18PG601SN1D in EMI filtering on a 3.3V digital line, and what layout considerations are critical?
Yes, the PBY160808T-601Y-N can replace the Murata BLM18PG601SN1D in most EMI filtering applications, as both are 0603 ferrite beads with 600 Ohm @ 100 MHz impedance and 1A rating. However, ensure PCB land patterns match—Pulse Electronics may have slightly different pad dimensions. Critical layout practices include minimizing via stubs between the bead and load, placing the bead close to the noise source (e.g., IC pin), and using localized ground vias near the filtered side. Avoid shared return paths to prevent noise coupling, which can negate the benefits of the PBY160808T-601Y-N's suppression.
What derating guidelines should be followed for the PBY160808T-601Y-N in automotive applications operating at 125°C ambient temperature?
In automotive environments where ambient temperatures reach 125°C, the PBY160808T-601Y-N's current handling must be derated significantly—typically to 50–70% of its 1A rating (500–700mA) to avoid thermal runaway and ensure long-term reliability. The 0603 package has limited thermal mass, so cumulative heating from nearby components and trace resistance must be considered. Use thermal imaging in prototyping to validate board-level temperature rise. Additionally, confirm stable impedance performance over temperature by reviewing Pulse Electronics' characterization data, as ferrite materials can exhibit nonlinear behavior at extreme temps.
How does the PBY160808T-601Y-N compare to the TDK MMZ1608B601CT000 in terms of high-frequency stability and suitability for USB 2.0 signal integrity?
The PBY160808T-601Y-N and TDK MMZ1608B601CT000 are both 0603 600 Ohm ferrite beads, but the MMZ series typically offers tighter impedance tolerance and better high-frequency stability up to 500 MHz, which is critical near USB 2.0’s 480 Mbps harmonic content. The PBY160808T-601Y-N may exhibit earlier self-resonance or higher parasitic capacitance, risking signal attenuation or jitter. For USB VBUS filtering, PBY160808T-601Y-N is acceptable, but for data lines, use signal-optimized beads like the Murata BLM15AG600SN1D. Always simulate insertion loss and return loss when integrating the PBY160808T-601Y-N near high-speed paths.
