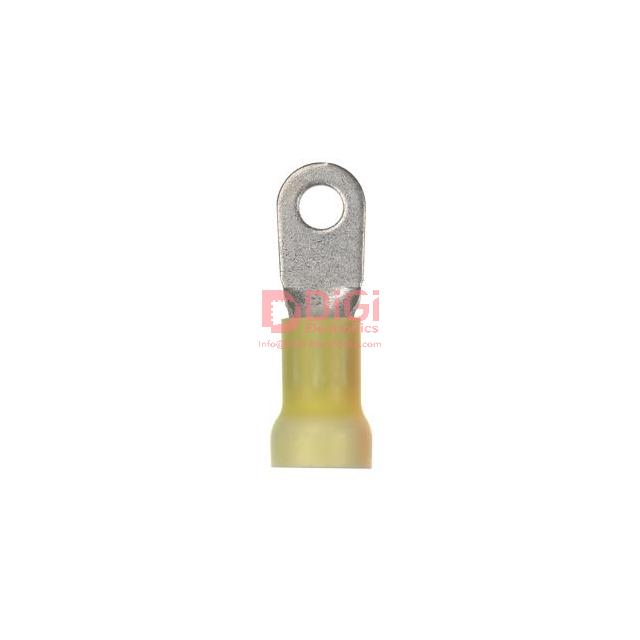

PV4-12RX-E
Panduit Corp
CONN RING FLAT 4AWG #1/2 CRIMP
1038 Pcs New Original In Stock
Ring Terminal Connector 1/2 Stud Flat Sided 4 AWG Crimp
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (409 Ratings)
PV4-12RX-E
Product Overview
8205692
DiGi Electronics Part Number
PV4-12RX-E-DGManufacturer
Panduit Corp
PV4-12RX-E
Description
CONN RING FLAT 4AWG #1/2 CRIMPInventory
1038 Pcs New Original In Stock
Ring Terminal Connector 1/2 Stud Flat Sided 4 AWG Crimp
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
PV4-12RX-E Technical Specifications
Category
Terminals, Ring Connectors
Packaging
-
Series
Pan-Term®
Product Status
Obsolete
Terminal Type
Flat Sided
Stud/Tab Size
1/2 Stud
Thickness
0.050" (1.27mm)
Width - Outer Edges
0.860" (21.84mm)
Length - Overall
2.030" (51.56mm)
Mounting Type
Free Hanging (In-Line)
Termination
Crimp
Wire Gauge
4 AWG
Insulation
Insulated
Features
Brazed Seam
Color
Yellow
Contact Material
Copper
Contact Finish
Tin
Insulation Diameter
0.515" (13.08mm)
Material - Insulation
Vinyl
Base Product Number
PV4
Datasheet & Documents
Product Drawings
PV4-xxRX Drawing
HTML Datasheet
PV4-12RX-E-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.90.4000
Additional Information
Other Names
-3255-PV4-12RX-E
Standard Package
20
