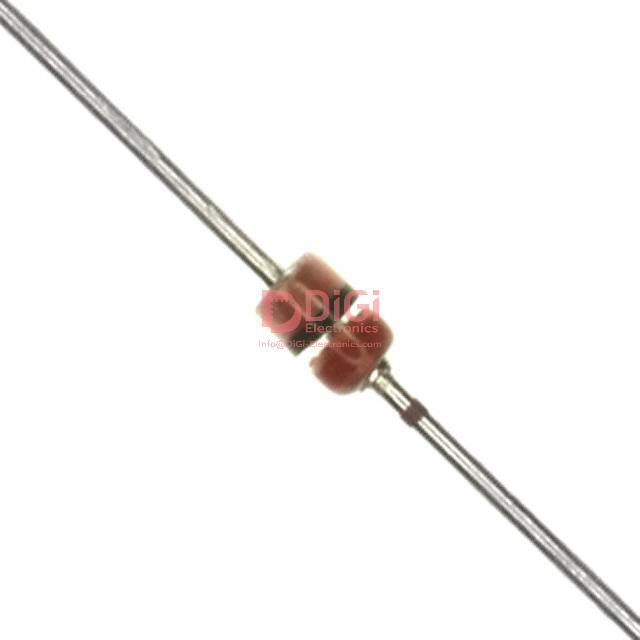

MAZ21800AG
Panasonic Electronic Components
DIODE ZENER 18V 1W DO41
1087 Pcs New Original In Stock
Zener Diode 18 V 1 W ±6% Through Hole DO41-A1
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (317 Ratings)
MAZ21800AG
Product Overview
12943271
DiGi Electronics Part Number
MAZ21800AG-DGManufacturer
Panasonic Electronic Components
MAZ21800AG
Description
DIODE ZENER 18V 1W DO41Inventory
1087 Pcs New Original In Stock
Zener Diode 18 V 1 W ±6% Through Hole DO41-A1
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
MAZ21800AG Technical Specifications
Category
Diodes, Zener, Single Zener Diodes
Packaging
-
Series
-
Product Status
Obsolete
Voltage - Zener (Nom) (Vz)
18 V
Tolerance
±6%
Power - Max
1 W
Impedance (Max) (Zzt)
15 Ohms
Current - Reverse Leakage @ Vr
5 µA @ 12 V
Voltage - Forward (Vf) (Max) @ If
1 V @ 200 mA
Operating Temperature
200°C
Mounting Type
Through Hole
Package / Case
DO-204AL, DO-41, Axial
Supplier Device Package
DO41-A1
Base Product Number
MAZ218
Datasheet & Documents
HTML Datasheet
MAZ21800AG-DG
Environmental & Export Classification
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8541.10.0050
Additional Information
Other Names
MAZ21800AGTR
MAZ21800AGCT
Standard Package
7,000
