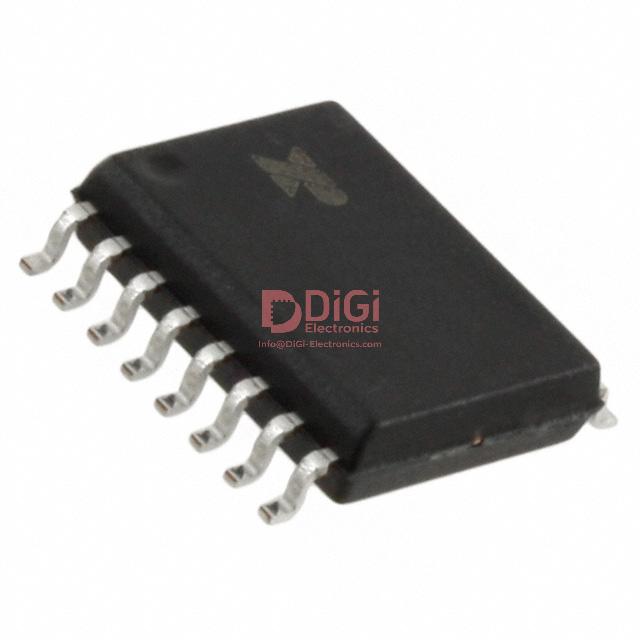

SP3232ECT-L
MaxLinear, Inc.
IC TRANSCEIVER FULL 2/2 16SOIC
2142 Pcs New Original In Stock
2/2 Transceiver Full RS232 16-SOIC
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (120 Ratings)
SP3232ECT-L
Product Overview
6696074
DiGi Electronics Part Number
SP3232ECT-L-DGManufacturer
MaxLinear, Inc.
SP3232ECT-L
Description
IC TRANSCEIVER FULL 2/2 16SOICInventory
2142 Pcs New Original In Stock
2/2 Transceiver Full RS232 16-SOIC
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SP3232ECT-L Technical Specifications
Category
Interface, Drivers, Receivers, Transceivers
Packaging
-
Series
-
Product Status
Obsolete
Type
Transceiver
Protocol
RS232
Number of Drivers/Receivers
2/2
Duplex
Full
Receiver Hysteresis
300 mV
Data Rate
235Kbps
Voltage - Supply
3V ~ 5.5V
Operating Temperature
0°C ~ 70°C
Mounting Type
Surface Mount
Package / Case
16-SOIC (0.295", 7.50mm Width)
Supplier Device Package
16-SOIC
Base Product Number
SP3232
Datasheet & Documents
HTML Datasheet
SP3232ECT-L-DG
Environmental & Export Classification
Moisture Sensitivity Level (MSL)
3 (168 Hours)
ECCN
EAR99
HTSUS
8542.39.0001
Additional Information
Other Names
Q7047333
1016-1104-5
SP3232ECTL
Standard Package
41
Alternative Parts
View DetailsPART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Reviews
5.0/5.0-(Show up to 5 Ratings)
December 02, 2025
물류 추적 시스템이 매우 정밀하고 사용자 친화적이라서 좋아요. 정시 배송 보장도 마음에 들어요.
December 02, 2025
我非常滿意他們產品的一致性，從未失望過，加上價格公開，非常值得信賴。
December 02, 2025
They handle after-sales issues with professionalism and speed, which is rare to find.
December 02, 2025
Shipping is always reliable and prompt, making the whole shopping experience excellent.
December 02, 2025
Their prompt after-sales support truly makes them stand out in the industry.
December 02, 2025
I experienced excellent support after the sale, which helped build trust.
December 02, 2025
Their after-sales support is proactive and always ready to assist, which gives me peace of mind.
December 02, 2025
Their products are reliable, and their after-sales support is equally dependable.
December 02, 2025
Customer support is attentive, friendly, and effective.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
Can the SP3232ECT-L be used as a drop-in replacement for the MAX3232EWE+T in an existing RS232 design, and what are the key compatibility risks?
The SP3232ECT-L can generally replace the MAX3232EWE+T in 3V to 5.5V systems since both support 2/2 full-duplex RS232 transceivers with similar pinouts and data rates up to 235kbps. However, a critical design risk is the SP3232ECT-L's higher typical supply current (15mA vs. 10mA on MAX3232E), which may impact power-sensitive applications. Additionally, confirm that your level-shifting capacitors meet the SP3232ECT-L’s charge pump requirements (0.1µF typical) to avoid insufficient RS232 voltage swing. Always check actual board layout clearance for C1+, C1−, and V+ nodes to prevent voltage dropout under load.
How does the SP3232ECT-L perform in mixed-voltage systems, and what level translation considerations should be addressed when interfacing with 3.3V MCUs?
The SP3232ECT-L operates reliably with 3V to 5.5V supplies, making it suitable for 3.3V MCU integration. However, a common design-in risk is assuming guaranteed logic thresholds at 3.3V; although SP3232ECT-L is specified for 3V, noise margin is tighter than at 5V. Use strong pull-ups (if needed) and keep input trace lengths short to minimize noise coupling. Ensure control signals like /ENABLE are driven by 3.3V-tolerant MCU pins, and verify that the MCU’s input high threshold (typically >0.7×VCC) is compatible with the SP3232ECT-L’s output levels (~0.9×VCC).
Is the SP3232ECT-L suitable for industrial applications with temperature variations, and what are the reliability implications given its 0°C to 70°C rating?
The SP3232ECT-L is limited to 0°C to 70°C, making it unsuitable for industrial environments with sub-zero or high-temperature operation. A key design risk is system failure if ambient temperatures exceed 70°C, especially with internal board heating. Avoid using SP3232ECT-L in uncontrolled enclosures or outdoor deployments. For extended temperature needs, consider upgrades like the TRS3232EIDW (−40°C to 85°C) despite slight pin compatibility differences. Designers should also derate lifetime expectations due to electrolytic capacitor aging in the voltage pump circuit under prolonged thermal stress.
Why is the SP3232ECT-L listed as obsolete, and what long-term supply risks should be considered for new designs?
The SP3232ECT-L is marked obsolete by MaxLinear, meaning it's no longer recommended for new designs and future availability is uncertain despite current inventory. A critical risk is design obsolescence; sourcing 2077 units today won't support volume production or long-lifecycle systems. Use SP3232ECT-L only for legacy repairs or short-run builds. For new designs, evaluate immediate drop-in alternatives like the HIN232CBZ-T or LT1081ISW#PBF with comparable specs and active status. Always secure last-time buy forecasts and consider redesign cycles to avoid costly requalification later.
What are the PCB layout best practices for the SP3232ECT-L to maintain signal integrity and power stability at 235kbps?
To ensure signal integrity with the SP3232ECT-L, minimize loop areas for charge pump capacitors (C1, C2) and place them within 5mm of their respective pins (V+, V−, C1+, C1−) to reduce EMI and voltage droop. Use a solid ground plane under the 16-SOIC package to improve thermal and noise performance. Route RS232 lines (T1OUT, R1IN) away from digital switching paths to avoid crosstalk, especially at 235kbps near the device’s data rate limit. Also, decouple VCC with a 0.1µF ceramic and 1µF bulk capacitor in parallel near the pin to suppress supply transients during bus transitions.
