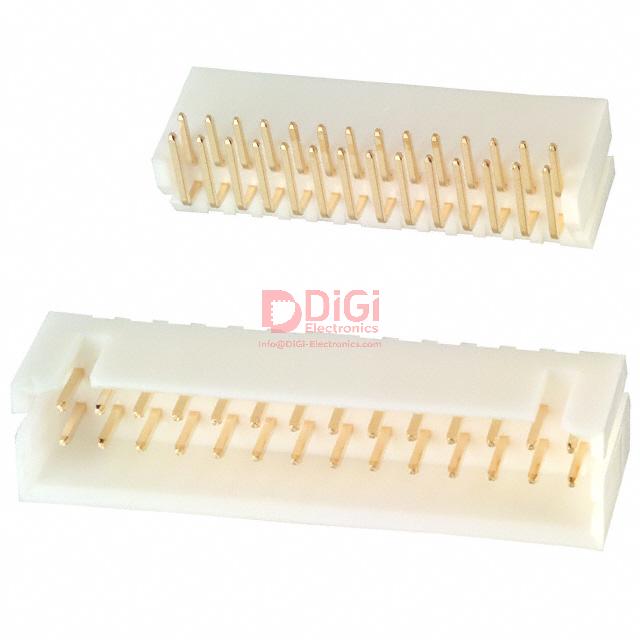

DF1B-28DP-2.5DS(01)
Hirose Electric Co Ltd
CONN HEADER R/A 28POS 2.5MM
791 Pcs New Original In Stock
Connector Header Through Hole, Right Angle 28 position 0.098" (2.50mm)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (51 Ratings)
DF1B-28DP-2.5DS(01)
Product Overview
6897169
DiGi Electronics Part Number
DF1B-28DP-2.5DS(01)-DGManufacturer
Hirose Electric Co Ltd
DF1B-28DP-2.5DS(01)
Description
CONN HEADER R/A 28POS 2.5MMInventory
791 Pcs New Original In Stock
Connector Header Through Hole, Right Angle 28 position 0.098" (2.50mm)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
DF1B-28DP-2.5DS(01) Technical Specifications
Category
Rectangular Connectors, Headers, Male Pins
Packaging
Bulk
Series
DF1B
Product Status
Active
Connector Type
Header
Contact Type
Male Pin
Pitch - Mating
0.098" (2.50mm)
Number of Positions
28
Number of Rows
2
Row Spacing - Mating
0.098" (2.50mm)
Number of Positions Loaded
All
Style
Board to Cable/Wire
Shrouding
Shrouded - 4 Wall
Mounting Type
Through Hole, Right Angle
Termination
Solder
Fastening Type
Push-Pull
Contact Length - Mating
0.177" (4.50mm)
Contact Length - Post
0.130" (3.30mm)
Overall Contact Length
-
Insulation Height
0.339" (8.61mm)
Contact Shape
Square
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
8.00µin (0.203µm)
Contact Finish - Post
-
Contact Material
Brass
Insulation Material
Polyamide (PA), Nylon
Features
Keying Slot
Operating Temperature
-35°C ~ 85°C
Ingress Protection
-
Material Flammability Rating
UL94 V-0
Insulation Color
White
Current Rating (Amps)
-
Voltage Rating
250V
Mated Stacking Heights
-
Contact Finish Thickness - Post
-
Applications
-
Base Product Number
DF1B
Datasheet & Documents
HTML Datasheet
DF1B-28DP-2.5DS(01)-DG
Environmental & Export Classification
RoHS Status
RoHS Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.69.4040
Additional Information
Other Names
*DF1B-28DP-2.5DS(01)
541-0641-1-01
H3661
Standard Package
100
