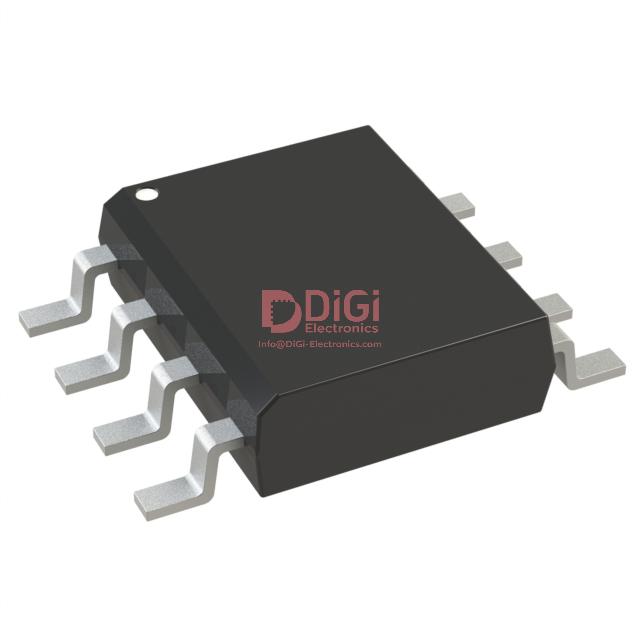

DMP4025LSD-13
Diodes Incorporated
MOSFET 2P-CH 40V 6.9A 8SO
10238 Pcs New Original In Stock
Mosfet Array 40V 6.9A 1.8W Surface Mount 8-SO
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (493 Ratings)
DMP4025LSD-13
Product Overview
12884312
DiGi Electronics Part Number
DMP4025LSD-13-DGManufacturer
Diodes Incorporated
DMP4025LSD-13
Description
MOSFET 2P-CH 40V 6.9A 8SOInventory
10238 Pcs New Original In Stock
Mosfet Array 40V 6.9A 1.8W Surface Mount 8-SO
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
DMP4025LSD-13 Technical Specifications
Category
Transistors, FETs, MOSFETs, FET, MOSFET Arrays
Packaging
Cut Tape (CT) & Digi-Reel®
Series
-
Product Status
Active
Technology
MOSFET (Metal Oxide)
Configuration
2 P-Channel (Dual)
FET Feature
Logic Level Gate
Drain to Source Voltage (Vdss)
40V
Current - Continuous Drain (Id) @ 25°C
6.9A
Rds On (Max) @ Id, Vgs
25mOhm @ 3A, 10V
Vgs(th) (Max) @ Id
1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
33.7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds
1640pF @ 20V
Power - Max
1.8W
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154", 3.90mm Width)
Supplier Device Package
8-SO
Base Product Number
DMP4025
Datasheet & Documents
HTML Datasheet
DMP4025LSD-13-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.29.0095
Additional Information
Other Names
DMP4025LSD-13DITR
DMP4025LSD13
DMP4025LSD-13DICT
DMP4025LSD-13DIDKR
Standard Package
2,500
Alternative Parts
PART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Reviews
5.0/5.0-(Show up to 5 Ratings)
December 02, 2025
Ils assurent une logistique fluide et une communication claire sur leur politique tarifaire.
December 02, 2025
Le suivi des livraisons est précis et rassurant à chaque étape.
December 02, 2025
DiGi Electronics me propose une expérience d’achat agréable, efficace et économique.
December 02, 2025
注文の調整にも柔軟に対応してくれて、大変満足しています。
December 02, 2025
I enjoy shopping at DiGi Electronics because of their welcoming team and cost-effective prices.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the key design risks when using the DMP4025LSD-13 in a high-temperature environment near its maximum junction temperature of 150°C?
When using the DMP4025LSD-13 in environments approaching 150°C, thermal runaway is a primary risk due to increased Rds(on) at elevated temperatures. Even though the device is rated for 1.8W dissipation, ensure adequate PCB copper area (preferably with thermal vias) to conduct heat away, especially since it's a surface-mount 8-SO package. Simulate worst-case power scenarios considering idle and peak loads. Also verify that nearby components don’t create localized hot spots on the board. Use thermal derating curves to confirm safe operating area (SOA) compliance under sustained load conditions to avoid long-term reliability degradation.
How does the DMP4025LSD-13 compare to the SI7425DN as a P-channel dual MOSFET replacement in a 12V power switch application?
The DMP4025LSD-13 can serve as a viable alternative to the SI7425DN in 12V power switching, but with trade-offs. While both are dual P-channel logic-level MOSFETs in 8-SOIC packages, the DMP4025LSD-13 has a slightly higher Rds(on) of 25mΩ vs. SI7425DN’s 17mΩ at 10V Vgs, potentially increasing conduction losses. However, the DMP4025LSD-13 offers superior gate charge (33.7nC vs ~45nC) enabling faster switching and lower drive power. Check that your gate driver can pull up to at least 10V for full enhancement; at 3.3V logic, performance will degrade. Always verify current sharing and thermal coupling in dual configurations.
What PCB layout considerations are critical when integrating the DMP4025LSD-13 to minimize thermal and electrical stress?
For the DMP4025LSD-13, optimize PCB layout by maximizing copper connected to drain pads for heat dissipation—use at least 1 in² of 2oz copper with multiple thermal vias to inner ground planes. Keep gate traces short and routed away from high-current paths to prevent ringing and accidental turn-on due to capacitive coupling. Include a small gate resistor (5–10Ω) if switching inductive loads. Since it’s a dual P-channel array, avoid asymmetric source routing that could imbalance current sharing. Confirm via current capacity if high pulsed loads (e.g. motor startup) exceed 6.9A momentarily.
Can the DMP4025LSD-13 reliably replace aging IRF9Z24P devices in an existing 24V industrial control board?
Replacing IRF9Z24P with the DMP4025LSD-13 requires caution: although both are P-channel MOSFETs, the DMP4025LSD-13 is a dual 40V, 6.9A device in a surface-mount 8-SO package, whereas the IRF9Z24P is a single through-hole 55V device with higher current capability. The DMP4025LSD-13 is pin-compatible in function but not pin-to-pin; redesign is needed for SMT layout. Confirm that 40V Vdss suffices with margin over 24V nominal (including transients). Also validate that logic-level gate drive (≤2.5V threshold) aligns with your controller. Evaluate surge current handling and long-term reliability under industrial temperature swings.
What causes unexpected turn-on in DMP4025LSD-13 when used in motor control circuits, and how can it be prevented?
Unexpected turn-on in the DMP4025LSD-13 during motor control stems from dv/dt-induced gate coupling through Cgd (Miller effect), especially during fast voltage transients. Since the device has a logic-level gate and low Vgs(th), even small coupled voltages can bias the gate above threshold. To mitigate: add a gate-to-source resistor (10kΩ–100kΩ) to shunt displacement currents, use negative turn-off bias if feasible, and minimize parasitic trace inductance. Consider adding a small ceramic capacitor (1nF) between gate and source locally. Also verify that your driver has low impedance in the 'off' state to clamp the gate reliably under noisy conditions.
Quality Assurance (QC)
DiGi ensures the quality and authenticity of every electronic component through professional inspections and batch sampling, guaranteeing reliable sourcing, stable performance, and compliance with technical specifications, helping customers reduce supply chain risks and confidently use components in production.
DMP4025LSD-13 CAD Models
Diodes Incorporated DMP4025LSD-13 PCB symbols & footprints
