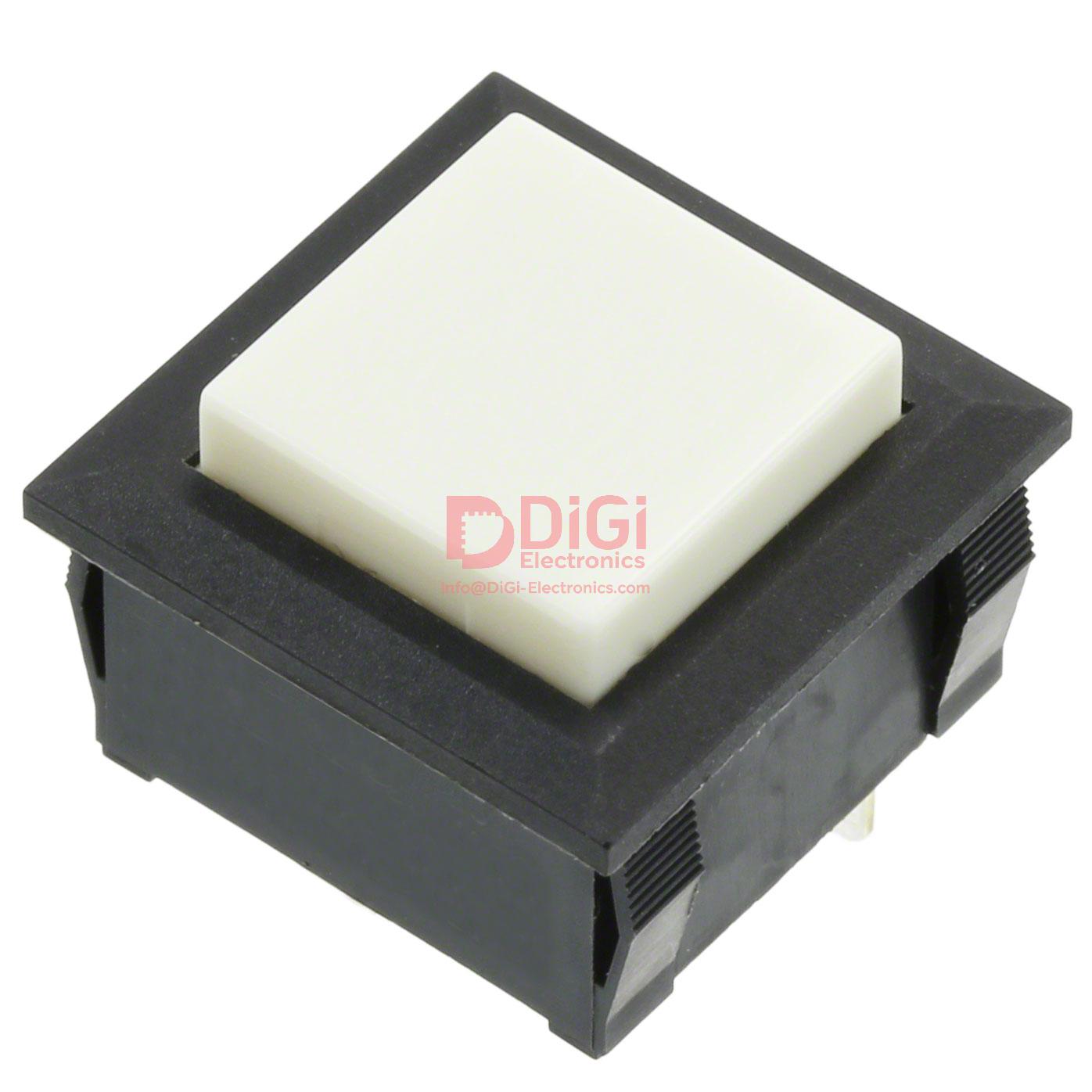

LP2S-26S-W-Z
Nidec Components Corporation
SWITCH PUSHBUTTON DPDT 3A 125V
873 Pcs New Original In Stock
Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (158 Ratings)
LP2S-26S-W-Z
Product Overview
7759459
DiGi Electronics Part Number
LP2S-26S-W-Z-DGManufacturer
Nidec Components Corporation
LP2S-26S-W-Z
Description
SWITCH PUSHBUTTON DPDT 3A 125VInventory
873 Pcs New Original In Stock
Pushbutton Switch DPDT Standard Panel Mount, Snap-In
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
LP2S-26S-W-Z Technical Specifications
Category
Pushbutton Switches
Packaging
-
Series
LP
Product Status
Obsolete
Mounting Type
Panel Mount, Snap-In
Type
Standard
Circuit
DPDT
Switch Function
On-Mom
Current Rating (Amps)
3A (AC/DC)
Voltage Rating - AC
125 V
Voltage Rating - DC
30 V
Actuator Type
Square, Button
Actuator Marking
No Marking
Color - Actuator/Cap
White
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Termination Style
Solder Lug
Ingress Protection
-
Features
-
Panel Cutout Dimensions
Square - 16.20mm x 16.20mm
Operating Temperature
-15°C ~ 60°C
Mechanical Life
-
Electrical Life
30,000 Cycles
Datasheet & Documents
HTML Datasheet
LP2S-26S-W-Z-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
ECCN
EAR99
HTSUS
8536.50.9031
Additional Information
Other Names
-LP2S-26S-W-Z
563-1516-5
Standard Package
25
