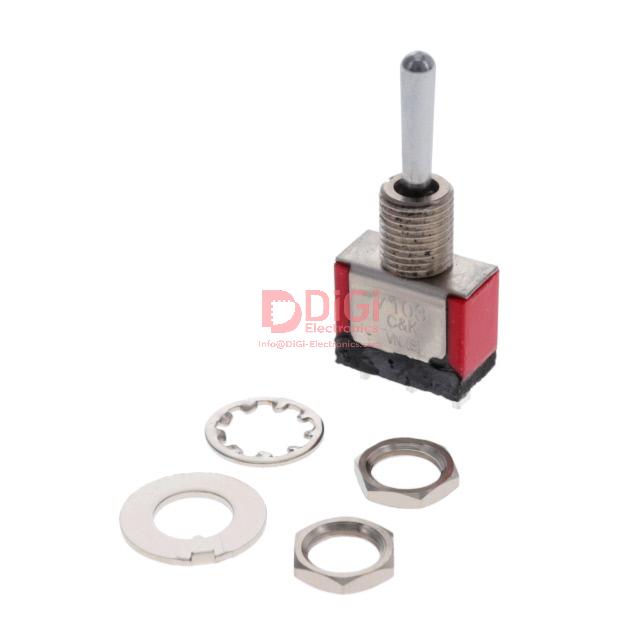

7101P1CWCBE
C&K
SWITCH TOGGLE SPDT 0.4VA 20V
1017 Pcs New Original In Stock
Toggle Switch SPDT Panel Mount
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (238 Ratings)
7101P1CWCBE
Product Overview
3932314
DiGi Electronics Part Number
7101P1CWCBE-DGManufacturer
C&K
7101P1CWCBE
Description
SWITCH TOGGLE SPDT 0.4VA 20VInventory
1017 Pcs New Original In Stock
Toggle Switch SPDT Panel Mount
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
7101P1CWCBE Technical Specifications
Category
Toggle Switches
Packaging
Bulk
Series
7000
Product Status
Active
Mounting Type
Panel Mount
Circuit
SPDT
Switch Function
On-On
Current Rating (Amps)
0.4VA (AC/DC)
Voltage Rating - AC
20 V
Voltage Rating - DC
20 V
Actuator Type
Flat Anti-Rotation
Actuator Length
21.33mm
Illumination
Non-Illuminated
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Termination Style
PC Pin
Panel Cutout Dimensions
Circular - 6.35mm Dia
Bushing Thread
1/4-40
Ingress Protection
IP67 - Dust Tight, Waterproof
Features
Epoxy Sealed Terminals
Operating Temperature
-30°C ~ 85°C
Actuator Material
Brass, Chrome Plated
Electrical Life
100,000 Cycles
Base Product Number
7101P1
Datasheet & Documents
HTML Datasheet
7101P1CWCBE-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8536.50.9065
Additional Information
Other Names
-7101P1CWCBE
Standard Package
1
