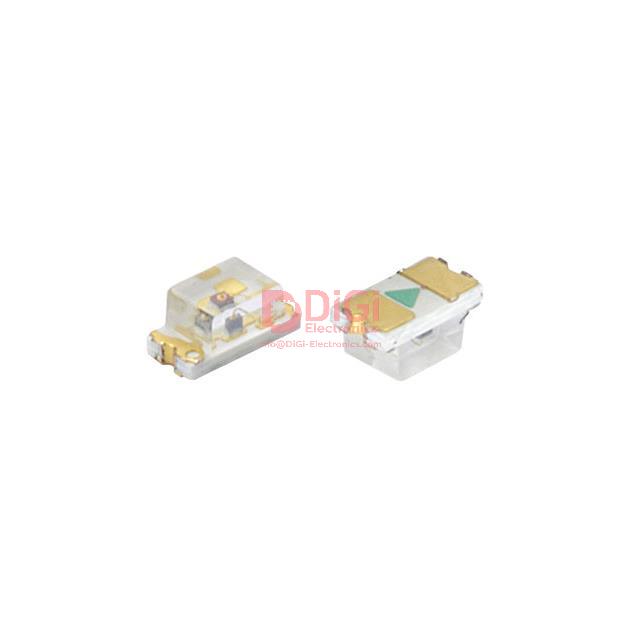

CSB63CR2O2C
ChromeLED
LED RED/ORG CLEAR 0603 CHIP SMD
902 Pcs New Original In Stock
Orange, Red 600nm Orange, 625nm Red LED Indication - Discrete 2V 0603 (1608 Metric)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (60 Ratings)
CSB63CR2O2C
Product Overview
9322862
DiGi Electronics Part Number
CSB63CR2O2C-DGManufacturer
ChromeLED
CSB63CR2O2C
Description
LED RED/ORG CLEAR 0603 CHIP SMDInventory
902 Pcs New Original In Stock
Orange, Red 600nm Orange, 625nm Red LED Indication - Discrete 2V 0603 (1608 Metric)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
CSB63CR2O2C Technical Specifications
Category
LED Indication - Discrete
Packaging
Tape & Reel (TR)
Series
-
Product Status
Active
Color
Orange, Red
Configuration
Standard
Lens Color
Colorless
Lens Transparency
Clear
Millicandela Rating
500mcd Orange, 350mcd Red
Lens Style
Rectangle with Flat Top
Lens Size
1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ)
2V
Current - Test
20mA
Viewing Angle
120°
Mounting Type
Surface Mount
Wavelength - Dominant
600nm Orange, 625nm Red
Wavelength - Peak
-
Features
-
Package / Case
0603 (1608 Metric)
Supplier Device Package
Chip LED
Size / Dimension
1.60mm L x 0.80mm W
Height (Max)
0.40mm
Datasheet & Documents
HTML Datasheet
CSB63CR2O2C-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
ECCN
EAR99
HTSUS
8541.41.0000
Additional Information
Other Names
2661-CSB63CR2O2CTR
Standard Package
1
