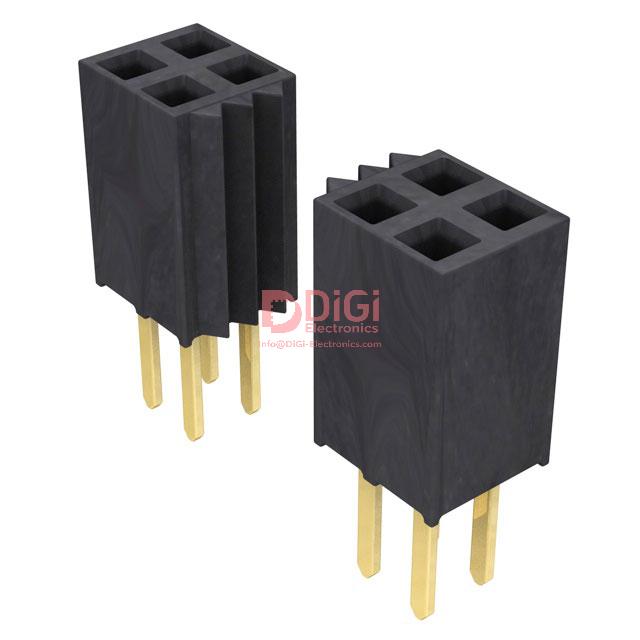

SSW-134-02-G-D
Samtec Inc.
CONN RCPT 68POS 0.1 GOLD PCB
778 Pcs New Original In Stock
68 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (220 Ratings)
SSW-134-02-G-D
Product Overview
3680705
DiGi Electronics Part Number
SSW-134-02-G-D-DGManufacturer
Samtec Inc.
SSW-134-02-G-D
Description
CONN RCPT 68POS 0.1 GOLD PCBInventory
778 Pcs New Original In Stock
68 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
SSW-134-02-G-D Technical Specifications
Category
Rectangular Connectors, Headers, Receptacles, Female Sockets
Packaging
Bulk
Series
SSW
Product Status
Active
Connector Type
Receptacle
Contact Type
Forked
Style
Board to Board or Cable
Number of Positions
68
Number of Positions Loaded
All
Pitch - Mating
0.100" (2.54mm)
Number of Rows
2
Row Spacing - Mating
0.100" (2.54mm)
Mounting Type
Through Hole
Termination
Solder
Fastening Type
Push-Pull
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Contact Length - Post
0.194" (4.93mm)
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Contact Finish - Post
Gold
Mated Stacking Heights
-
Ingress Protection
-
Features
-
Current Rating (Amps)
4.7A per Contact
Voltage Rating
-
Applications
-
Insulation Material
Liquid Crystal Polymer (LCP)
Contact Shape
Square
Contact Material
Phosphor Bronze
Contact Finish Thickness - Post
3.00µin (0.076µm)
Base Product Number
SSW-134
Datasheet & Documents
Product Drawings
SSW Series Drawing(Thru Hole)
HTML Datasheet
SSW-134-02-G-D-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
Not Applicable
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8536.69.4040
Additional Information
Other Names
SAM1214-34
Standard Package
1
