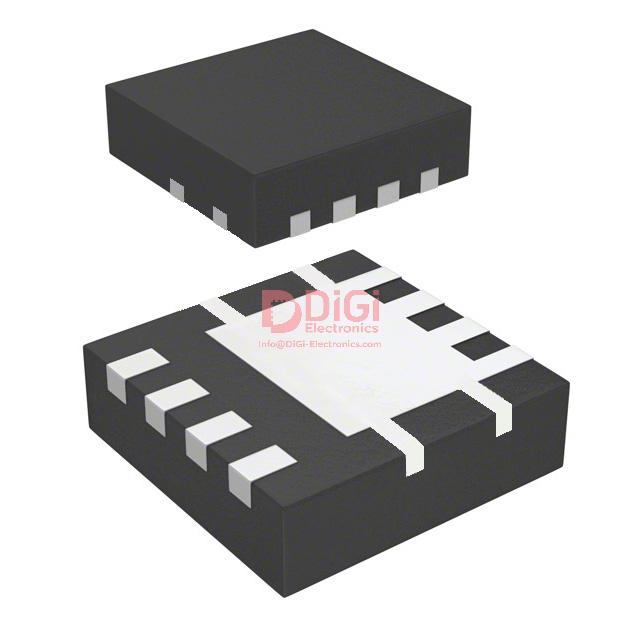

FDMC013P030Z
onsemi
MOSFET P-CHANNEL 30V 54A 8MLP
2196 Pcs New Original In Stock
P-Channel 30 V 54A (Tc) 30W (Tc) Surface Mount 8-MLP (3.3x3.3)
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (23 Ratings)
FDMC013P030Z
Product Overview
12847785
DiGi Electronics Part Number
FDMC013P030Z-DGManufacturer
onsemi
FDMC013P030Z
Description
MOSFET P-CHANNEL 30V 54A 8MLPInventory
2196 Pcs New Original In Stock
P-Channel 30 V 54A (Tc) 30W (Tc) Surface Mount 8-MLP (3.3x3.3)
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
FDMC013P030Z Technical Specifications
Category
Transistors, FETs, MOSFETs, Single FETs, MOSFETs
Packaging
-
Series
-
Product Status
Obsolete
FET Type
P-Channel
Technology
MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)
30 V
Current - Continuous Drain (Id) @ 25°C
54A (Tc)
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Rds On (Max) @ Id, Vgs
7mOhm @ 14A, 10V
Vgs(th) (Max) @ Id
3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
135 nC @ 10 V
Vgs (Max)
±25V
Input Capacitance (Ciss) (Max) @ Vds
5785 pF @ 15 V
FET Feature
-
Power Dissipation (Max)
30W (Tc)
Operating Temperature
-55°C ~ 150°C (TJ)
Mounting Type
Surface Mount
Supplier Device Package
8-MLP (3.3x3.3)
Package / Case
8-PowerWDFN
Base Product Number
FDMC013
Datasheet & Documents
HTML Datasheet
FDMC013P030Z-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Unaffected
ECCN
EAR99
HTSUS
8541.29.0095
Additional Information
Other Names
FDMC013P030Z-DG
FDMC013P030ZOSCT
FDMC013P030ZOSDKR
FDMC013P030ZOSTR
Standard Package
3,000
Alternative Parts
View DetailsPART NUMBER
MANUFACTURER
QUANTITY AVAILABLE
DiGi PART NUMBER
UNIT PRICE
SUBSTITUTE TYPE
Reviews
5.0/5.0-(Show up to 5 Ratings)
December 02, 2025
DiGi Electronics每次都能提供高品質的商品，配送速度也很快，讓我感到很舒心。
December 02, 2025
Mein Paket kam super schnell, und der Support stand mir bei Fragen immer freundlich zur Seite.
December 02, 2025
Checking out was straightforward, with various convenient payment options.
December 02, 2025
The website is extremely user-friendly and easy to navigate, enhancing my shopping experience.
December 02, 2025
I appreciate how reliably DiGi Electronics meets their shipping deadlines.
December 02, 2025
Their support staff offers thoughtful solutions that address our post-sales concerns effectively.
December 02, 2025
With such a diverse product selection, they are truly a versatile supplier.
December 02, 2025
The price advantage at DiGi Electronics is remarkable. I always find what I need at a fraction of the expected cost.
December 02, 2025
I value their consistent product performance and attentive customer care.
December 02, 2025
Their professionalism ensures a smooth and hassle-free shopping experience.
Publish Evalution
Evalution Message
Please enter your review message.
Please post honest comments and do not post ilegal comments.
Frequently Asked Questions (FAQ)
What are the main design risks when using the FDMC013P030Z in a high-temperature environment near its maximum junction temperature of 150°C?
When operating the FDMC013P030Z near 150°C, thermal runaway is a key risk due to increased Rds(on) with temperature. Even though the device is rated for 30W (Tc), ensure your PCB provides sufficient copper mass and thermal vias to maintain a low thermal resistance. Without proper heatsinking, localized heating can push the junction beyond safe limits, especially under continuous 54A loads. Use thermal simulation during layout and consider derating current above 100°C ambient to maintain reliability and avoid premature failure.
Can the FDMC013P030Z be replaced with the SIS427EDN-T1-GE3 in an existing design, and what layout or drive considerations should I verify?
Replacing the FDMC013P030Z with the SIS427EDN-T1-GE3 requires checking gate drive compatibility—SIS427EDN has a lower Rds(on) but slightly higher Qg (140nC vs 135nC), which may increase switching losses if your controller can’t source/sink fast enough. Both are 8-MLP (3.3x3.3) footprint compatible, but verify thermal pad alignment and grounding strategy. The SIS427EDN also has a tighter Vgs(th) range, so ensure your gate drive doesn’t exceed ±20V to avoid overvoltage stress during transients.
How does the FDMC013P030Z perform at 4.5V gate drive, and is it suitable for 5V-only microcontroller-based switching applications?
The FDMC013P030Z is specified for 4.5V and 10V drive, but at 4.5V, Rds(on) will be higher than the 7mΩ rated at 10V—expect up to 20–30% increase depending on temperature. For 5V microcontroller applications, ensure the driver can deliver sufficient peak current to charge the 5785 pF Ciss quickly and minimize cross-conduction time. Consider adding a dedicated gate driver IC to improve turn-on/off speed and reduce conduction losses, especially in PWM applications above 50kHz.
What PCB layout practices are critical to maximize current handling and thermal performance of the FDMC013P030Z in a 54A application?
To reliably support 54A with the FDMC013P030Z, use at least 2oz copper and dedicate internal layers for thermal dissipation. The 8-MLP thermal pad must be fully soldered with an array of grounded thermal vias (minimum 6x in pad) to transfer heat to inner layers or backside copper. Keep high-current traces wide and short, and avoid sharp bends to prevent current crowding. Poor layout can result in localized heating even below rated current, leading to early failure or thermal shutdown in tightly packed boards.
Why is the FDMC013P030Z marked as obsolete, and what long-term reliability concerns should I consider for new designs or system maintenance?
The FDMC013P030Z is listed as obsolete, meaning onsemi no longer manufactures it, posing supply chain and lifecycle risks for new designs. While current stock is available, long-term maintenance and production scalability are concerns. For mission-critical or high-volume applications, consider pin-compatible alternatives like SIS427EDN-T1-GE3 with active production status. If using FDMC013P030Z, secure sufficient lifetime buy inventory and verify second-source availability to mitigate end-of-life disruptions.
