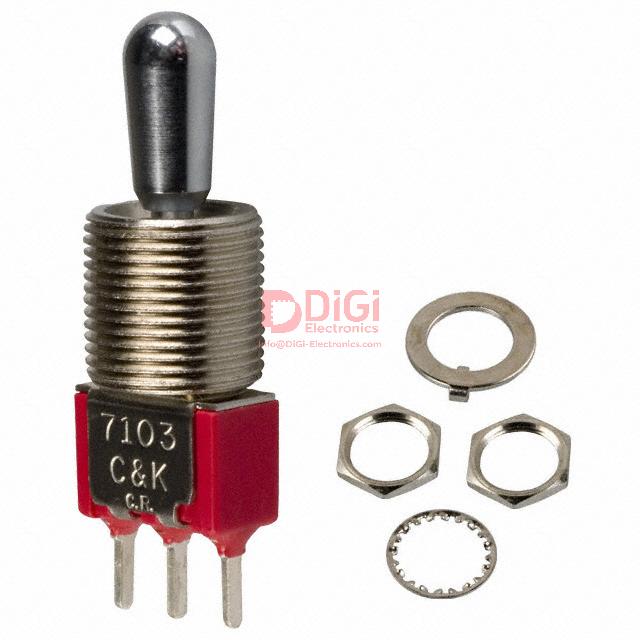

7103T1CWCQE
C&K
SWITCH TOGGLE SPDT 5A 120V
1230 Pcs New Original In Stock
Toggle Switch SPDT Panel Mount
Request Quote
(Ships tomorrow)
*Quantity
Minimum 1
Minimum 1
5.0 / 5.0
- (465 Ratings)
7103T1CWCQE
Product Overview
3924916
DiGi Electronics Part Number
7103T1CWCQE-DGManufacturer
C&K
7103T1CWCQE
Description
SWITCH TOGGLE SPDT 5A 120VInventory
1230 Pcs New Original In Stock
Toggle Switch SPDT Panel Mount
Quantity
Minimum 1
Minimum 1
Purchase and inquiry
Warranty & Returns
How to Order
Shipping & Delivery
Quality Assurance
365 - Day Quality Guarantee - Every part fully backed.
90 - Day Refund or Exchange - Defective parts? No hassle.
Limited Stock, Order Now - Get reliable parts without worry.
Global Shipping & Secure Packaging
Worldwide Delivery in 3-5 Business Days
100% ESD Anti-Static Packaging
Real-Time Tracking for Every Order
Secure & Flexible Payment
Credit Card, VISA, MasterCard, PayPal, Western Union, Telegraphic Transfer(T/T) and more
All payments encrypted for security
7103T1CWCQE Technical Specifications
Category
Toggle Switches
Packaging
Bulk
Series
7000
Product Status
Active
Mounting Type
Panel Mount
Circuit
SPDT
Switch Function
On-Off-On
Current Rating (Amps)
5A (AC/DC)
Voltage Rating - AC
120 V
Voltage Rating - DC
28 V
Actuator Type
Standard Round
Actuator Length
12.37mm
Illumination
Non-Illuminated
Illumination Type, Color
-
Illumination Voltage (Nominal)
-
Termination Style
PC Pin
Panel Cutout Dimensions
Circular - 11.91mm Dia
Bushing Thread
15/32-32
Ingress Protection
IP67 - Dust Tight, Waterproof
Features
Epoxy Sealed Terminals
Operating Temperature
-30°C ~ 85°C
Actuator Material
Brass, Chrome Plated
Electrical Life
40,000 Cycles
Base Product Number
7103T1
Datasheet & Documents
HTML Datasheet
7103T1CWCQE-DG
Environmental & Export Classification
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
1 (Unlimited)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8536.50.9065
Additional Information
Other Names
*7103T1CQCQE
-7103T1CWCQE
*7103T1CWCQE
7103T1CWCQE-DG
CKN1463
2266-7103T1CWCQE
Standard Package
1
