ZX80-B-5P(01) Equivalent & Substitute Parts

Part Overview

The ZX80-B-5P(01) is a USB 2.0 micro B receptacle connector manufactured by Hirose Electric Co Ltd, designed for 5-position surface mount and through-hole applications with vertical mounting orientation. This connector is classified as obsolete, making equivalent substitute parts necessary for ongoing production and maintenance requirements. The part delivers 1.8A current capacity at 30VAC rated voltage with 10,000 mating cycles and gold-plated contacts for reliable signal transmission.

Substiute Parts

ZX80-B-5P(01)

Hirose Electric Co LtdIn Stock: 765ZX80-B-5P(01) Datasheet

Current PartRFQ

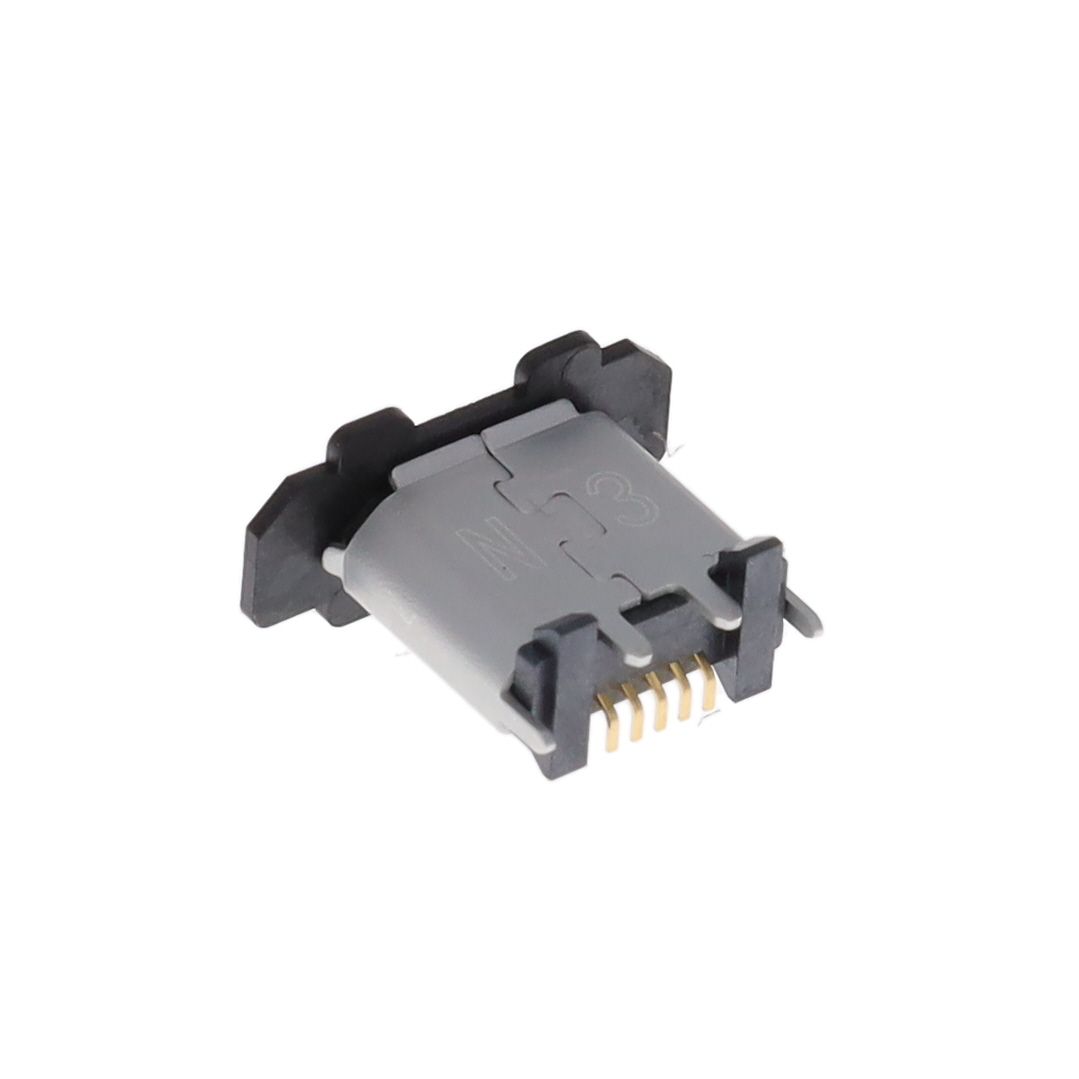

ZX80-B-5P(31)

Hirose Electric Co LtdIn Stock: 2717ZX80-B-5P(31) Datasheet

Parametric EquivalentRFQ

USB3140-30-0230-0-C

GCTIn Stock: 748USB3140-30-0230-0-C Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the ZX80-B-5P(01) are qualified based on strict electrical and mechanical parameter alignment. The following parameters define substitution eligibility:

Critical Parameters (Must Match):

• Connector Type: USB - micro B
• Number of Contacts: 5
• Gender: Receptacle
• Specifications: USB 2.0
• Mounting Type: Surface Mount, Through Hole
• Mounting Feature: Vertical
• Termination: Solder
• Current Rating: 1.8A minimum
• Voltage - Rated: 30VAC
• Mating Cycles: 10,000
• Shielding: Shielded
• Contact Finish: Gold
• Shell/Shielding Material: Steel, Stainless
• Insulation Color: Black
• Moisture Sensitivity Level: 1 (Unlimited)

Allowable Variations:

• Operating Temperature range may extend beyond the original specification
• Product Status may differ (Active substitutes are preferred for obsolete parts)
• Packaging format may vary
• Material Flammability Rating and RoHS compliance may be enhanced

Parameter Comparison

Engineering Selection Recommendations

ZX80-B-5P(31) is the primary substitute for ZX80-B-5P(01). Both parts are manufactured by Hirose Electric Co Ltd and share identical electrical and mechanical specifications. The ZX80-B-5P(31) carries Active product status and ROHS3 compliance certification, providing enhanced regulatory support for new designs and production continuity. Packaging is available in Cut Tape and Digi-Reel formats with 2,657 units in stock.

USB3140-30-0230-0-C is a cross-manufacturer equivalent produced by GCT. This part meets all critical electrical and mechanical parameters with identical current rating, voltage, and mating cycle specifications. The operating temperature range extends to -25°C minimum, providing enhanced low-temperature performance. ROHS3 compliance and REACH Unaffected status are certified. Packaging is available in Tape & Reel format with 705 units in stock. Cross-manufacturer substitution requires design validation for mechanical fit and PCB layout compatibility.

Frequently Asked Questions (FAQ)

Q: Can ZX80-B-5P(31) be used as a direct replacement for ZX80-B-5P(01)?

A: Yes. Both parts are identical in electrical and mechanical specifications, including connector type, contact count, current rating, voltage rating, and mating cycles. The primary difference is product status: ZX80-B-5P(31) is Active while ZX80-B-5P(01) is Obsolete. ZX80-B-5P(31) is the recommended substitute for production continuity.

Q: What are the differences between the Hirose ZX80-B-5P(31) and GCT USB3140-30-0230-0-C?

A: Both parts meet identical USB 2.0 micro B receptacle specifications with 5 contacts, 1.8A current capacity, and 10,000 mating cycles. The GCT part operates at -25°C minimum temperature versus -30°C for the Hirose part. Mechanical fit and PCB layout compatibility must be validated for cross-manufacturer substitution due to potential dimensional variations in connector body and pin positioning.

Q: Are there packaging format differences between substitute parts?

A: Yes. ZX80-B-5P(01) and ZX80-B-5P(31) are available in Cut Tape and Digi-Reel packaging. USB3140-30-0230-0-C is supplied in Tape & Reel format. Packaging selection depends on assembly process requirements and volume specifications.

Q: Do all substitute parts meet RoHS compliance?

A: ZX80-B-5P(31) and USB3140-30-0230-0-C are both ROHS3 Compliant. RoHS status for ZX80-B-5P(01) is not specified in the provided data.

Q: What is the minimum current rating for substitution?

A: The minimum current rating for substitution is 1.8A. All qualified substitutes meet or exceed this specification.

Q: Can the operating temperature range be extended with substitute parts?

A: The GCT USB3140-30-0230-0-C operates at -25°C minimum versus -30°C for the original part. If the application requires -30°C operation, the Hirose ZX80-B-5P(31) is the appropriate choice. If -25°C minimum is acceptable, both substitutes are qualified.
