UT0W01419SH Equivalent & Substitute Parts

Part Overview

The UT0W01419SH is a 19-position circular connector receptacle housing manufactured by Souriau-Sunbank by Eaton. This panel-mount component features a bayonet lock fastening mechanism, shielded design, and IP67/IP69K ingress protection rating. The part is classified as Active product status and is RoHS3 compliant. Equivalent and substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when specific application requirements necessitate alternative specifications.

Substiute Parts

UT0W01419SH

Souriau-Sunbank by EatonIn Stock: 1048UT0W01419SH Datasheet

Current PartRFQ

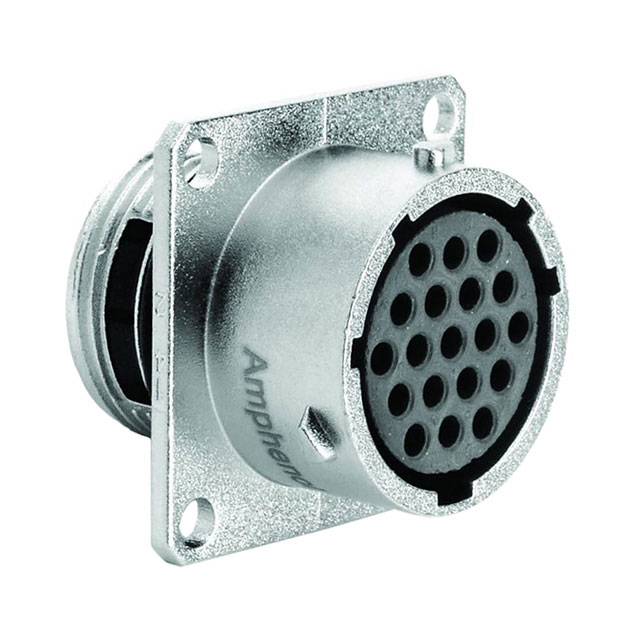

RT0W01419SNH

Amphenol Sine Systems CorpIn Stock: 890RT0W01419SNH Datasheet

SimilarRFQ

RT0W01419SNH-K

Amphenol Sine Systems CorpIn Stock: 1064RT0W01419SNH-K Datasheet

SimilarRFQ

RT0W01419SNH03

Amphenol Sine Systems CorpIn Stock: 1152RT0W01419SNH03 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the UT0W01419SH is determined by strict equivalence across the following critical parameters: 19-position configuration, shell size 14-19, crimp contact type with size 20, panel-mount flange design, bayonet lock fastening, normal orientation, zinc alloy shell with nickel finish, shielded construction, and operating temperature range of -40°C to 105°C. All substitute parts must maintain these specifications to ensure mechanical and electrical compatibility within the application circuit.

The three identified substitute parts—RT0W01419SNH, RT0W01419SNH-K, and RT0W01419SNH03—are manufactured by Amphenol Sine Systems Corp under the ecomate® RM series. Each substitute maintains the core 19-position receptacle housing configuration with panel-mount flange and bayonet lock fastening. All substitutes are RoHS3 compliant and operate within the specified temperature range.

Parameter Comparison

Engineering Selection Recommendations

All three substitute parts maintain Active product status and full RoHS3 compliance, ensuring regulatory alignment with the primary UT0W01419SH component. The substitutes are functionally equivalent for applications requiring 19-position panel-mount receptacle housings with bayonet lock fastening and crimp contact termination.

RT0W01419SNH provides direct functional equivalence with identical operating temperature range (-40°C to 105°C) and IP67 ingress protection. This substitute is suitable for applications where the primary part is unavailable.

RT0W01419SNH-K includes gold-plated mating contact finish and specifies electrical ratings (7.5A at 150VAC/DC). This variant is appropriate for applications requiring enhanced contact durability or where electrical specifications are critical design parameters.

RT0W01419SNH03 extends the operating temperature range to -40°C to 125°C and includes gasket and O-ring components in the package. This variant is suitable for applications requiring elevated temperature operation or where integrated sealing components reduce assembly complexity.

Frequently Asked Questions (FAQ)

Q: Can RT0W01419SNH be used as a direct replacement for UT0W01419SH?

A: Yes. RT0W01419SNH maintains identical specifications for position count (19), shell size (14-19), contact type (crimp, size 20), mounting configuration (panel-mount flange), fastening mechanism (bayonet lock), and operating temperature range (-40°C to 105°C). Both parts are RoHS3 compliant and Active status.

Q: What is the difference between RT0W01419SNH and RT0W01419SNH-K?

A: RT0W01419SNH-K specifies gold-plated mating contact finish and includes electrical ratings (7.5A, 150VAC/DC). RT0W01419SNH does not specify contact finish or electrical ratings in the provided data. RT0W01419SNH-K is appropriate when enhanced contact performance or documented electrical specifications are required.

Q: Why does RT0W01419SNH03 have a higher operating temperature range?

A: RT0W01419SNH03 operates from -40°C to 125°C compared to the standard -40°C to 105°C range. This extended range accommodates applications requiring higher temperature operation. RT0W01419SNH03 also includes gasket and O-ring components in the package.

Q: Are all substitutes shielded?

A: RT0W01419SNH and RT0W01419SNH03 are specified as shielded. RT0W01419SNH-K does not specify shielding in the provided data. For applications requiring shielded construction, RT0W01419SNH or RT0W01419SNH03 are appropriate selections.

Q: What is the difference in packaging between the main part and substitutes?

A: UT0W01419SH is supplied in Bulk packaging. RT0W01419SNH and RT0W01419SNH-K are supplied in Bulk packaging. RT0W01419SNH03 is supplied in Bag packaging. Packaging differences do not affect functional compatibility.

Q: Do all parts include contacts?

A: No. UT0W01419SH, RT0W01419SNH, and RT0W01419SNH03 are specified as "Contacts Not Included." RT0W01419SNH-K is specified as a receptacle with female sockets but does not explicitly state contact inclusion. Contacts must be sourced separately for all parts.

Q: Are all substitutes RoHS3 compliant?

A: Yes. All three substitute parts—RT0W01419SNH, RT0W01419SNH-K, and RT0W01419SNH03—are RoHS3 compliant, matching the compliance status of the primary UT0W01419SH component.
