UE10-4XT2D2 Equivalent & Substitute Parts

Part Overview

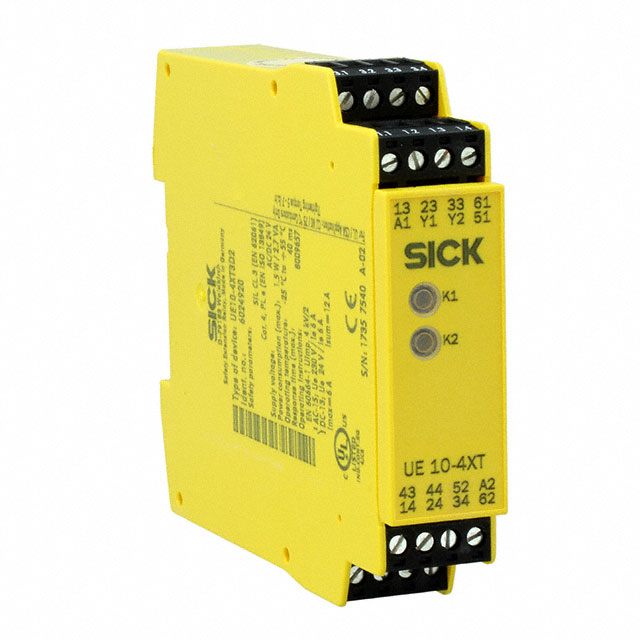

The UE10-4XT2D2 is a safety relay manufactured by SICK, Inc., configured as a 7PST (7 Pole Single Throw) device with 4 Form A and 3 Form B contacts rated at 6A, designed for 24VAC/DC coil operation. This component is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing system maintenance and new installations where legacy components are no longer available.

Substiute Parts

UE10-4XT2D2

SICK, Inc.In Stock: 915UE10-4XT2D2 Datasheet

Current PartRFQ

RLY3-OSSD400

SICK, Inc.In Stock: 762RLY3-OSSD400 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the UE10-4XT2D2 is determined by the following critical parameters:

• Coil Voltage Compatibility: The substitute must operate at 24VDC or 24VAC/DC to maintain circuit compatibility
• Contact Configuration: The substitute must provide equivalent switching capability through Form A (NO) and Form B (NC) contact arrangements
• Current Rating: Minimum 6A contact rating required for load switching
• Mounting Standard: DIN Rail mounting ensures mechanical compatibility with existing enclosure infrastructure
• Switching Voltage Capability: Maximum switching voltage of 230VAC and 300VDC establishes the upper operational envelope
• Termination Interface: Connection method must be compatible with existing wiring infrastructure

The RLY3-OSSD400 meets these substitution criteria as an active product from the same manufacturer, providing equivalent electrical performance within the specified parameter ranges.

Parameter Comparison

Engineering Selection Recommendations

The RLY3-OSSD400 is the designated substitute for the obsolete UE10-4XT2D2. Selection is based on the following engineering criteria:

• Product Status: The RLY3-OSSD400 maintains active manufacturing status, ensuring long-term availability and supply chain continuity
• Regulatory Compliance: Both components share identical ECCN (EAR99) and HTSUS (8536.41.0020) classifications, maintaining export and tariff compliance
• Electrical Equivalence: The substitute operates at 24VDC within the 24VAC/DC envelope of the original part, with matching 6A contact rating and compatible switching voltage specifications
• Mechanical Compatibility: DIN Rail mounting on both components ensures direct installation compatibility within existing enclosure designs
• Contact Material Consistency: Identical silver and gold contact materials preserve electrical performance characteristics

Frequently Asked Questions (FAQ)

Q: Can the RLY3-OSSD400 directly replace the UE10-4XT2D2 in existing installations?

A: Direct mechanical replacement is possible due to identical DIN Rail mounting. However, the contact configuration differs: the UE10-4XT2D2 provides 7PST (4 Form A, 3 Form B) contacts, while the RLY3-OSSD400 provides 4 Form A contacts only. Circuit redesign may be required if Form B (NC) contacts are essential to system operation.

Q: What is the difference in operate time between these components?

A: The UE10-4XT2D2 operates in 70 ms, while the RLY3-OSSD400 operates in 12 ms. The faster response time of the substitute may affect timing-sensitive circuits and should be evaluated against system requirements.

Q: Are there termination compatibility considerations?

A: The UE10-4XT2D2 uses screw terminals, while the RLY3-OSSD400 uses spring terminals. Existing wiring connections must be adapted to the spring terminal interface of the substitute.

Q: Does the RLY3-OSSD400 support 24VAC operation?

A: The RLY3-OSSD400 is specified for 24VDC operation only. If the original circuit requires 24VAC capability, alternative substitutes must be evaluated.

Q: What is the inventory status of these components?

A: The UE10-4XT2D2 has 900 pieces in stock as new original inventory. The RLY3-OSSD400 has 749 pieces in stock as new original inventory.
