U86-D1627-10121 Equivalent & Substitute Parts

Part Overview

The U86-D1627-10121 is a 40-position (20 x 2) SFP+ receptacle connector with integrated cage manufactured by Amphenol ICC. This connector features press-fit through-hole termination, right-angle mounting, and gold-plated contacts. The product is currently obsolete, making identification of functionally equivalent alternatives necessary for design updates, legacy system maintenance, and inventory planning. Active substitute components are available from industry-standard manufacturers with comparable electrical and mechanical specifications.

Substiute Parts

U86-D1627-10121

Amphenol ICC (Commercial Products)In Stock: 977U86-D1627-10121 Datasheet

Current PartRFQ

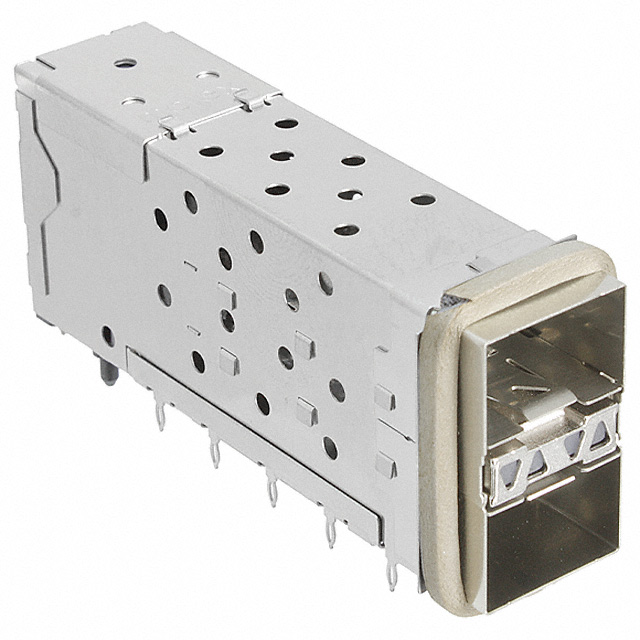

0760905001

MolexIn Stock: 11570760905001 Datasheet

SimilarRFQ

2007492-5

TE Connectivity AMP ConnectorsIn Stock: 30772007492-5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute components are selected based on strict equivalence in the following critical parameters:

1. Connector Type & Configuration: SFP+ receptacle with integrated cage, ganged (2x1) configuration
2. Position Count & Arrangement: 40 positions in 20 x 2 matrix
3. Mounting Specification: Through-hole, press-fit termination, right-angle orientation
4. Contact Metallurgy: Gold finish with 30.0µin (0.76µm) thickness
5. Compliance & Environmental: RoHS compliance and MSL rating

The two identified substitutes—Molex 0760905001 and TE Connectivity 2007492-5—meet all core electrical and mechanical parameters required for direct functional replacement in applications originally designed for the U86-D1627-10121.

Parameter Comparison

Engineering Selection Recommendations

Molex 0760905001: This part is active and represents a direct functional equivalent with additional EMI shielding and ROHS3 compliance certification. It is suitable for applications requiring enhanced environmental protection or more stringent compliance documentation. Available in tray packaging.

TE Connectivity 2007492-5: This part maintains active production status with RoHS compliance and integrated EMI shielding. It accommodates high-volume procurement requirements with bulk packaging and the largest available inventory position (3,029 units).

Both substitute components provide equivalent electrical performance and mechanical fit for the obsolete U86-D1627-10121 connector. Selection between substitutes should be based on compliance documentation requirements, packaging needs, and supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can Molex 0760905001 and TE Connectivity 2007492-5 be used interchangeably with the U86-D1627-10121?

A: Yes, both substitutes are functionally equivalent. All three components share identical connector type (SFP+ with cage), position count (40/20x2), mounting configuration (through-hole, right-angle), and termination method (press-fit). Electrical and mechanical compatibility is assured.

Q: What is the significance of EMI shielding in the Molex and TE Connectivity alternatives?

A: The EMI shielding feature in the 0760905001 and 2007492-5 provides additional electromagnetic interference protection beyond the original U86-D1627-10121 specification. This enhancement maintains backward compatibility while offering improved signal integrity for sensitive applications.

Q: How do the RoHS compliance certifications differ among these parts?

A: The U86-D1627-10121 meets RoHS compliance. The Molex 0760905001 carries ROHS3 certification (a more recent revision standard), while TE Connectivity 2007492-5 maintains RoHS compliance. All three satisfy hazardous substance restriction requirements for commercial applications.

Q: What packaging options are available for production implementation?

A: Molex 0760905001 is supplied in tray packaging, suitable for automated assembly processes. TE Connectivity 2007492-5 is supplied in bulk packaging, appropriate for high-volume manufacturing operations. Selection depends on assembly line configuration and handling requirements.

Q: Is contact finish thickness a critical selection criterion?

A: Contact finish thickness of 30.0µin (0.76µm) is specified for the U86-D1627-10121 and Molex 0760905001. TE Connectivity 2007492-5 contact finish thickness is not specified but the gold plating specification is standard for SFP+ connectors in this category and maintains equivalent performance.
