TPC11CGPC0 Equivalent & Substitute Parts

Part Overview

The TPC11CGPC0 is a pushbutton switch manufactured by TE Connectivity ALCOSWITCH Switches, configured as a Standard Panel Mount, Rear SPST-NO (Single Pole Single Throw - Normally Open) switch with Off-Momentary function. The switch is rated for 0.4VA at 20V AC/DC with a circular 4.83mm diameter panel cutout and round plunger actuator. This component is Active in product status with 949 pieces currently in stock.

Equivalent and substitute parts are identified to support procurement flexibility, inventory management, and supply chain continuity when the primary part number becomes unavailable or when alternative sourcing is required.

Substiute Parts

TPC11CGPC0

TE Connectivity ALCOSWITCH SwitchesIn Stock: 1004TPC11CGPC0 Datasheet

Current PartRFQ

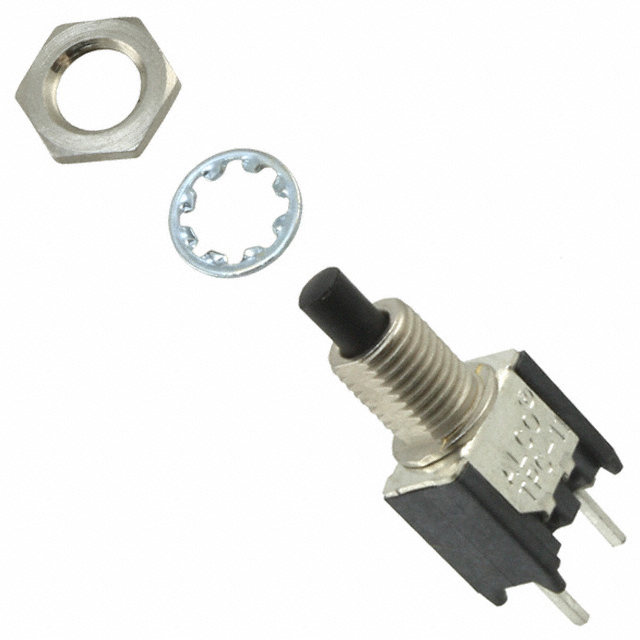

1825098-1

TE Connectivity ALCOSWITCH SwitchesIn Stock: 25471825098-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TPC11CGPC0 are identified based on electrical and mechanical parameter equivalence within the TE Connectivity ALCOSWITCH Switches product family. The substitution logic is based on the following critical parameters:

Electrical Equivalence Criteria:

• Circuit configuration: SPST-NO
• Current rating: 0.4VA (AC/DC)
• Voltage rating: 20V AC and 20V DC

Mechanical Equivalence Criteria:

• Mounting type: Panel Mount, Rear
• Actuator type: Round, Plunger
• Panel cutout dimensions: Circular - 4.83mm Dia
• Termination style: PC Pin

Environmental & Compliance Criteria:

• Operating temperature range: -30°C ~ 65°C
• Electrical life: 100,000 Cycles
• RoHS3 Compliance

Parts meeting all these parameters are classified as direct substitutes and can be used interchangeably in applications requiring the TPC11CGPC0.

Parameter Comparison

Engineering Selection Recommendations

The part 1825098-1 is a direct electrical and mechanical equivalent to the TPC11CGPC0. Both components are manufactured by TE Connectivity ALCOSWITCH Switches and share identical specifications across all critical parameters including circuit configuration, voltage and current ratings, mounting configuration, actuator design, and panel cutout dimensions.

Both parts maintain Active product status and comply with ROHS3 requirements, ensuring long-term availability and regulatory compliance. The 1825098-1 offers higher current inventory availability (2526 pieces versus 949 pieces), which may provide supply chain advantages for high-volume applications.

Selection between these parts should be based on procurement lead times, inventory availability, and supply chain requirements, as they are functionally and mechanically interchangeable.

Frequently Asked Questions (FAQ)

Q: Can 1825098-1 be used as a direct replacement for TPC11CGPC0?

A: Yes. The 1825098-1 meets all electrical and mechanical specifications of the TPC11CGPC0, including SPST-NO circuit configuration, 0.4VA current rating at 20V AC/DC, Panel Mount Rear mounting, round plunger actuator, and 4.83mm circular panel cutout. Both components are electrically and mechanically interchangeable.

Q: Are there any differences in compliance or certifications between these parts?

A: Both parts are ROHS3 compliant and maintain Active product status. The primary difference is the Moisture Sensitivity Level (MSL) designation: TPC11CGPC0 is listed as Not Applicable, while 1825098-1 is rated MSL 1 (Unlimited). This does not affect substitution compatibility.

Q: What are the key parameters that determine substitution eligibility?

A: Substitution eligibility is determined by matching the following parameters: SPST-NO circuit configuration, 0.4VA current rating, 20V AC/DC voltage rating, Panel Mount Rear mounting type, round plunger actuator, 4.83mm circular panel cutout, PC Pin termination, -30°C to 65°C operating temperature range, and 100,000 cycle electrical life rating.

Q: Is inventory availability a factor in component selection?

A: Inventory availability is a practical consideration for procurement planning. The 1825098-1 currently has 2526 pieces in stock compared to 949 pieces for TPC11CGPC0. However, both parts are in stock and available for immediate procurement.

Q: Can these switches be used in AC and DC applications?

A: Yes. Both the TPC11CGPC0 and 1825098-1 are rated for 0.4VA at 20V for both AC and DC applications, making them suitable for either power source within the specified voltage and current limits.

Q: What is the panel cutout requirement for installation?

A: Both parts require a circular panel cutout of 4.83mm diameter for Panel Mount Rear installation. This dimension is identical across both components.
