Part Overview

The Samtec TFM-130-12-S-D-A-P-TR is an active, surface mount rectangular header connector from the Tiger Eye™ TFM series, designed for board-to-board or cable interface applications. It features 60 positions across 2 rows with a 1.27mm pitch, shrouded design, and gold-plated phosphor bronze contacts. This component is RoHS3 compliant and offered in Tape & Reel packaging. Engineers may seek alternative models due to inventory management, packaging preference, or mechanical fitment such as insulation height.

Substiute Parts

TFM-130-12-S-D-A-P-TR

Samtec Inc.In Stock: 1285TFM-130-12-S-D-A-P-TR Datasheet

Current PartRFQ

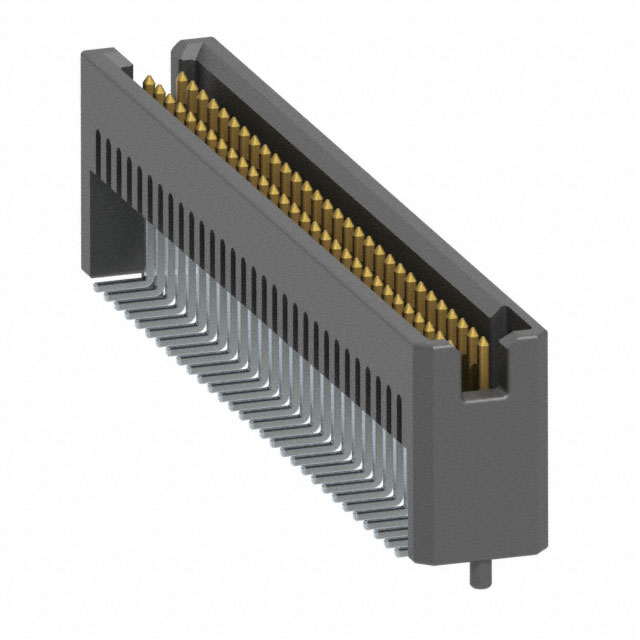

TFM-130-22-S-D-A-K-TR

Samtec Inc.In Stock: 1191TFM-130-22-S-D-A-K-TR Datasheet

SimilarRFQ

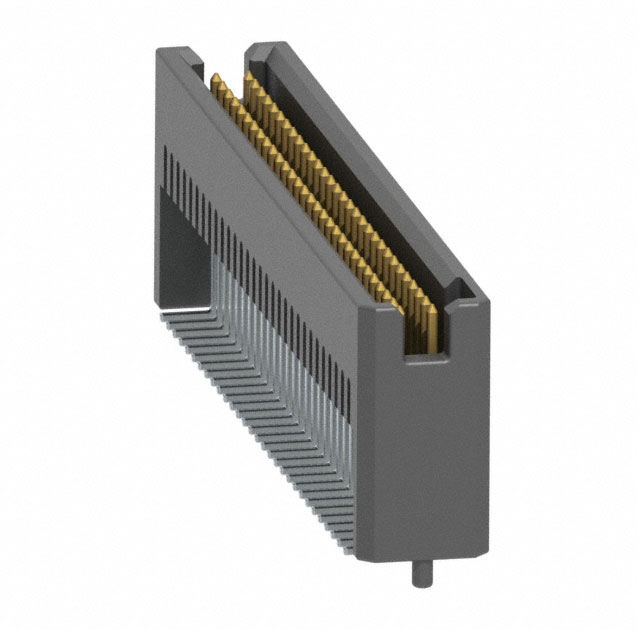

TFM-130-32-S-D-A-P-TR

Samtec Inc.In Stock: 1501TFM-130-32-S-D-A-P-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for rectangular connectors in this category are determined strictly by matching the key parameters that define electrical, mechanical, and compliance characteristics. These parameters include: series, connector type, contact type, pitch, number of positions, number of rows, row spacing, mounting type, termination method, shrouding, contact finish and thickness, contact material, insulation material, electrical ratings, and environmental compliance. Variations may occur in insulation height and packaging, as observed from the provided data.

Parameter Comparison

Engineering Selection Recommendations

All listed parts are active and RoHS3 compliant with a Moisture Sensitivity Level of 1 (Unlimited). The substitute parts TFM-130-22-S-D-A-K-TR and TFM-130-32-S-D-A-P-TR meet the same certifications and compliance as the primary part number TFM-130-12-S-D-A-P-TR. Selection can be based on inventory availability, desired insulation height, or packaging format, as applicable to the assembly process.

Frequently Asked Questions (FAQ)

Q1: What are the key criteria for substituting rectangular connectors like TFM-130-12-S-D-A-P-TR?
Critical substitution criteria include series, connector type, contact type, pitch (1.27mm), number of positions, number of rows, mounting type, termination method, contact and insulation materials, current and voltage ratings, and RoHS compliance. Variations in insulation height and packaging may be significant for some mechanical or logistical requirements.

Q2: Are the substitute parts electrically and mechanically equivalent to the main part?
According to the parameters provided, all substitute parts maintain identical electrical and mechanical specifications except insulation height and packaging.

Q3: How should insulation height differences be considered in part selection?
Insulation height (dimension from PCB surface to top of housing) varies across the provided parts (e.g., 7.37mm for TFM-130-12-S-D-A-P-TR, 9.14mm for TFM-130-22-S-D-A-K-TR, 11.05mm for TFM-130-32-S-D-A-P-TR). Selection should be guided by the mechanical fit and stacking requirements of the application.

Q4: Does the packaging affect electrical or mechanical compatibility?
Packaging (Tape & Reel vs. Cut Tape) affects assembly line requirements and feeding mechanisms but does not impact connector compatibility or function for the listed parts.

Q5: Are all substitute parts current RoHS3 compliant and unrestricted regarding moisture sensitivity?
All shown parts are RoHS3 compliant and have a Moisture Sensitivity Level (MSL) of 1, suitable for unrestricted manufacturing and board assembly environments.
