SS-79100-005 Equivalent & Substitute Parts

Part Overview

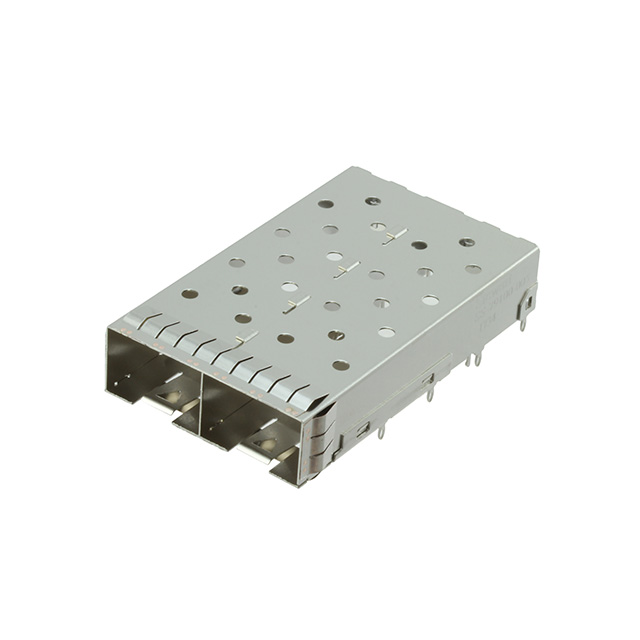

The SS-79100-005 is a Position SFP+ Cage connector in a ganged (1 x 2) configuration, manufactured by Stewart Connector. This pluggable connector features press-fit termination and right-angle mounting for through-hole applications. The connector is actively produced and maintains ROHS3 compliance with MSL 1 rating, making it suitable for high-density optical transceiver applications requiring reliable mechanical and electrical interfaces.

Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when supply chain optimization is required, provided all electrical and mechanical parameters remain within specification.

Substiute Parts

SS-79100-005

Stewart ConnectorIn Stock: 1016SS-79100-005 Datasheet

Current PartRFQ

2007263-1

TE Connectivity AMP ConnectorsIn Stock: 10002852007263-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 2007263-1 (TE Connectivity AMP Connectors) qualifies as a direct equivalent based on the following matching parameters:

• Connector Type: SFP+ (identical)
• Connector Style: Cage, Ganged (1 x 2) (identical)
• Mounting Type: Through Hole, Right Angle (identical)
• Termination Method: Press-Fit (identical)
• Features: EMI Shielded (identical)
• RoHS Status: ROHS3 Compliant (identical)
• Moisture Sensitivity Level: 1 (Unlimited) (identical)
• Packaging: Tray (identical)
• ECCN Classification: EAR99 (identical)
• HTSUS Code: 8538.90.8180 (identical)

These parameters define the functional and mechanical interchangeability criteria for SFP+ cage connectors in press-fit through-hole applications.

Parameter Comparison

Engineering Selection Recommendations

Both the SS-79100-005 and 2007263-1 are actively produced components with identical electrical and mechanical specifications. Selection between these parts should be based on:

• Availability and lead time requirements
• Supply chain logistics and inventory positioning
• Manufacturer qualification status within your organization
• Cost considerations and volume pricing structures

Both parts maintain ROHS3 compliance and MSL 1 rating, ensuring compatibility with standard PCB assembly processes and long-term storage without moisture sensitivity constraints.

Frequently Asked Questions (FAQ)

Q: Can 2007263-1 be used as a direct replacement for SS-79100-005?

A: Yes. Both parts share identical specifications for connector type (SFP+), style (ganged 1 x 2 cage), mounting configuration (through-hole right-angle), termination method (press-fit), and compliance ratings (ROHS3, MSL 1). No design modifications are required.

Q: Are there any differences in PCB footprint or mounting hole patterns?

A: The provided specifications confirm identical mounting type (through-hole right-angle) and connector style (ganged 1 x 2 cage). Footprint compatibility is assured based on these matching parameters.

Q: What is the significance of the ganged (1 x 2) configuration?

A: This indicates the connector accommodates two SFP+ modules in a single mechanical assembly, enabling dual-port optical transceiver applications on a single PCB location.

Q: Do both parts require the same assembly process?

A: Yes. Both parts use press-fit termination for through-hole mounting, requiring identical assembly equipment and process parameters.

Q: Are there any compliance or regulatory differences between the two parts?

A: No. Both parts carry identical ROHS3 compliance, EAR99 ECCN classification, and HTSUS code 8538.90.8180, with MSL 1 moisture sensitivity rating.
