SN8S-400JB Common Mode Choke Equivalent & Substitute Parts

Part Overview

The SN8S-400JB is a 46 µH Common Mode Choke (CMC) manufactured by KEMET, designed for power line filtering applications. This through-hole component operates at 2A maximum current with 70mOhm DC resistance and is rated for -25°C to 105°C operating temperature. The part maintains Active product status with full RoHS3 compliance and REACH unaffected designation. Substitute parts are identified when inventory constraints, lead time requirements, or design flexibility necessitate alternative components that maintain equivalent electrical and mechanical performance within specified parameters.

Substiute Parts

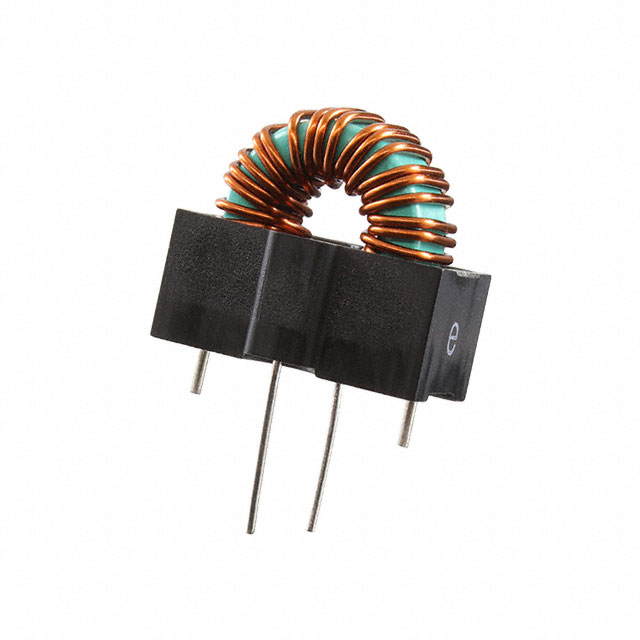

SN8S-400JB

KEMETIn Stock: 983SN8S-400JB Datasheet

Current PartRFQ

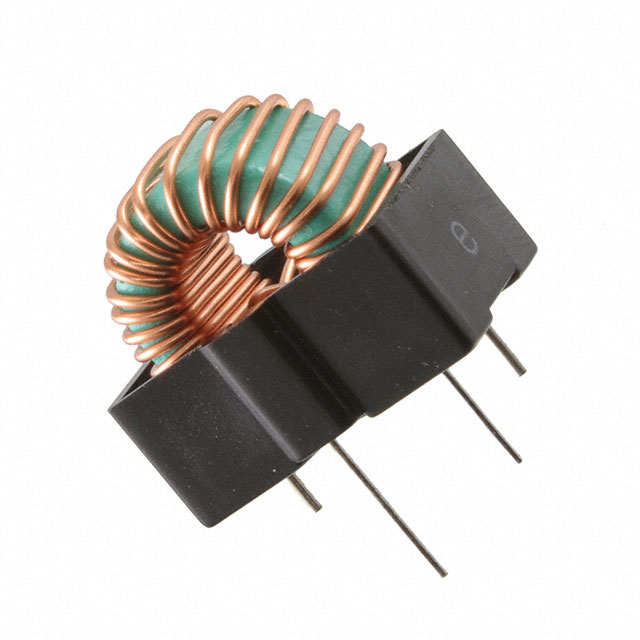

SN8D-300JB

KEMETIn Stock: 889SN8D-300JB Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SN8S-400JB is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Current Rating (Maximum): 2A
• DC Resistance (Maximum): 70mOhm
• Number of Lines: 2
• Mounting Type: Through Hole
• Operating Temperature Range: -25°C to 105°C
• Package / Case: Horizontal, 4 PC Pin
• RoHS Status: ROHS3 Compliant

Allowable Variance:

• Inductance @ 100 kHz: ±2.2% (45–47 µH range acceptable)

The SN8D-300JB qualifies as a parametric equivalent substitute because it maintains all mandatory matching parameters and operates within the allowable inductance variance band (45 µH vs. 46 µH nominal).

Parameter Comparison

Engineering Selection Recommendations

Both the SN8S-400JB and SN8D-300JB are Active products manufactured by KEMET with identical RoHS3 compliance and REACH unaffected status. Selection between these parts is based on:

Availability and Lead Time: The SN8S-400JB maintains 964 pieces in stock, while the SN8D-300JB maintains 819 pieces in stock. Either part may be selected based on procurement timeline and inventory requirements.

Electrical Performance: The 1 µH inductance difference (46 µH vs. 45 µH) represents a 2.2% variance, which falls within standard engineering tolerance for common mode choke applications. Both parts deliver identical current handling (2A), DC resistance (70mOhm), and thermal performance (-25°C to 105°C).

Mechanical Compatibility: Both parts are identical in mounting configuration (through-hole), package type (horizontal, 4 PC pin), and physical dimensions (0.854" maximum height). Direct board-level substitution is supported without layout modification.

Regulatory Compliance: Both parts maintain equivalent compliance certifications (ROHS3, REACH unaffected, EAR99 ECCN classification, 8504.50.8000 HTSUS code).
