SCA121T-D03 Equivalent & Substitute Parts

Part Overview

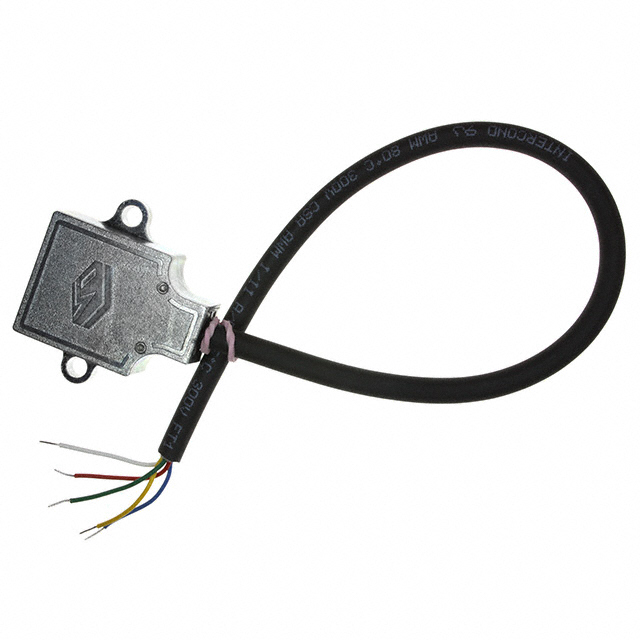

The SCA121T-D03 is a motion sensor inclinometer module manufactured by Murata Electronics, designed to measure inclination across X and Y axes with a ±90° measuring range. This module features analog voltage output and operates across a wide voltage supply range of 7V to 35V, making it suitable for industrial inclination measurement applications.

The SCA121T-D03 is classified as obsolete. Due to its discontinued status, identifying equivalent substitute parts is necessary to maintain system functionality and ensure continued availability for new designs or replacement requirements.

Substiute Parts

SCA121T-D03

Murata ElectronicsIn Stock: 881SCA121T-D03 Datasheet

Current PartRFQ

G-NSDOG2-003

TE Connectivity Measurement SpecialtiesIn Stock: 10473G-NSDOG2-003 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SCA121T-D03 is determined by the following critical parameters:

• Measuring Range: Must be ±90° to maintain functional equivalence
• Axis Configuration: Must support X and Y axis measurement
• Output Type: Must be voltage output for direct signal compatibility
• Interface: Must be analog to ensure system integration without additional signal conditioning
• Package Type: Must be module format for mechanical and electrical compatibility
• Operating Temperature Range: Must encompass or exceed -40°C to 85°C
• Voltage Supply Range: Must accommodate the system's power supply specifications

The G-NSDOG2-003 from TE Connectivity Measurement Specialties meets all critical substitution criteria and is classified as an active product with current manufacturing support.

Parameter Comparison

Engineering Selection Recommendations

The G-NSDOG2-003 is the qualified substitute for the SCA121T-D03 based on the following engineering criteria:

Functional Equivalence: Both sensors provide identical measuring range (±90°), dual-axis configuration (X, Y), and analog voltage output interface. This ensures direct functional replacement without system redesign.

Product Status and Availability: The G-NSDOG2-003 is an active product with documented inventory of 10,400 units, providing long-term supply assurance compared to the obsolete SCA121T-D03.

Compliance and Environmental Standards: The G-NSDOG2-003 carries ROHS3 compliance certification and demonstrates superior moisture sensitivity characteristics (MSL 1 versus MSL 3), indicating enhanced reliability in humid environments.

Operating Parameters: The substitute operates within the original temperature range (-40°C to 85°C) and voltage supply window (8V to 30V overlaps with 7V to 35V). The increased bandwidth (100Hz versus 18Hz) provides enhanced frequency response capability without compromising the original application requirements.

Frequently Asked Questions (FAQ)

Q: Can the G-NSDOG2-003 directly replace the SCA121T-D03 without circuit modifications?

A: Yes. Both sensors share identical measuring range (±90°), dual-axis configuration, analog voltage output, and module packaging. The voltage supply range of the substitute (8V to 30V) overlaps with the original specification (7V to 35V). Verify your system operates within 8V to 30V to ensure full compatibility.

Q: What is the significance of the bandwidth difference between the two sensors?

A: The SCA121T-D03 operates at 18Hz bandwidth while the G-NSDOG2-003 operates at 100Hz. Higher bandwidth indicates faster response to inclination changes. For applications requiring measurement of static or slowly changing inclination, both sensors are functionally equivalent. Applications requiring faster dynamic response benefit from the substitute's increased bandwidth.

Q: Why is the G-NSDOG2-003 preferred despite the voltage supply range difference?

A: The substitute's voltage range (8V to 30V) encompasses the typical operating window of most industrial systems. The original range extended to 7V and 35V, representing edge-case specifications. The substitute's active product status, ROHS3 compliance, and superior moisture sensitivity rating (MSL 1) provide long-term reliability and regulatory compliance advantages that outweigh the marginal voltage range difference.

Q: Are there any packaging or mechanical considerations for substitution?

A: Both sensors are supplied in module packaging format. Verify mechanical dimensions and connector specifications with the respective datasheets to ensure physical fit within your application enclosure and compatibility with existing mounting and connection infrastructure.

Q: What compliance certifications should I verify before implementation?

A: The G-NSDOG2-003 is ROHS3 compliant and carries REACH Vendor Undefined status. Confirm these certifications align with your end-product regulatory requirements before finalizing the substitution decision.
