PMNF1-4F-C Equivalent & Substitute Parts

Part Overview

The PMNF1-4F-C is a red M4 stud spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 18-22 AWG wire. This insulated terminal features a tin-plated copper contact with polyamide nylon insulation and serrated termination for secure wire attachment. The product is classified as obsolete, necessitating identification of active equivalent components that maintain functional compatibility for applications requiring M4 stud spade terminals with matching electrical and mechanical specifications.

Substiute Parts

PMNF1-4F-C

Panduit CorpIn Stock: 720PMNF1-4F-C Datasheet

Current PartRFQ

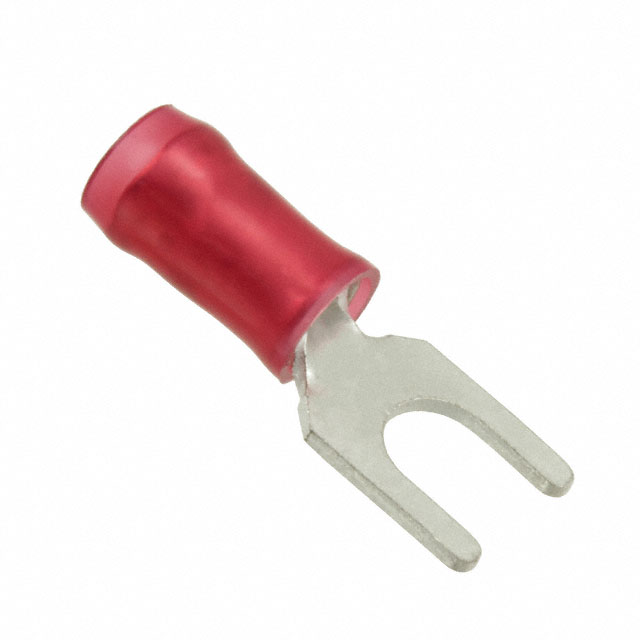

130517

TE Connectivity AMP ConnectorsIn Stock: 83146130517 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PMNF1-4F-C is determined by compatibility across the following critical parameters:

Primary Compatibility Criteria:

• M4 stud size (mechanical interface requirement)
• Crimp termination method (assembly process compatibility)
• Copper contact material with tin finish (electrical conductivity and corrosion resistance)
• Polyamide nylon insulation (environmental and thermal performance)
• Red color designation (circuit identification standard)
• Free hanging in-line mounting configuration (installation method)

Wire Gauge Consideration: The PMNF1-4F-C accommodates 18-22 AWG wire. Substitute components must support this range or a range that encompasses it. The TE Connectivity AMP Connectors part 130517 supports 16-22 AWG, which includes the full 18-22 AWG range of the original part, maintaining compatibility for all specified wire gauges.

Dimensional Tolerance: While dimensional variations exist between the main part and substitute (outer width, overall length, insulation diameter, and tongue opening), these differences do not preclude functional substitution when the M4 stud interface and crimp termination specifications are maintained.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: TE Connectivity 130517

The TE Connectivity AMP Connectors part number 130517 is the qualified substitute for the obsolete PMNF1-4F-C. This substitution is based on the following engineering factors:

Functional Compatibility: Both components share identical M4 stud interface specifications, crimp termination methodology, copper contact material with tin plating, polyamide nylon insulation, and red color designation. The 130517 supports a wire gauge range of 16-22 AWG, which fully encompasses the 18-22 AWG specification of the original part.

Product Status and Availability: The PMNF1-4F-C is classified as obsolete with limited inventory (691 pieces). The 130517 is an active product with substantial inventory availability (83,094 pieces), ensuring long-term supply chain continuity and future procurement capability.

Compliance and Certifications: The 130517 carries RoHS Compliant certification and maintains the same ECCN (EAR99) and HTSUS (8536.90.4000) classifications as the original part. Both components share identical export control and tariff classifications.

Dimensional Considerations: While the 130517 exhibits dimensional variations in outer width, overall length, insulation diameter, and tongue opening, these differences are within acceptable tolerances for M4 stud spade terminal applications. The substitute maintains the critical M4 stud interface and crimp termination specifications required for functional equivalence.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 130517 directly replace the Panduit PMNF1-4F-C in existing applications?

A: Yes. Both components share the same M4 stud interface, crimp termination method, contact material (copper with tin finish), insulation material (polyamide nylon), and color designation (red). The 130517 supports the full 18-22 AWG wire gauge range specified for the PMNF1-4F-C.

Q: What is the significance of the wire gauge difference (18-22 AWG vs. 16-22 AWG)?

A: The PMNF1-4F-C is rated for 18-22 AWG wire. The 130517 supports 16-22 AWG, which includes the entire 18-22 AWG range. This expanded range does not compromise compatibility; it provides additional flexibility for applications using 16 or 17 AWG wire if required.

Q: Are there dimensional differences between these components?

A: Yes. The 130517 has a smaller outer width (0.280" vs. 0.320"), shorter overall length (0.819" vs. 0.890"), narrower insulation diameter range (0.106"-0.142" vs. 0.148"), and smaller tongue opening (0.169" vs. 0.230"). These dimensional variations do not affect functional compatibility for M4 stud applications.

Q: Does the 130517 meet the same compliance standards as the PMNF1-4F-C?

A: Both components share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications. The 130517 carries RoHS Compliant certification, providing additional environmental compliance assurance.

Q: What is the packaging difference between these parts?

A: The PMNF1-4F-C packaging specification is not provided. The 130517 is supplied in bulk packaging, which is standard for high-volume terminal applications.

Q: Is the serrated termination feature of the PMNF1-4F-C present in the 130517?

A: The serrated termination feature is specified for the PMNF1-4F-C but is not documented in the 130517 specification. Both components utilize crimp termination methodology, which is the primary functional requirement for wire attachment.

Q: What is the Moisture Sensitivity Level (MSL) of the substitute part?

A: The 130517 has an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling. The PMNF1-4F-C MSL is listed as Not Applicable.
