Part Overview

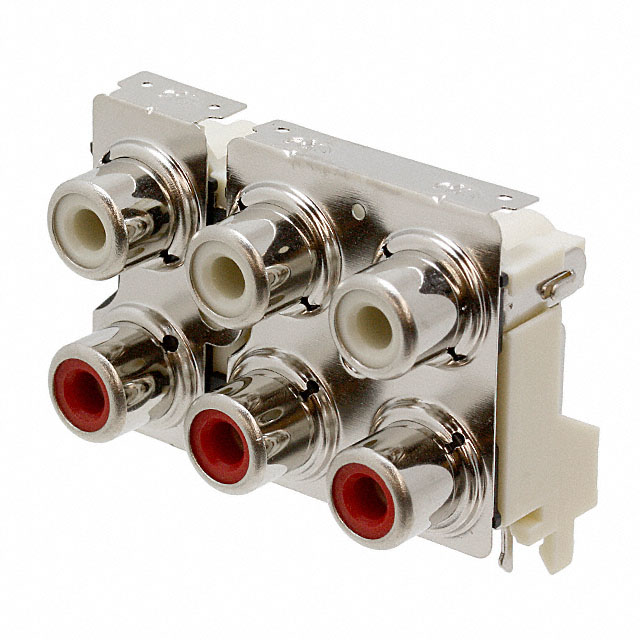

The PJRAS3X2S01 is a 3.20mm ID, 9.00mm OD (RCA) Phono Jack Mono Connector manufactured by Switchcraft Inc. in the Barrel Connectors category. This right-angle solder-terminated connector features shielding and a grounding tab, designed for mono audio applications requiring reliable phono jack connectivity. The part is Active status and currently maintains 1064 units in new original stock inventory.

Identifying equivalent and substitute parts is necessary when primary inventory is unavailable, when bulk packaging requirements differ, or when procurement timelines require alternative sourcing from the same manufacturer's product line.

Substiute Parts

PJRAS3X2S01

Switchcraft Inc.In Stock: 1169PJRAS3X2S01 Datasheet

Current PartRFQ

PJRAS3X2S01X

Switchcraft Inc.In Stock: 2203PJRAS3X2S01X Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The PJRAS3X2S01X qualifies as a direct substitute based on identical electrical and mechanical parameters. Substitution is valid when the following criteria are met:

• Connector Type: Phono (RCA) Jack (identical)
• Gender: Female (identical)
• Signal Lines: Mono (identical)
• Industry Recognized Mating Diameter: 3.20mm ID, 9.00mm OD (RCA) (identical)
• Number of Positions/Contacts: 6 Sets of 2 Conductors, 9 Contacts (identical)
• Mounting Type: Through Hole, Right Angle (identical)
• Termination: Solder (identical)
• Shielding: Shielded (identical)
• Operating Temperature Range: -25°C ~ 85°C (identical)
• Voltage Rating: 34VAC/DC (identical)
• Current Rating: 2 A (identical)
• Contact Material Plating: Tin (identical)
• Body Material: Copper Alloy (identical)
• Housing Material: Acrylonitrile Butadiene Styrene (ABS) (identical)
• RoHS Status: ROHS3 Compliant (identical)

The primary difference between PJRAS3X2S01 and PJRAS3X2S01X is packaging format: PJRAS3X2S01 is supplied in standard packaging, while PJRAS3X2S01X is supplied in bulk packaging. Both parts are manufactured by Switchcraft Inc. within the PJR series and maintain Active product status.

Parameter Comparison

Engineering Selection Recommendations

Both PJRAS3X2S01 and PJRAS3X2S01X are Active status products manufactured by Switchcraft Inc. and maintain ROHS3 compliance. Selection between these parts should be based on packaging requirements and inventory availability:

• Select PJRAS3X2S01 when standard packaging is required or for lower-volume applications.
• Select PJRAS3X2S01X when bulk packaging is required or for higher-volume production runs. The PJRAS3X2S01X currently maintains higher inventory availability at 2139 units compared to 1064 units for PJRAS3X2S01.

Both parts are electrically and mechanically identical, ensuring direct interchangeability in circuit designs and PCB layouts. No design modifications are required when substituting between these part numbers.

Frequently Asked Questions (FAQ)

Q: Are PJRAS3X2S01 and PJRAS3X2S01X electrically identical?

A: Yes. Both parts are identical in all electrical parameters including voltage rating (34VAC/DC), current rating (2 A), and operating temperature range (-25°C ~ 85°C). They differ only in packaging format.

Q: Can PJRAS3X2S01X be used as a direct replacement for PJRAS3X2S01 in production?

A: Yes. The PJRAS3X2S01X is a direct substitute. All mechanical dimensions, contact configurations, mounting specifications, and termination methods are identical. No PCB layout or design changes are required.

Q: What is the difference between standard and bulk packaging for these connectors?

A: Standard packaging is typically used for smaller order quantities and individual component handling. Bulk packaging is designed for high-volume manufacturing environments where components are used in larger quantities. The connector itself remains unchanged.

Q: Are both parts RoHS compliant?

A: Yes. Both PJRAS3X2S01 and PJRAS3X2S01X are ROHS3 compliant and suitable for applications requiring RoHS certification.

Q: Which part should I select if I need immediate availability?

A: PJRAS3X2S01X currently maintains higher inventory at 2139 units compared to 1064 units for PJRAS3X2S01. If bulk packaging meets your requirements, PJRAS3X2S01X offers better availability.
