PC367NJ0000F Equivalent & Substitute Parts

Part Overview

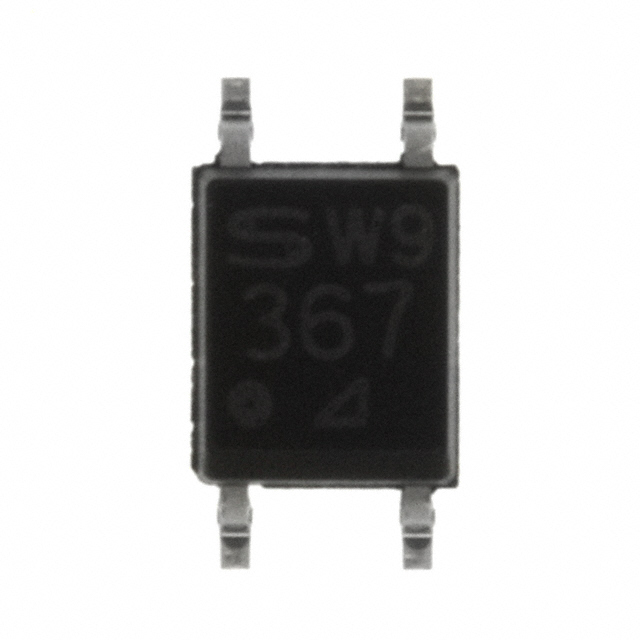

The PC367NJ0000F is an optoisolator with transistor output manufactured by SHARP/Socle Technology. This component provides 3750Vrms isolation voltage in a 4-Mini-Flat surface mount package, designed for applications requiring galvanic isolation with single-channel transistor switching capability. The part is currently active in production with full inventory availability. Substitute parts are identified when equivalent electrical performance and mechanical compatibility can be maintained across the specified parameter range.

Substiute Parts

PC367NJ0000F

SHARP/Socle TechnologyIn Stock: 2374PC367NJ0000F Datasheet

Current PartRFQ

IS181GB

Isocom Components 2004 LTDIn Stock: 587889IS181GB Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PC367NJ0000F is determined by the following critical parameters:

• Isolation voltage of 3750Vrms or higher
• Single-channel transistor output configuration
• Maximum output voltage rating of 80V or greater
• Maximum output current of 50mA or greater per channel
• Vce saturation maximum of 200mV or lower
• Rise and fall time specifications of 4µs and 3µs or faster
• 4-SMD Gull Wing surface mount package compatibility
• Operating temperature range that encompasses the application requirement
• ROHS3 compliance for regulatory alignment

The IS181GB from Isocom Components meets these substitution criteria across all specified electrical and mechanical parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the PC367NJ0000F and IS181GB are active production components with ROHS3 compliance. The IS181GB provides an extended operating temperature range of -55°C to 100°C compared to the PC367NJ0000F range of -30°C to 100°C, making it suitable for applications requiring operation at lower temperatures. Both components maintain identical electrical performance across isolation voltage, output ratings, switching characteristics, and package configuration. Selection between these parts should be based on specific application temperature requirements and component availability.

Frequently Asked Questions (FAQ)

Q: Can IS181GB replace PC367NJ0000F in all applications?

A: IS181GB is electrically and mechanically compatible with PC367NJ0000F when operating within the PC367NJ0000F temperature range of -30°C to 100°C. If your application requires operation below -30°C, IS181GB supports temperatures down to -55°C and is the appropriate choice.

Q: Are the package dimensions identical between these parts?

A: Both components use 4-SMD Gull Wing surface mount packages. Mechanical compatibility is maintained for PCB layout and assembly processes.

Q: What is the difference in current transfer ratio specifications?

A: PC367NJ0000F specifies current transfer ratio at 500µA input current, while IS181GB specifies it at 5mA input current. Both maintain minimum 100% transfer ratio and maximum ratings of 500% and 600% respectively, ensuring functional compatibility across typical operating conditions.

Q: Do both parts meet the same regulatory requirements?

A: Both PC367NJ0000F and IS181GB are ROHS3 compliant with identical ECCN and HTSUS classifications, meeting equivalent regulatory standards.

Q: Which part should be selected for new designs?

A: Selection depends on application temperature requirements. For standard industrial temperature ranges, either part is suitable. For applications requiring extended low-temperature operation, IS181GB is the appropriate selection.
