P10-14F-L Spade Terminal Connector Equivalent & Substitute Parts

Part Overview

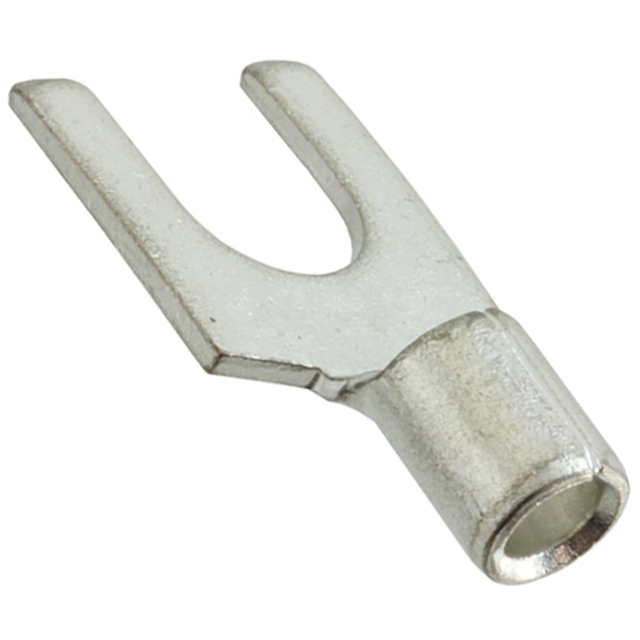

The P10-14F-L is a 1/4 stud spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 10-12 AWG wire. This non-insulated copper terminal features a brazed seam and serrated termination for secure wire attachment. The part is classified as obsolete, necessitating identification of active equivalent alternatives for ongoing procurement and system maintenance. Substitute parts must maintain compatibility with the 10-12 AWG wire gauge specification and crimp termination method while accommodating different stud sizes.

Substiute Parts

P10-14F-L

Panduit CorpIn Stock: 938P10-14F-L Datasheet

Current PartRFQ

P10-10F-L

Panduit CorpIn Stock: 2105P10-10F-L Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the P10-14F-L is based on the following critical parameters that must remain constant across equivalent parts:

Mandatory Compatibility Parameters:

• Wire gauge: 10-12 AWG
• Termination method: Crimp
• Contact material: Copper
• Contact finish: Tin
• Insulation type: Non-Insulated
• Features: Brazed seam and serrated termination
• Mounting type: Free Hanging (In-Line)
• Series: Pan-Term®
• Manufacturer: Panduit Corp

Variable Parameters Defining Substitution:

• Stud/tab size (1/4 stud vs. 10 stud)
• Overall dimensions (length and width)
• Tongue inside opening dimensions

The P10-10F-L serves as an active substitute for the obsolete P10-14F-L. Both parts share the same base product number (P10), wire gauge specification, termination method, and material composition. The primary difference is the stud size: the P10-10F-L features a 10 stud configuration compared to the 1/4 stud of the main part, resulting in proportionally smaller overall dimensions and tongue opening.

Parameter Comparison

Engineering Selection Recommendations

The P10-10F-L is the active equivalent substitute for the obsolete P10-14F-L. Both components maintain identical electrical and functional specifications for 10-12 AWG wire termination, including crimp termination method, copper contact material with tin finish, and brazed seam construction with serrated termination features.

Selection of the P10-10F-L requires verification that the 10 stud configuration accommodates the mechanical mounting requirements of the target application. The substitute part features reduced overall dimensions and a smaller tongue inside opening (0.200" versus 0.270") compared to the main part, reflecting the smaller stud size.

Both parts maintain full compliance with ROHS3 and REACH regulatory requirements, with identical ECCN and HTSUS classifications. The P10-10F-L is currently in active production with confirmed inventory availability, ensuring reliable procurement for replacement and new applications.

Frequently Asked Questions (FAQ)

Q: Can the P10-10F-L directly replace the P10-14F-L in all applications?

A: The P10-10F-L shares identical electrical specifications and termination characteristics with the P10-14F-L. Substitution is valid when the 10 stud configuration is mechanically compatible with the target mounting location. The reduced overall dimensions and smaller tongue opening of the P10-10F-L must accommodate the equipment design.

Q: What is the primary difference between these two parts?

A: The stud size differs: P10-14F-L features a 1/4 stud, while P10-10F-L features a 10 stud. This results in proportionally smaller overall length (0.780" versus 0.890"), width (0.370" versus 0.500"), and tongue inside opening (0.200" versus 0.270").

Q: Are both parts suitable for 10-12 AWG wire?

A: Yes. Both the P10-14F-L and P10-10F-L are specified for 10-12 AWG wire gauge with identical crimp termination requirements.

Q: What is the regulatory compliance status of the substitute part?

A: The P10-10F-L is ROHS3 compliant and REACH unaffected, matching the compliance profile of the main part. Both components carry EAR99 ECCN classification and 8536.90.4000 HTSUS code.

Q: Why is the P10-14F-L listed as obsolete?

A: The P10-14F-L is classified as obsolete by Panduit Corp. The P10-10F-L is the active production equivalent within the Pan-Term® series, with confirmed ongoing inventory availability.

Q: Are there packaging differences between these parts?

A: The P10-14F-L is listed with unspecified packaging, while the P10-10F-L is supplied in bulk packaging. Confirm packaging requirements with procurement specifications for your application.
